Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: LJ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10Marshine Power is dedicated to supporting transmission projects with a comprehensive range of OEM products manufactured to the highest standards under ISO 9001:2008 certification. Our product lineup includes Tubular Gin Poles, Hydraulic Cable Pullers,
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Weight (Kg): |
140-190 |
Product Name: |
Cable Pulling Winch |
Overall Dimension (mm): |
870X620X650 |
Diameter Of Drum Groove (mm): |
300-500 |
Power (HP): |
9 |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
90.00cm * 80.00cm * 60.00cm |
Package Gross Weight: |
228.000kg |
Lead Time: |
30 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) |
Type: |
Take-up Machine |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Weight (Kg): |
140-190 |
Product Name: |
Cable Pulling Winch |
Overall Dimension (mm): |
870X620X650 |
Diameter Of Drum Groove (mm): |
300-500 |
Power (HP): |
9 |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
90.00cm * 80.00cm * 60.00cm |
Package Gross Weight: |
228.000kg |
Lead Time: |
30 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) |
Type: |
Take-up Machine |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

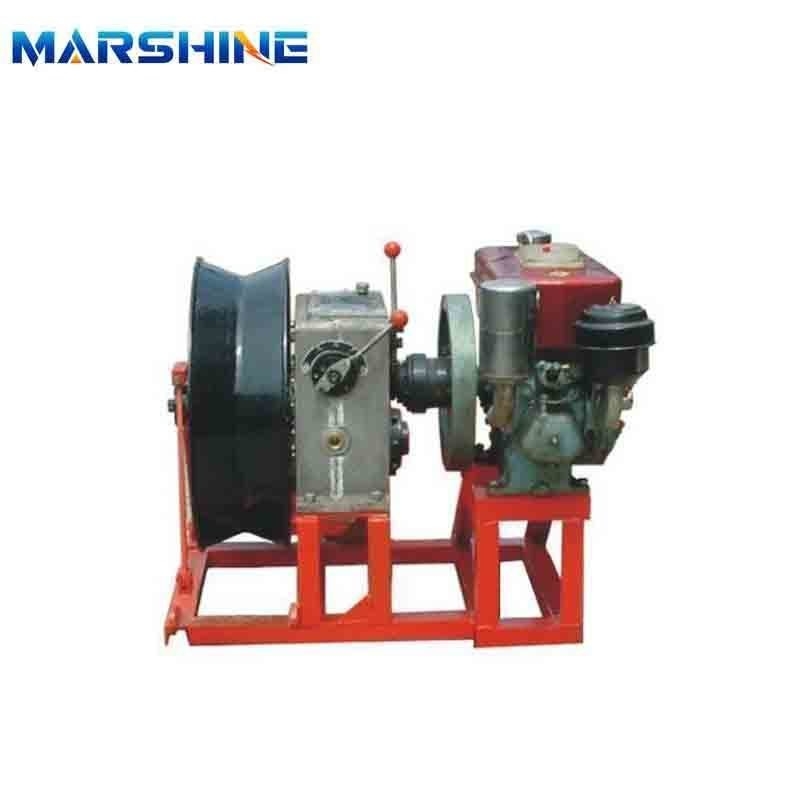

Diesel Engine Powered Cable Pulling Winch Machine
Technical Parameters
| Item Number | 08192 | 08193 | 08194 | ||
| Model | LJ-300B | LJ-500A | LJ-500B | ||
| Diameter of Drum Groove (mm) | Φ300 | Φ500 | Φ500 | ||
| Engine | Type | Honda GX270 gasoline engine | R175A diesel engine | Honda GX270 gasoline engine | |
| Power (hp) | 9 | 6 | 9 | ||
| Rotational Speed (rpm) | 3600 | 2600 | 3600 | ||
| Traction Force (kN) / Pulling Speed (m/min) | Slow | 25/8.5 | 16/10.5 | 16/13.6 | |
| Medium | 15/13.4 | 10/16.6 | 10/21.5 | ||
| Fast | 6/33.5 | 4/40.8 | 4/53.6 | ||
| Reverse | -/9.6 | -/11.8 | -/15.3 | ||
| Overall Dimension (mm) | 870×620×650 | 920×700×710 | 900×700×710 | ||
| Weight (kg) | 140 | 190 | 150 | ||
Marshine Power is dedicated to supporting transmission projects with a comprehensive range of OEM products manufactured to the highest standards under ISO 9001:2008 certification. Our product lineup includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. Trusted by customers in over 50 countries worldwide, our products ensure reliability and efficiency in transmission tasks.
We understand the diverse needs of our customers, offering customization options for specialized items such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories are available without minimum order quantity requirements, providing flexibility to cater to specific project needs.
Whether you require technical assistance or have specific product requirements, our team is here to help. Please feel free to reach out to us for support with any technical or product-related inquiries. Thank you for considering Marshine Power as your partner in transmission solutions.
