Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SJZ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$500-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box Or Customer Requirement |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Type: |
Belt Drive Winch |
Certification: |
ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box Or Customer Requirement |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Type: |
Belt Drive Winch |
Certification: |
ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |

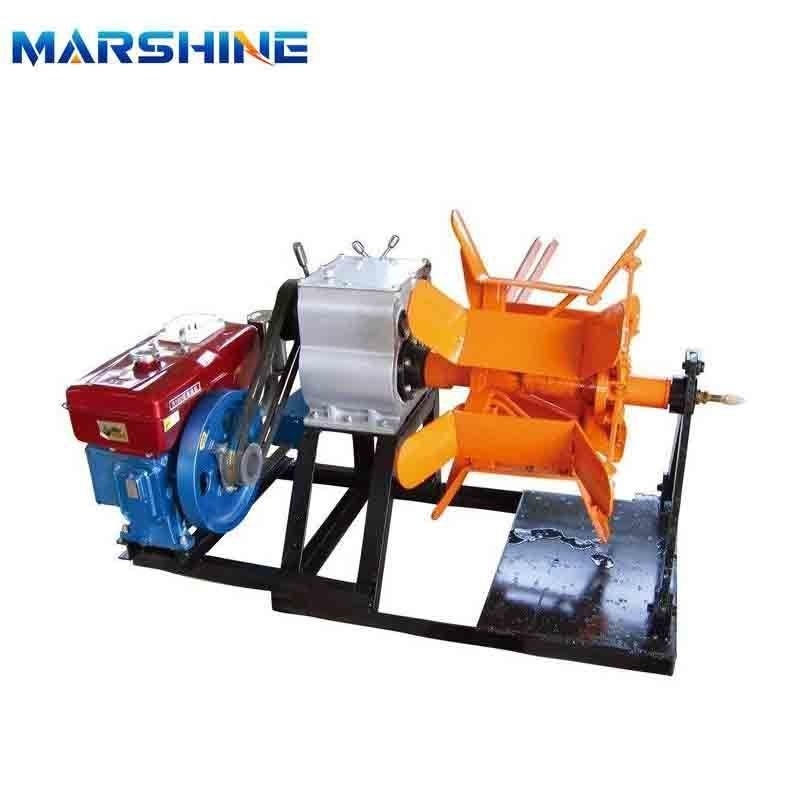

Wire Take Up Device Wire Lifting Up Winch Machine
This wire take-up machine is designed for the retrieval of old conducting wire or overhead ground wire, as well as for the installation of new overhead earth wires.
Purpose: It is utilized for the removal of old conductors and the erection of overhead earth wires.
Additional Information: The outer side of the drum can be detached for added convenience.
Main Specifications
| Item Number | 08151 | 08152 |
|
| Model | SJZ10B | SJZ10C |
|
| Engine | Type | Honda GX160 gasoline engine | Z170F diesel engine |
| Power (hp) | 5.5 | 4 |
|
| Rotational Speed (rpm) | 3600 | 2600 |
|
| Max. Take-up Force (kN) | 13.2 | 10.9 |
|
| Take-up Speed (m/min) | 9.8~80 | 10.5~85.4 |
|
| Reel Capacity (m) | LGJ95 | 600 | 600 |
| LGJ120 | 460 | 460 |
|
| LGJ185 | 320 | 320 |
|
| Weight (kg) | 136 | 165 |
|
| Overall Dimension (m) | 1.2×0.85×0.95 | 1.2×0.85×0.95 |
|
Marshine Power offers an extensive range of transmission support equipment, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. Our products are all OEM and manufactured to meet professional standards in compliance with ISO 9001:2008. With a global distribution network spanning over 50 countries, we ensure reliable solutions for transmission projects worldwide.
We provide customization options for specialized items such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories are available without any minimum order quantity requirement.
Whether you need assistance with technical issues or have specific product requirements, please don't hesitate to contact us. We are dedicated to providing the support you need. Thank you for considering Marshine Power.
