Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SJZ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$500-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
Specification: |
4-7kw |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
100.00cm * 60.00cm * 50.00cm |
Package Gross Weight: |
165.000kg |
Lead Time: |
45 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
Specification: |
4-7kw |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
100.00cm * 60.00cm * 50.00cm |
Package Gross Weight: |
165.000kg |
Lead Time: |
45 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

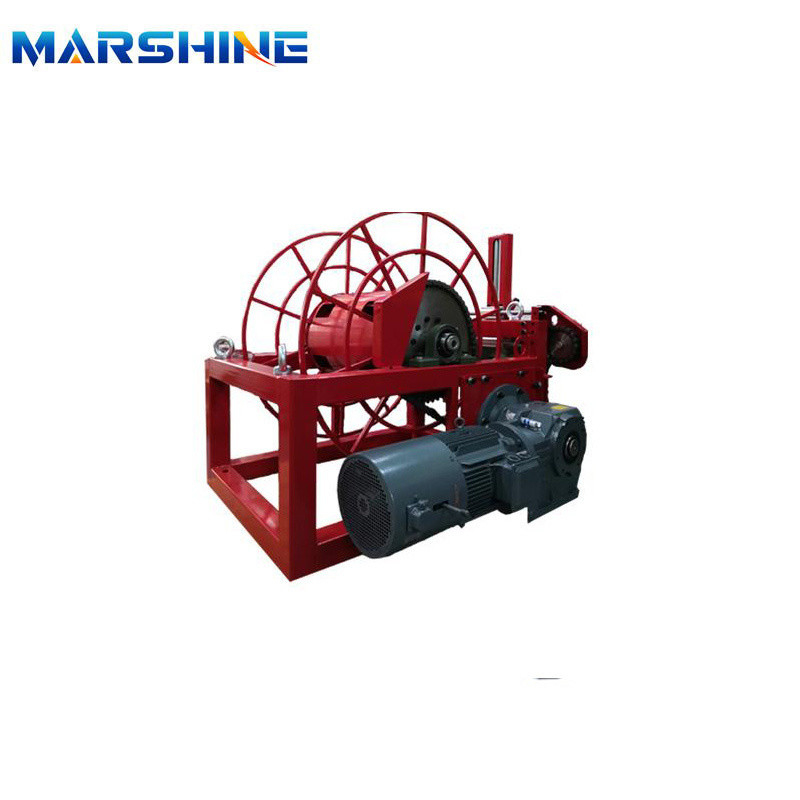

MARSHINE Motorised Wire Cable Take-up Winch Machine
This wire take-up machine is designed to efficiently recycle old conducting wires or overhead ground wires. Its primary function is to withdraw old conductors or install overhead earth wires.
Key Uses:
- Withdrawal of old conductors.
- Installation of overhead earth wires.
Additional Information:
- The outer side of the drum is detachable for easy access and maintenance.
Main Specifications
| Item Number | 08151 | 08152 |
|
| Model | SJZ10B | SJZ10C |
|
| Engine | Type | Honda GX160 gasoline engine | Z170F diesel engine |
| Power (hp) | 5.5 | 4 |
|
| Rotational Speed (rpm) | 3600 | 2600 |
|
| Max. Take-up Force (kN) | 13.2 | 10.9 |
|
| Take-up Speed (m/min) | 9.8~80 | 10.5~85.4 |
|
| Reel Capacity (m) | LGJ95 | 600 | 600 |
| LGJ120 | 460 | 460 |
|
| LGJ185 | 320 | 320 |
|
| Weight (kg) | 136 | 165 |
|
| Overall Dimension (m) | 1.2×0.85×0.95 | 1.2×0.85×0.95 |
|
Marshine Power is your reliable partner for Transmission projects, offering a wide range of OEM products manufactured to meet ISO 9001:2008 standards. Our lineup includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. These products have gained trust and recognition across more than 50 countries worldwide for their quality and reliability.
We understand the diverse needs of our customers, which is why we offer customization options for items such as emergency restoration towers and crossing structures. Moreover, our safety tools and accessories are available without minimum order quantity requirements, ensuring flexibility and convenience for your projects.
Whether you require technical assistance or have specific product requirements, our team is ready to assist you. Feel free to reach out to us for any inquiries or support. Thank you for considering Marshine Power as your partner for Transmission projects.
