Ningbo Marshine Power Technology Co.,Ltd sales@marshine.net 86-13777009159
Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SJZ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$500-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
120.00cm * 85.00cm * 95.00cm |
Package Gross Weight: |
165.000kg |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
120.00cm * 85.00cm * 95.00cm |
Package Gross Weight: |
165.000kg |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

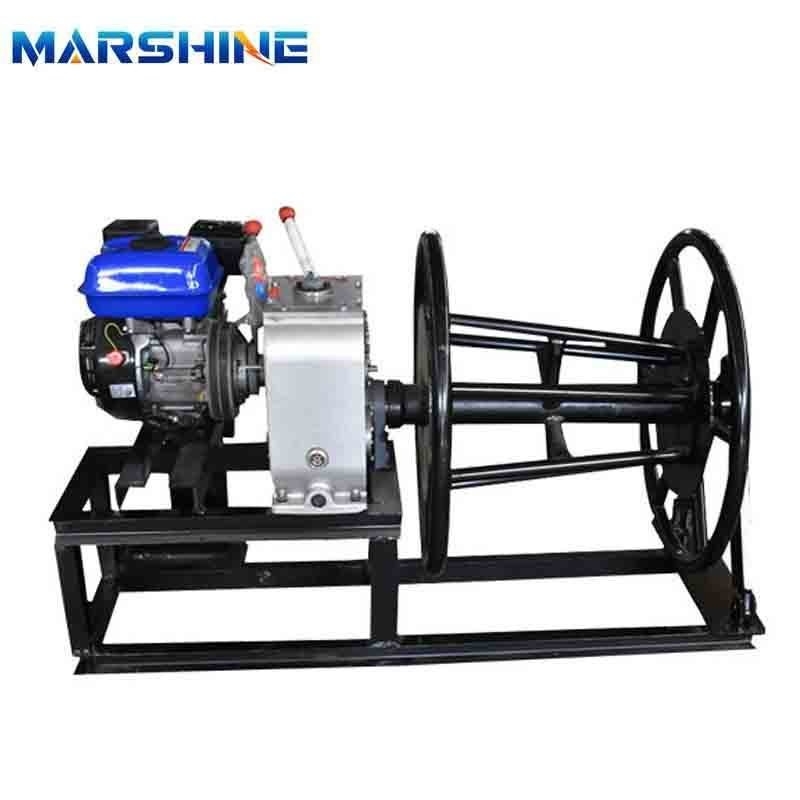

5 Ton Gasoline Engine Wire Rope Take up Pulling Winch for Stringing
This wire take-up machine is designed for the recycling of either old conducting wire or overhead ground wire.
Applications: It is utilized for the removal of old conductors or the installation of overhead earth wires.
Additional Information: The outer part of the drum is removable.
Main Specifications
| Item Number | 08151 | 08152 |
|
| Model | SJZ10B | SJZ10C |
|
| Engine | Type | Honda GX160 gasoline engine | Z170F diesel engine |
| Power (hp) | 5.5 | 4 |
|
| Rotational Speed (rpm) | 3600 | 2600 |
|
| Max. Take-up Force (kN) | 13.2 | 10.9 |
|
| Take-up Speed (m/min) | 9.8~80 | 10.5~85.4 |
|
| Reel Capacity (m) | LGJ95 | 600 | 600 |
| LGJ120 | 460 | 460 |
|
| LGJ185 | 320 | 320 |
|
| Weight (kg) | 136 | 165 |
|
| Overall Dimension (m) | 1.2×0.85×0.95 | 1.2×0.85×0.95 |
|
