Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: GP1400A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$500-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Item Number: |
08181 |
Overall Dimension (M): |
2.82X1.33X0.7 |
Weight (Kg): |
470 |
Max. Pulling Speed Of Tractor (M/Min): |
80 |
Max. Tension Force Of Steel Wire Rope (N: |
1000 |
Transport Package: |
Carton Box |
Specification: |
2.82X1.33X0.7 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
280.00cm * 135.00cm * 70.00cm |
Package Gross Weight: |
470.000kg |
Type: |
Reel Carrier |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Item Number: |
08181 |
Overall Dimension (M): |
2.82X1.33X0.7 |
Weight (Kg): |
470 |
Max. Pulling Speed Of Tractor (M/Min): |
80 |
Max. Tension Force Of Steel Wire Rope (N: |
1000 |
Transport Package: |
Carton Box |
Specification: |
2.82X1.33X0.7 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
280.00cm * 135.00cm * 70.00cm |
Package Gross Weight: |
470.000kg |
Type: |
Reel Carrier |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

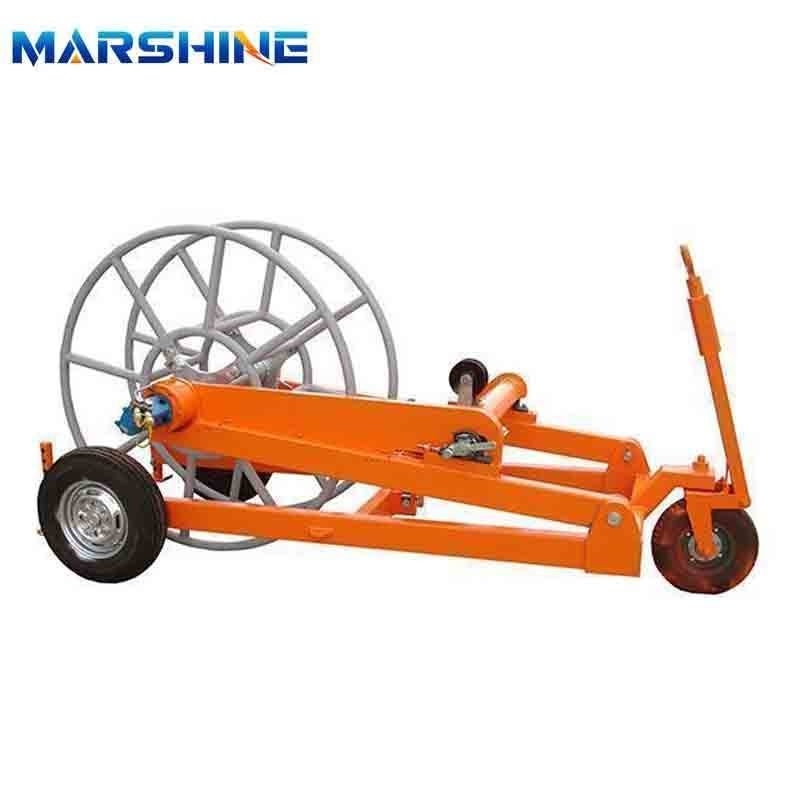

Take-Up Reel Carrier and Carriage
Our take-up reel and carriage operate as independent winding systems, compatible with any hydraulic power unit, particularly suited for the versatile SA-YQZ40/SA-YQZ60 Hydraulic Puller Tensioner. With a generous 15m oil pipe length, seamless connectivity is assured.
Featuring automatic level wind and a reliable negative self-acting hydraulic brake, our take-up reel and carriage ensure smooth operation and enhanced safety. Constructed from welded steel with a protective coating, the frame guarantees durability and longevity. Hydraulic jacks, powered by the same hydraulic source, enable effortless lifting of the reel, while a hydraulic motor directly drives the machine. The multi-plate brake, activated hydraulically through spring action, ensures precise control and braking performance.
Additionally, the GSP1400 steel wire rope reel, a complementary supporting equipment, can be ordered separately under item number 07125C.
Main Specifications
| Item Number | 08181 |
| Max. Pulling Speed of Tractor (m/min) | 80 |
| Max. Tension Force of Steel Wire Rope (N) | 1000 |
| Rated Tension Force of Steel Wire Rope (N) | 750 |
| Rope Capacity (m) | 1000 (Φ15mm steel wire rope) |
| Overall Dimension (m) | 2.82×1.33×0.7 |
| Weight (kg) | 470 |
Marshine Power is your go-to partner for Transmission projects, offering a comprehensive range of OEM products manufactured to ISO 9001:2008 standards. Our lineup includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. These products are trusted by customers in over 50 countries worldwide for their reliability and quality.
We understand that every project is unique, which is why we offer customization options for items like Emergency Restoration Towers and Crossing Structures. Additionally, our safety tools and accessories come with the flexibility of no minimum order quantity, ensuring you have the right equipment for your needs.
Whether you have technical questions or specific product requirements, our team is here to assist you. Feel free to reach out to us for any inquiries or support. Thank you for considering Marshine Power as your partner for Transmission projects.
