Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SX4-VI
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$500-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Max. Traveling Speed (Km/H): |
22 |
Overall Dimension (mm): |
2600X1600X1900 |
Weight (Kg): |
1450 |
Product Name: |
5 Ton Tract Winch |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Engine Power (Kw/Rpm): |
20.6/2200 |
Max. Traveling Speed (Km/H): |
22 |
Overall Dimension (mm): |
2600X1600X1900 |
Weight (Kg): |
1450 |
Product Name: |
5 Ton Tract Winch |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Engine Power (Kw/Rpm): |
20.6/2200 |

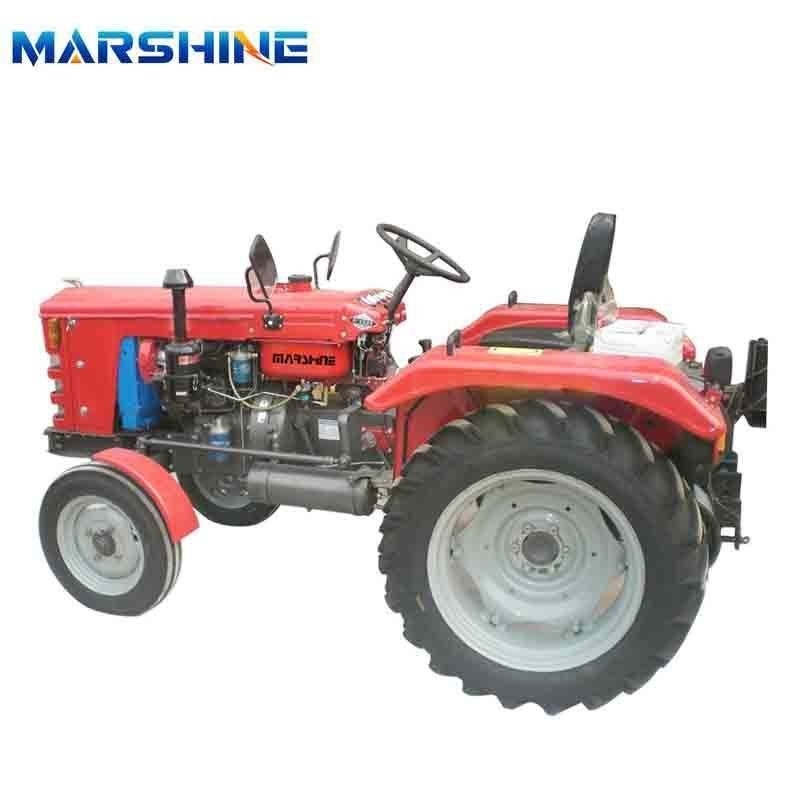

5 Ton Tract Winch for Cable Pulling
Our tractor puller adopts self driving way, which is mostly applied in stringing works. It is suitable for pulling, assembling and tensioning of overhead conductor and OPGW. This machine is a modified product, which comes from the 300 type tractor. It is small and exquisite, providing great mobility and reliable braking.
This tractor puller is adaptable to two types of tractors. The 284 type tractor comes with the four-wheel system. Its engine power is 20.6kW/2200rpm. The item number is 08124. The 304 type also adopts the four-wheel system. Its engine power reaches up to 23.5kW/2350rpm. The item number is 08125.
Feature: Adapted John Deere tractor, slim figure and excellent mobility.
Notes:
1, Four wheel-drive, 20.6kW/2200rpm tractor puller is available (Item number: 08124)
2, Four wheel-drive, 23.5kW/2350rpm tractor puller is available (Item number: 08125)
Main Specifications
| Item Number | 08123 |
| Model | SX4-VI |
| Engine Power (kW/rpm) | 20.6/2200 |
| Bottom Diameter of Drum Groove (mm) | Φ300 |
| Max. Diameter of Steel Wire Rope (mm) | Φ14 |
| Max. Traveling Speed (km/h) | 22 |
| Overall Dimension (mm) | 2600×1600×1900 |
| Weight (kg) | 1450 |
| Gears | 1 | 2 | 3 | Reverse |
| Traction Force (kN) |
40 | 30 | 20 | - |
| Pulling Speed (m/h) |
715 | 1275 | 2270 | 650 |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller, wire rope pulley block, hoisting tackle, Wire rope gripper, Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
