Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: LJ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$1000-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Power (HP): |
9 |
Rotational Speed (Rpm): |
3600 |
Slow: |
25/8.5 |
Medium: |
15/13.4 |
Fast: |
6/33.5 |
Transport Package: |
Carton Box |
Specification: |
3600 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Type: |
Take-up Machine |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Product Name: |
Gasoline Engine Take-up Machine |
Power (HP): |
9 |
Rotational Speed (Rpm): |
3600 |
Slow: |
25/8.5 |
Medium: |
15/13.4 |
Fast: |
6/33.5 |
Transport Package: |
Carton Box |
Specification: |
3600 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Type: |
Take-up Machine |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Product Name: |
Gasoline Engine Take-up Machine |

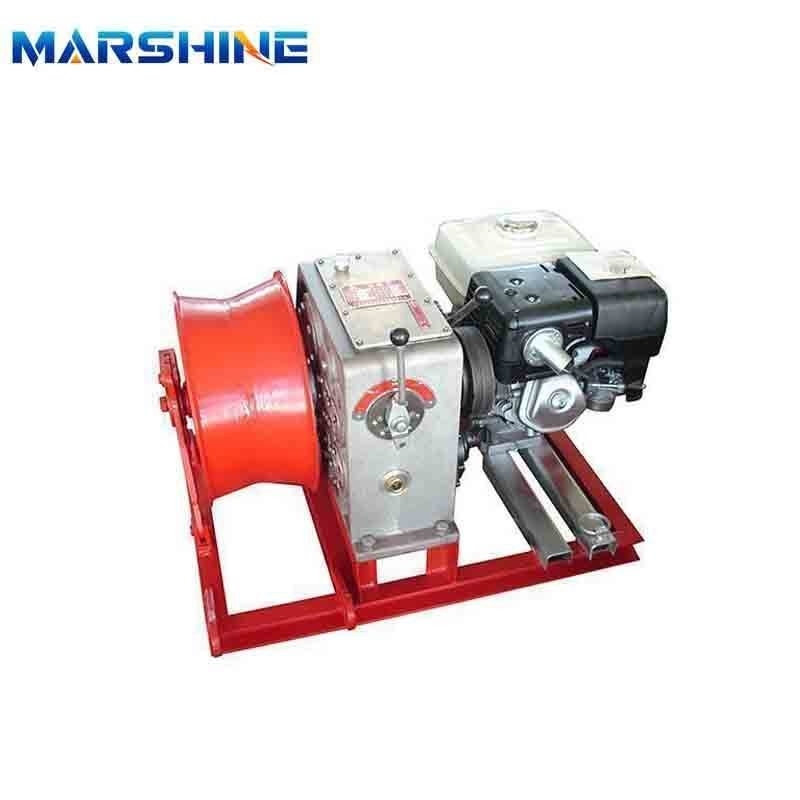

Gasoline Engine Take-Up Machine
Technical Parameters
| Item Number | 08192 | 08193 | 08194 |
||
| Model | LJ-300B | LJ-500A | LJ-500B |
||
| Diameter of Drum Groove (mm) | Φ300 | Φ500 | Φ500 |
||
| Engine | Type | Honda GX270 gasoline engine | R175A diesel engine | Honda GX270 gasoline engine |
|
| Power (hp) | 9 | 6 | 9 |
||
| Rotational Speed (rpm) | 3600 | 2600 | 3600 |
||
| Traction Force (kN) / Pulling Speed (m/min) |
Slow | 25/8.5 | 16/10.5 | 16/13.6 |
|
| Medium | 15/13.4 | 10/16.6 | 10/21.5 |
||
| Fast | 6/33.5 | 4/40.8 | 4/53.6 |
||
| Reverse | -/9.6 | -/11.8 | -/15.3 |
||
| Overall Dimension (mm) | 870×620×650 | 920×700×710 | 900×700×710 |
||
| Weight (kg) | 140 | 190 | 150 |
||
Marshine Power is your trusted partner for transmission projects, offering a comprehensive range of OEM products manufactured to the highest standards under ISO 9001:2008 certification. Our product line includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. These products are widely utilized and sold in over 50 countries worldwide.
We understand the unique needs of our customers, providing customization options for specialized items such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories are available without minimum order quantity requirements, ensuring flexibility to meet specific project needs.
Whether you require technical assistance or have specific product requirements, our team is dedicated to providing support. Please feel free to reach out to us for assistance with any technical or product-related inquiries. Thank you for considering Marshine Power as your partner in transmission solutions.
