Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SJZ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$1000-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
120.00cm * 85.00cm * 95.00cm |
Package Gross Weight: |
170.000kg |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
120.00cm * 85.00cm * 95.00cm |
Package Gross Weight: |
170.000kg |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

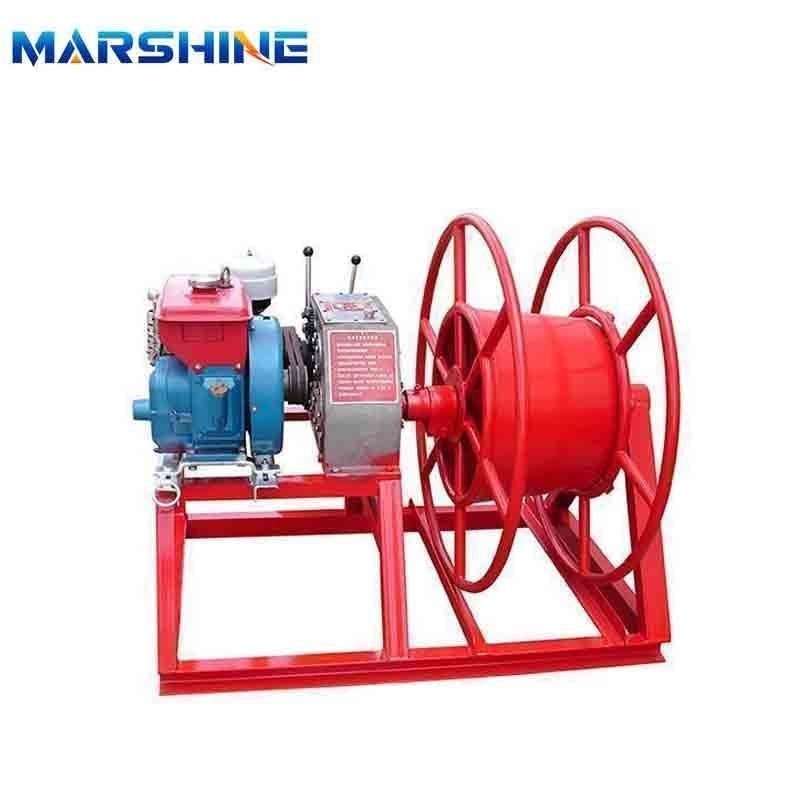

Diesel Gasoline Engine Big Drum Mobile Traction Cable Pulling Winch
This wire take up machine serves to recycle the old conducting wire or the overhead ground wire.
Uses:To withdraw the old conductors or erect the overhead earth wires.
Notes:The outer side of the durm is detachable.
Main Specifications
| Item Number | 08151 | 08152 | |
| Model | SJZ10B | SJZ10C | |
| Engine | Type | Honda GX160 gasoline engine | Z170F diesel engine |
| Power (hp) | 5.5 | 4 | |
| Rotational Speed (rpm) | 3600 | 2600 | |
| Max. Take-up Force (kN) | 13.2 | 10.9 | |
| Take-up Speed (m/min) | 9.8~80 | 10.5~85.4 | |
| Reel Capacity (m) | LGJ95 | 600 | 600 |
| LGJ120 | 460 | 460 | |
| LGJ185 | 320 | 320 | |
| Weight (kg) | 136 | 165 | |
| Overall Dimension (m) | 1.2×0.85×0.95 | 1.2×0.85×0.95 | |
Marshine Power is committed to facilitating transmission projects with our comprehensive range of OEM products, all manufactured to the highest standards in compliance with ISO 9001:2008. Our product portfolio includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. Trusted by customers across more than 50 countries worldwide, our products guarantee reliability and efficiency in transmission tasks.
We understand the diverse requirements of our clients, offering customization options for specialized items such as emergency restoration towers and crossing structures. Moreover, our safety tools and accessories are available without any minimum order quantity constraints, ensuring flexibility to meet specific project needs.
Whether you require assistance with technical issues or have specific product requirements, our team is readily available to assist you. Please don't hesitate to reach out to us for support with any technical or product-related inquiries. Thank you for considering Marshine Power as your trusted partner for transmission solutions.
