Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SJZ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$500-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
Specification: |
4-7kw |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
120.00cm * 85.00cm * 95.00cm |
Package Gross Weight: |
165.000kg |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Application: |
Power Construction |
Material: |
Steel |
Product Name: |
Cable Pulling Winch |
Lift Speed: |
10-80m/Min |
Power Source: |
Gasoline Power Or Diesel Power |
Motor: |
4-7kw |
Usage: |
Cable Pulling Machine |
Capacity: |
1.6t, 3t, 5t |
Transport Package: |
Carton Box |
Specification: |
4-7kw |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
120.00cm * 85.00cm * 95.00cm |
Package Gross Weight: |
165.000kg |
Type: |
Belt Drive Winch |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

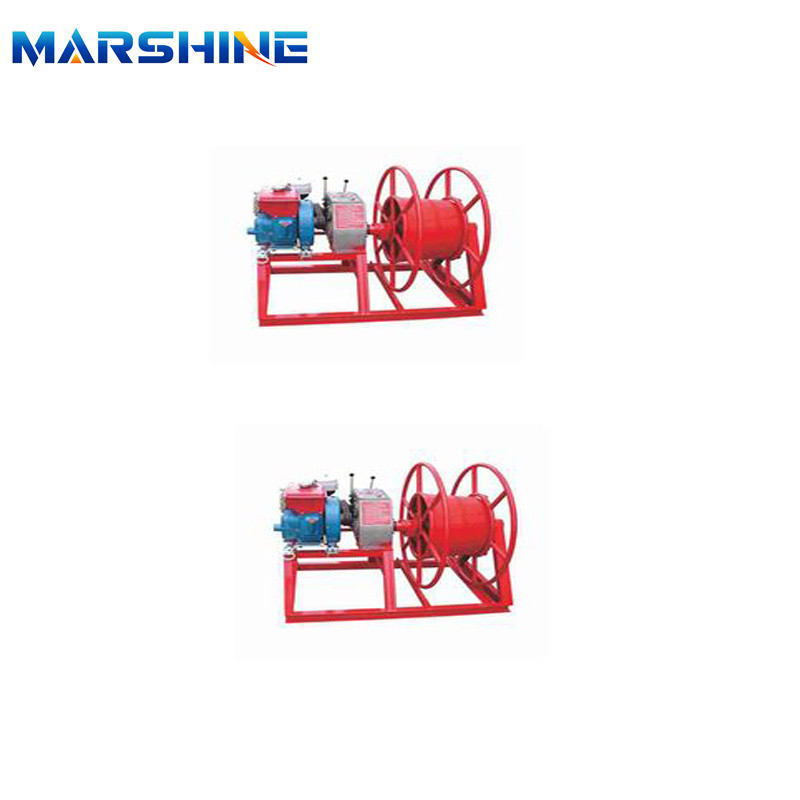

5 Ton 30 KN Belt Drive Recovery Wire Take-Up Machine
This wire take up machine serves to recycle the old conducting wire or the overhead ground wire.
Uses:To withdraw the old conductors or erect the overhead earth wires.
Notes:The outer side of the durm is detachable.
Main Specifications
| Item Number | 08151 | 08152 |
|
| Model | SJZ10B | SJZ10C |
|
| Engine | Type | Honda GX160 gasoline engine | Z170F diesel engine |
| Power (hp) | 5.5 | 4 |
|
| Rotational Speed (rpm) | 3600 | 2600 |
|
| Max. Take-up Force (kN) | 13.2 | 10.9 |
|
| Take-up Speed (m/min) | 9.8~80 | 10.5~85.4 |
|
| Reel Capacity (m) | LGJ95 | 600 | 600 |
| LGJ120 | 460 | 460 |
|
| LGJ185 | 320 | 320 |
|
| Weight (kg) | 136 | 165 |
|
| Overall Dimension (m) | 1.2×0.85×0.95 | 1.2×0.85×0.95 |
|
Marshine Power is dedicated to supporting Transmission projects with a comprehensive range of high-quality equipment. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. These products are all OEM and manufactured to the highest standards, meeting ISO 9001:2008 certification. Trusted by customers in over 50 countries, our equipment ensures reliable and efficient operations.
We understand the unique demands of Transmission projects, which is why we offer customization options for items like emergency restoration towers and crossing structures. Additionally, our safety tools and accessories have no minimum order quantity requirements, providing flexibility for your specific needs.
Whether you require technical support or have specific product requirements, our team is here to assist you. Please don't hesitate to reach out to us for any inquiries or assistance. Thank you for considering Marshine Power as your partner for Transmission projects.
