Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE
Model Number: MAR400-1250
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 45-199 , pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Model NO.: |
MAR400-1250 |
Major Diameter: |
224/250 280 |
Axle Hole Diameter: |
125/127 |
Carrying Hole Diameter: |
28-50 |
External Width: |
265-950 |
Transport Package: |
Industry Packing |
Specification: |
400 Etc. |
Origin: |
China |
HS Code: |
7326909000 |
Supply Ability: |
3000PCS/Month |
Type: |
Reel Spool |
Certification: |
ISO, SGS / BV |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Lateral Plate Diameter: |
400-1250 |
Model NO.: |
MAR400-1250 |
Major Diameter: |
224/250 280 |
Axle Hole Diameter: |
125/127 |
Carrying Hole Diameter: |
28-50 |
External Width: |
265-950 |
Transport Package: |
Industry Packing |
Specification: |
400 Etc. |
Origin: |
China |
HS Code: |
7326909000 |
Supply Ability: |
3000PCS/Month |
Type: |
Reel Spool |
Certification: |
ISO, SGS / BV |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Lateral Plate Diameter: |
400-1250 |

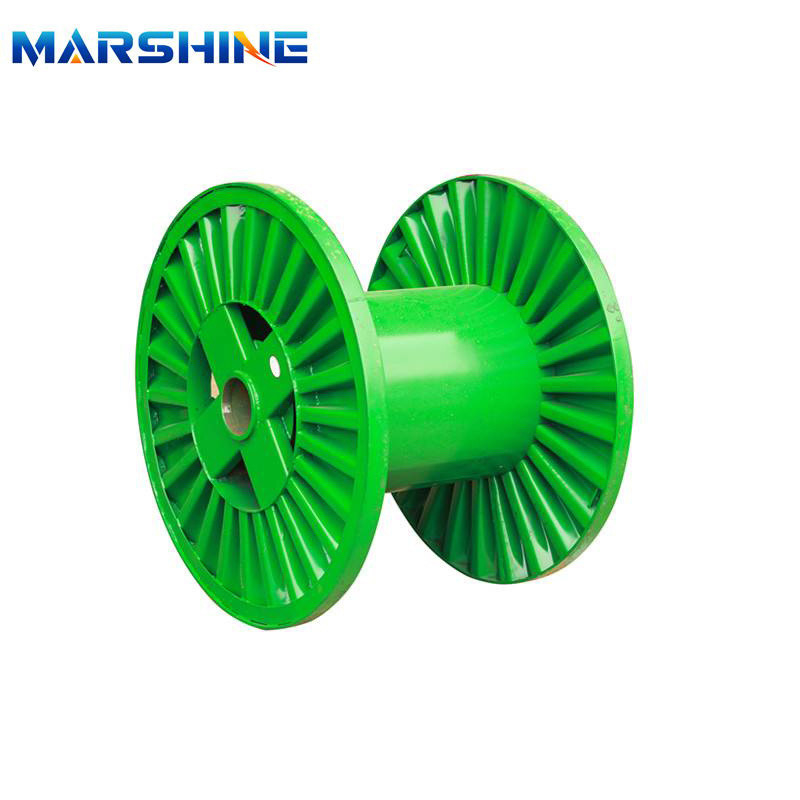

DIN Double Flange Pressed Steel Reel Cable Drums
In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing. The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high-speed drawing-wire machine and wire stranding machine.
Specifications
| Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
| 1 | 400 | 400 | 224/250 280 |
125/127 | 28 | 100 | 265 300 |
224 250 |
| 2 | 500 | 500 | 280/315 355 |
125/127 | 28 | 100 | 300 375 |
250 315 |
| 3 | 560 | 560 | 315/355 400 |
125/127 | 28 | 100 | 355 425 |
280 355 |
| 4 | 630 | 630 | 355/400 450 |
125/127 | 28 | 100 | 375 475 |
315 400 |
| 5 | 710 | 710 | 400/450 500 |
250 | 40 | 170 | 425 530 |
355 450 |
| 6 | 800 | 800 | 450/500 560 |
250 | 40 | 170 | 475 600 |
400 500 |
| 7 | 1000 | 1000 | 560/630 710 |
250 | 50 | 250 | 750 | 630 |
| 8 | 1250 | 1250 | 710/800 900 |
250 | 50 | 250 | 950 | 800Double flange pressed steel reelDouble flange pressed steel reel |
To support the Transmission work, Marshine Power has Hydraulic Cable Tensioner , Hydraulic Cable Puller, Cable Winch Puller, Cable Drum Trailer,Cable Conveyor, Conductor Pulley, Pulley Tackle all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
