Ningbo Marshine Power Technology Co.,Ltd sales@marshine.net 86-13777009159
Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-10
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$1000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: TT,LC,WESTERN UNION
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Insulation |
Max Working Torque (N.M): |
3300 |
Max Speed (Rpm): |
45 |
Weight (Kg): |
597 |
Length Of Hydraulic Tube: |
15 |
Product Name: |
Hydraulic Conductor Reel Stand |
Transport Package: |
Industry Packing |
Specification: |
597kg Etc. |
HS Code: |
7326909000 |
Supply Ability: |
100 Sets / Month |
Package Size: |
280.00cm * 190.00cm * 150.00cm |
Package Gross Weight: |
500.000kg |
Type: |
Reel Stands |
Certification: |
CE, ISO |
Customized: |
Non-Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Insulation |
Max Working Torque (N.M): |
3300 |
Max Speed (Rpm): |
45 |
Weight (Kg): |
597 |
Length Of Hydraulic Tube: |
15 |
Product Name: |
Hydraulic Conductor Reel Stand |
Transport Package: |
Industry Packing |
Specification: |
597kg Etc. |
HS Code: |
7326909000 |
Supply Ability: |
100 Sets / Month |
Package Size: |
280.00cm * 190.00cm * 150.00cm |
Package Gross Weight: |
500.000kg |
Type: |
Reel Stands |
Certification: |
CE, ISO |
Customized: |
Non-Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

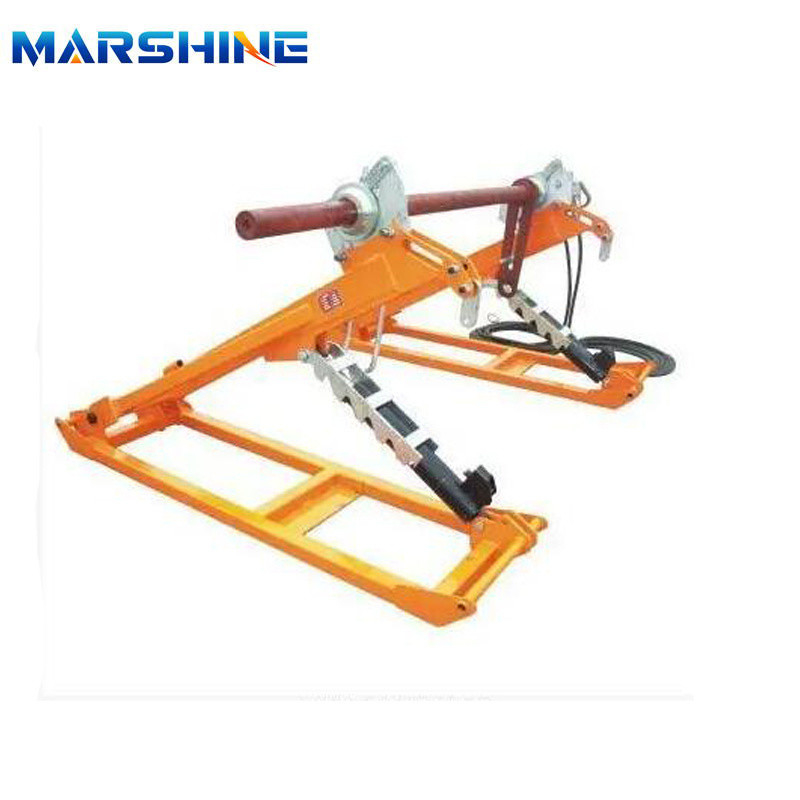

Large Capacity Hydraulic Conductor Reel Stand
The drum elevators are made of welded steel, with a protective coating; the frame is completely detachable to reduce dimensions during transport.
Each drum elevator is provided with one mechanical disk braking system to control the drum when unwinding the conductor.
Notes: Connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling
Specifications
| Item number | 15155 | 15158 | |
| Model | SIYZ10 | SIYZ15 | |
| Applicable reel | Diameter of coil (mm) | Φ2000~3000 | Φ2000~2800 |
| Max width of coil (mm) | 1700 | 1950 | |
| Diameter of axle hole (mm) | Φ125-130 | ||
| Maximum weight (kg) | 10000 | 15000 | |
| Max working torque (N.m) | 3300 | 4500 | |
| Max Speed (rpm) | 45 | 45 | |
| Axle diameter | Φ94 | Φ119 | |
| Weight (kg) | 597 | 789 | |
| Length of hydraulic tube | 15 | 20 | |
1.Training and services.
