Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: DW2240A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$1000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Max Working Torque (N.M): |
1200-2500 |
Max Speed (Rpm): |
45 |
Weight (Kg): |
270-350 |
Transport Package: |
Industry Packing |
Specification: |
270kg Etc. |
HS Code: |
7326909000 |
Supply Ability: |
100 Sets / Month |
Type: |
Reel Stands |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Max Width Of Coil (mm): |
1400-1700 |
Maximum Weight (Kg): |
5000-8000 |
Max Working Torque (N.M): |
1200-2500 |
Max Speed (Rpm): |
45 |
Weight (Kg): |
270-350 |
Transport Package: |
Industry Packing |
Specification: |
270kg Etc. |
HS Code: |
7326909000 |
Supply Ability: |
100 Sets / Month |
Type: |
Reel Stands |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Max Width Of Coil (mm): |
1400-1700 |
Maximum Weight (Kg): |
5000-8000 |

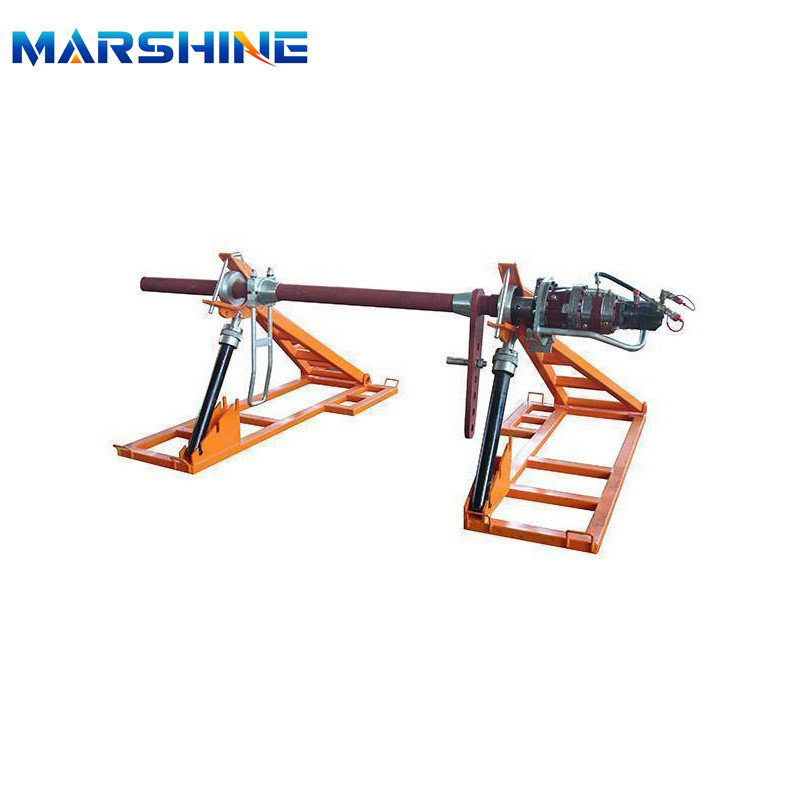

Conductor Reel Stands Hydraulic Reel Elevator Cable Tool
Notes: Connect with hydraulic tensioner or hydraulic puller tensioner throught quick coupling.
Technical Parameters
| Item number | 15151 | 15152 | 15153 | |
| Model | DW2240A | SIPZ-7H | SIPZ-7K | |
| Applicable reel | Diameter of coil (mm) | Φ1250~2240 | Φ1250~2500 | Φ1800~2800 |
| Max width of coil (mm) | 1400 | 1400 | 1700 | |
| Diameter of axle hole (mm) | Φ80-125 | Φ80-125 | Φ80-160 | |
| Maximum weight (kg) | 5000 | 7000 | 8000 | |
| Max working torque (N.m) | 1200 | 2000 | 2500 | |
| Max Speed (rpm) | 45 | 45 | 45 | |
| Axle diameter | Φ76 | Φ76 | Φ69 | |
| Weight (kg) | 270 | 350 | 350 | |
| Length of hydraulic tube | 13 | 13 | 13 | |
