Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SIPZ3A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$1000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Feature: |
Antimagnetic |
Maximum Weight (Kg): |
3000-7000 |
Braking Torque (N·m): |
1000-2000 |
Pay-off Speed (M/Min): |
80 |
Weight (Kg): |
200-480 |
Product Name: |
Cable Drum Lifter Stands |
Transport Package: |
Industry Packing |
Specification: |
200kg Etc. |
Origin: |
China |
HS Code: |
7326909000 |
Supply Ability: |
100 Sets / Month |
Package Size: |
100.00cm * 70.00cm * 50.00cm |
Package Gross Weight: |
480.000kg |
Type: |
Reel Stands |
Customized: |
Non-Customized |
Condition: |
New |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Feature: |
Antimagnetic |
Maximum Weight (Kg): |
3000-7000 |
Braking Torque (N·m): |
1000-2000 |
Pay-off Speed (M/Min): |
80 |
Weight (Kg): |
200-480 |
Product Name: |
Cable Drum Lifter Stands |
Transport Package: |
Industry Packing |
Specification: |
200kg Etc. |
Origin: |
China |
HS Code: |
7326909000 |
Supply Ability: |
100 Sets / Month |
Package Size: |
100.00cm * 70.00cm * 50.00cm |
Package Gross Weight: |
480.000kg |
Type: |
Reel Stands |
Customized: |
Non-Customized |
Condition: |
New |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

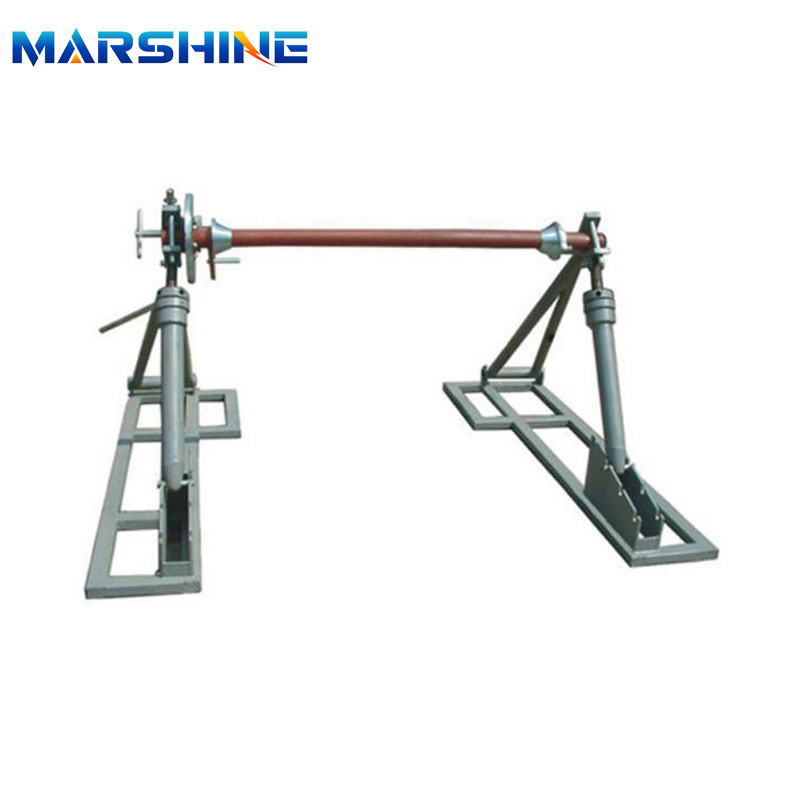

Cable Drum Lifter Stands with Disc Brake of Stringing Equipment
As the leading and biggest manufacture of stringing equpment and tools in China, MARSHINE have designed and produced a few kinds of Conductor Reel stands with disc brakes or hydraulic motors according to customer's requirement. The reel stands with hydraulic motors should be used with our hydraulic tensioner or hydraulic puller/tensioner, the reel stands with hydraulic motor also can be used as reel winder.
This integrated reel stand with disc tension brake can support the reel when applied to tension stringing or mechanical traction wire-laying. Also, it can be used for the braking of reel. For easy transportation, this product can be disassembled into three parts. Our SIPZ-7 type product is designed with the double disc brake structure.
Features: The disc brake disc provides excellent control on reels. The reel stand could be dismantled into three parts for ease of carriage during transportation.
Specifications
| Item Number | 15141 | 15142 | 15143 | |
| Model | SIPZ3A | SIPZ5A | SIPZ-7 | |
| Applicable Reel | Diameter of Coil (mm) | Φ900~1600 | Φ1600~2400 | Φ1800~2500 |
| Width of Coil (mm) | ≤1350 | ≤1350 | ≤1700 | |
| Diameter of Axle Hole (mm) | Φ65-100 | Φ65-100 | Φ120 | |
| Maximum Weight (kg) | 3000 | 5000 | 7000 | |
| Braking Torque (N·m) | 1000 | 1000 | 2000 | |
| Pay-off Speed (m/min) | 80 | 80 | 80 | |
| Weight (kg) | 200 | 215 | 480 | |
1.Training and services.
