Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: GSP-1400
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$1000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Model NO.: |
GSP-1400 |
Dimensions Of Reel (mm): |
1400X560 |
Dimensions (mm): |
2820X1330X700 |
Rated Tension Of Steel Rope (N): |
750 |
Max Line-Speed (M/Min): |
80 |
Max Tension Of Steel Rope (N): |
1000 |
Transport Package: |
Industry Packing |
Specification: |
Aluminium, Alloy Steel |
HS Code: |
7326909000 |
Supply Ability: |
2000PCS/Week |
Type: |
Reel |
Certification: |
ISO |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Weight(Kg): |
470kg |
Model NO.: |
GSP-1400 |
Dimensions Of Reel (mm): |
1400X560 |
Dimensions (mm): |
2820X1330X700 |
Rated Tension Of Steel Rope (N): |
750 |
Max Line-Speed (M/Min): |
80 |
Max Tension Of Steel Rope (N): |
1000 |
Transport Package: |
Industry Packing |
Specification: |
Aluminium, Alloy Steel |
HS Code: |
7326909000 |
Supply Ability: |
2000PCS/Week |
Type: |
Reel |
Certification: |
ISO |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Weight(Kg): |
470kg |

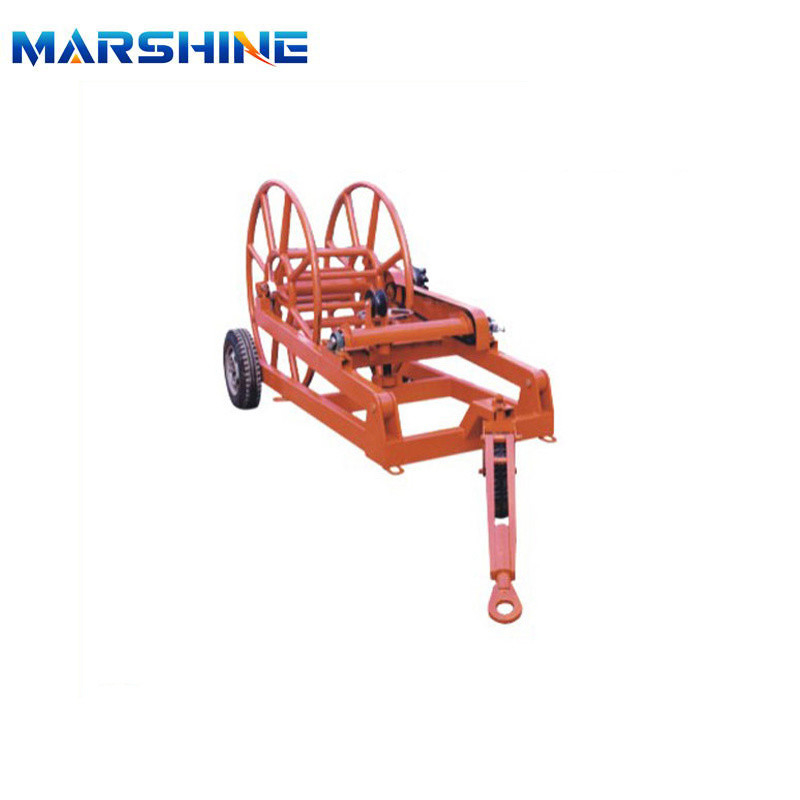

High Quality Wire Rope Reel Stand Cable Drum Pay-off Stand Auto Rewind Hose Reel
Reel Winder With Steel Reel are suitable to work with any hydraulic power unit, in particular with pullers and puller-tensioners, and operate as separated winding systems.
They are equipped with automatic level wind and negative self-acting hydraulic brake.
The frame is made of welded steel with protective coating.
The reel winders can lift the reel by hydraulic jacks powered by the same hydraulic source.
Specifications
| Max line-speed (m/min) | Max tension of steel rope (N) | Rated tension of steel rope (N) | Steel rope capacity (m) | Dimensions (mm) | Mass (kg) | Dimensions of reel (mm) |
| 80 | 1000 | 750 | 1000 (φ15mm steel rope) | 2820x1330x700 | 470 | 1400×560 |
Feature:
The reel winder is also equipped with:
1. steel reel GSP1400.
2. Manual front stabilizer.
3. Connecting hoses kit 15m length.
4. Rigid axle for towing at max speed of 30km/h with mechanical parking brake.
1.Training and services.
