Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SE-1-6J
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd 90-250 pcs
Packaging Details: WOOD BOX , PALLET
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Weight (Kg): |
12 Kg |
Material: |
Steel |
Usage/Application: |
Power Line Construction |
Outer Diameter(mm): |
1000 - 1840mm |
Root Diameter(mm): |
420 - 730mm |
Width Of Reel (mm): |
350 - 710mm |
Transport Package: |
Industry Packing |
Specification: |
13kg Etc. |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
7326909000 |
Supply Ability: |
2000PCS/Week |
Type: |
Reel Elevators |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Weight (Kg): |
12 Kg |
Material: |
Steel |
Usage/Application: |
Power Line Construction |
Outer Diameter(mm): |
1000 - 1840mm |
Root Diameter(mm): |
420 - 730mm |
Width Of Reel (mm): |
350 - 710mm |
Transport Package: |
Industry Packing |
Specification: |
13kg Etc. |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
7326909000 |
Supply Ability: |
2000PCS/Week |
Type: |
Reel Elevators |
Certification: |
CE, ISO |
Customized: |
Customized |

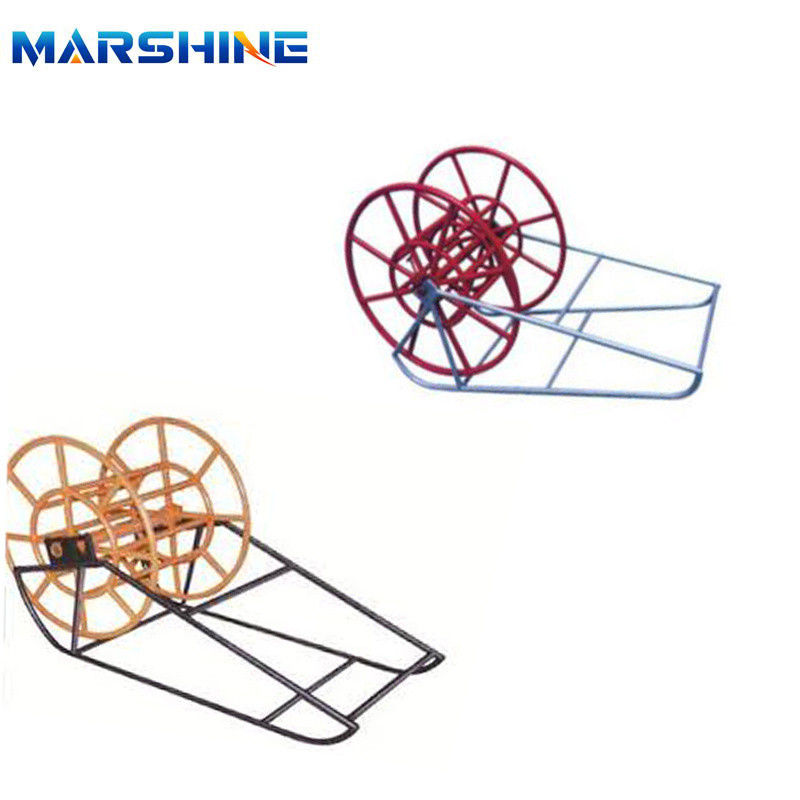

Stringing Equipment Cradle Reel Elevators For Pilot Wire
Our Marshine's Stringing Equipment Cradle Reel Elevators For Pilot Wire is utilized to support the steel wire rope reel. The matched models are put in one-to-one correspondence.With the high quality materials, high strength and good manufacturing process, the service life can be long.
Application:
It is used for paying out or taking back steel wire rope on site.
The Cradle Drum Elevator is made of welded steel with protective coating.
The frame and disc brake is completel detachable to reduce dimensions during the transport .
The set is equipped with disc brake system. Customer also can choose cradle reel elevator with brake system.
Specifications
| Item Number | Model | Outer Diameter ×Root Diameter ×Width of Reel (mm) | Weight (kg) |
| 15101 | SE-1J | 1000×420×350 | 12 |
| 15102 | SE-2J | 1400×720×530 | 16 |
| 15103 | SE-3J | 1400×720×530 | 16 |
| 15104 | SE-4J | 1660×720×630 | 20 |
| 15105 | SE-5J | 1750×730×680 | 30 |
| 15106 | SE-6J | 1840×730×710 | 39 |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic Cable Tensioner, Safety Tools And Accessories, Cable Conveyor, Cable Stringing Equipments, Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can feel free to help you out either Tech issue or Products requirements. Pls contact us. Thanks.
