Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: 315-1000
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 250-350, pcs
Packaging Details: WOOD BOX , PALLET
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Name: |
Double Flange Cable Reel |
Condition: |
New |
Prpduct Feature: |
Antimagnetic |
Lateral Plate Diameter: |
315-1000 |
Bobbin Colour: |
Can Be Customized |
Application: |
For Drawing, Stranding And Bunching Machines |
Workable Wire: |
Steel Wire, Steel Rope, Copper |
Transport Package: |
Industry Packing |
Trademark: |
MARSHINE |
Original Country: |
China |
HS Code: |
7326909000 |
Supply Ability: |
2000 PCS /Week |
Certification: |
CE, ISO |
Customized: |
Non-Customized |
Name: |
Double Flange Cable Reel |
Condition: |
New |
Prpduct Feature: |
Antimagnetic |
Lateral Plate Diameter: |
315-1000 |
Bobbin Colour: |
Can Be Customized |
Application: |
For Drawing, Stranding And Bunching Machines |
Workable Wire: |
Steel Wire, Steel Rope, Copper |
Transport Package: |
Industry Packing |
Trademark: |
MARSHINE |
Original Country: |
China |
HS Code: |
7326909000 |
Supply Ability: |
2000 PCS /Week |
Certification: |
CE, ISO |
Customized: |
Non-Customized |

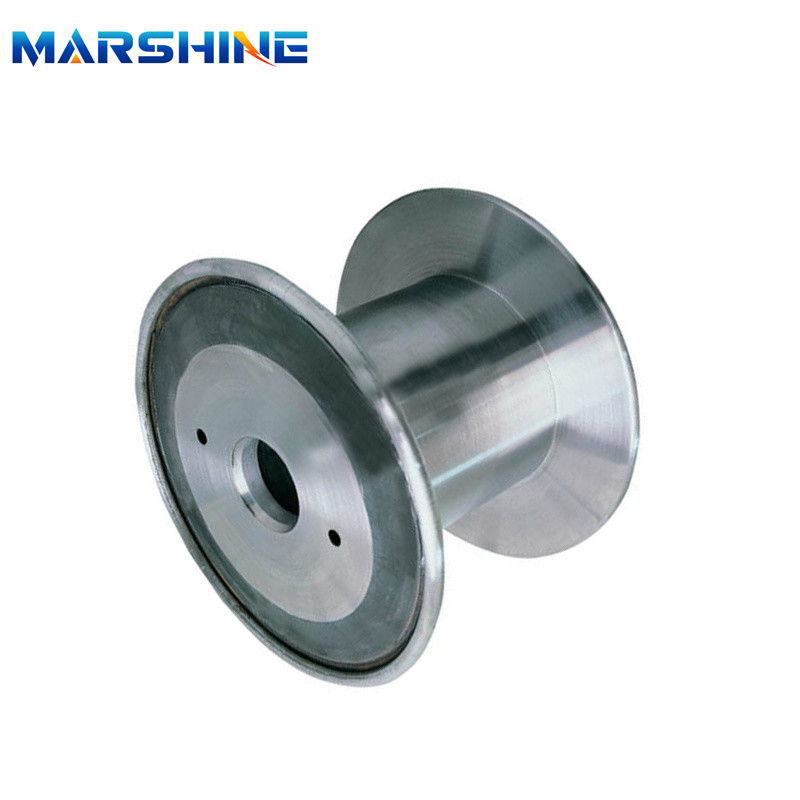

High Quality Customizable Reinforced Double Flange Cable Reel for Wire Drawing Machine
In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, our Marshine's product is formed by pressing and welding common carbon steel Q235 (A3) thin steel plate.
The perimeter of the side panel adopts a rolled edge structure. This product not only enhances the strength of the side panel, but also has the characteristics of high rigidity and toughness, light weight, and firmness. It can be used in wire drawing machines, bundling machines, twisting machines, extruders, wiring machines, and armor machines.
Specifications
| Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
| 1 | 315 | 315 | 120 | 33.5 | 16 | 86 | 238 | 200 |
| 2 | 400 | 400 | 160/200 | 56 | 16 | 71-112 | 300 | 250 |
| 3 | 440 | 440 | 220 | 80 | 16-28 | 180 | 316 | 292 |
| 4 | 450 | 450 | 180/224 | 56 | 16-28 | 71-112 | 335 | 280 |
| 5 | 500 | 500 | 250 | 56 | 16-28 | 142 | 335 | 315 |
| 6 | 560 | 560 | 224/280 | 56 | 16-28 | 71-112 | 425 | 355 |
| 8 | 630 | 630 | 335 | 80 | 16-32 | 140 | 495 | 450 |
| 9 | 710 | 710 | 355/400 | 80 | 28-40 | 71-112 | 530 | 450 |
| 11 | 762 | 762 | 355/400 | 60 | 25-40 | 135 | 360 | 280 |
| 12 | 787 | 787 | 450 | 127 | 25.4 | 120 | 560 | 485 |
| 13 | 800 | 800 | 450 | 200 | 28-40 | 135 | 600 | 500 |
| 14 | 900 | 900 | 380 | 80 | 28-40 | 400 | 764 | 720 |
| 15 | 1000 | 1000 | 500 | 200 | 28-40 | 320 | 780 | 660 |
To support the Transmission work, Marshine Power has Tubular Safety Tools And Accessories, Hydraulic Cable Tensioner, wire rope pulley block, Cable Roller, Cable Take Up Machine, Cable Tightening Device- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
