Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE
Model Number: MAR-YQ40
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Engine Power / Speed (Kw/Rpm): |
60/2000 |
Weight (Kg): |
2500 |
Cummins Engine Power: |
60 Kw |
Delivery Date: |
30~45days |
Suitable: |
Single Conductor And Opgw |
Transport Package: |
Industrial Packing |
Specification: |
60 Kw |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
40 |
Continuous Tractive Effort (Kn): |
35 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
7 |
Engine Power / Speed (Kw/Rpm): |
60/2000 |
Weight (Kg): |
2500 |
Cummins Engine Power: |
60 Kw |
Delivery Date: |
30~45days |
Suitable: |
Single Conductor And Opgw |
Transport Package: |
Industrial Packing |
Specification: |
60 Kw |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
40 |
Continuous Tractive Effort (Kn): |
35 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
7 |

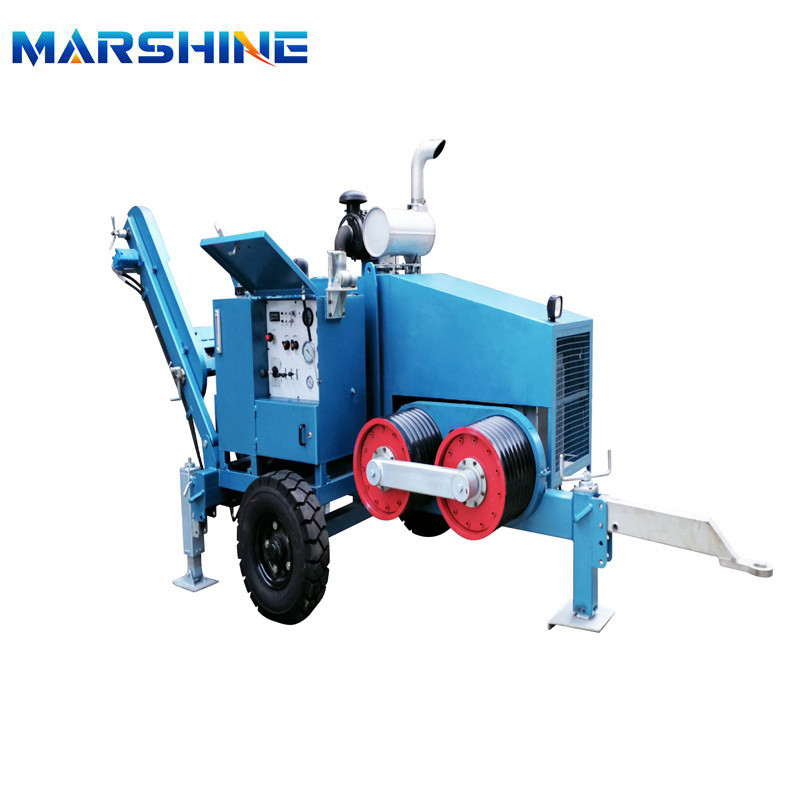

Industrial Cable Hydraulic Puller Tensioner For Single Conductor
Marshine’s MAR-YQ40 Hydraulic Wire Puller is designed with an overload automatic protection function, ensuring operational safety. Marshine allows users to preset the maximum traction force for conductor stringing, providing additional control and safety. The puller also includes an automatic spring-applied hydraulically released brake, which ensures secure operations even in the event of a sudden motor shutdown or hydraulic failure.
Furthermore, Marshine’s MAR-YQ40 Hydraulic Wire Puller offers excellent versatility with steplessly adjustable pulling speed and traction force. The real-time monitoring feature includes a clear line pull gauge display, while the automatic steel wire rope winding device helps streamline rope arrangement and improve the efficiency of loading and unloading processes.
Main Specifications
| Model | MAR-YQ40 Hydraulic Puller |
| Maximum Traction Force (kN) | 40 |
| Continuous Tractive Effort (kN) | 35 |
| Maximum Pulling Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ400 |
| Number of Bullwheel Grooves | 7 |
| Maximum Diameter of Suitable Steel Rope (mm) | Φ16 |
| Maximum Through Connector Diameter (mm) | Φ50 |
| Engine Power / Speed (kW/rpm) | 60/2000 |
| Dimensions (mm) | 3500× 2000× 2300 |
| Weight (kg) | 2500 |
Main Components
| Engine | Cummins (DONGFENG ) water cooled engine |
| Main Variable Pump and Main Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitable Drum | Model GSP1400 (Item number: 07125C) |
Characteristic
1. Enjoy precise control with steplessly adjustable traction force and speed, complemented by an intuitive display for easy monitoring.
2. Set your desired maximum traction force with the ability to preset, while automatic overload protection ensures safety during operations.
3. Ensure operational safety with the pressure loss automatic braking function, activated in the event of sudden engine shutdown or system pressure loss.
4. Benefit from the automatic winding device for high-strength steel wire rope, facilitating automatic rope arrangement and convenient loading and unloading processes.
To support the Transmission work, Marshine Power has Hydraulic Cable Tensioner , Hydraulic Cable Puller, Cable Winch Puller, Cable Drum Trailer,Cable Conveyor, Conductor Pulley, Pulley Tackle all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
