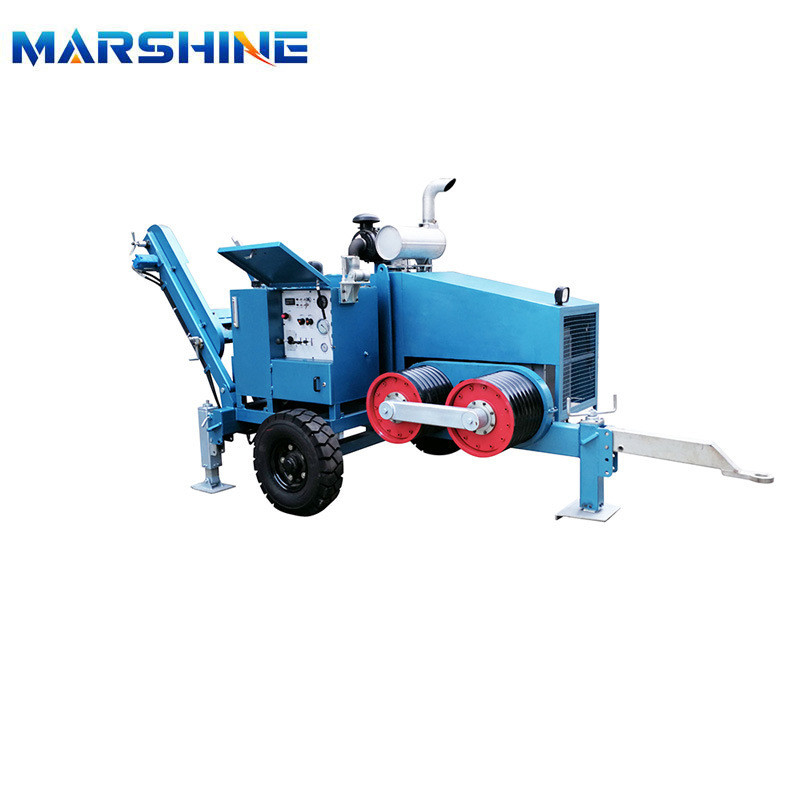

Adjustable Hydraulic Conductor Stringing Machine Bullwheel Cable Puller

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: MAR-YQ220

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: US$10000-US$100000

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:

Adjustable conductor stringing machine

,

Bullwheel conductor stringing machine

,

Adjustable bullwheel cable puller

Engine Power / Speed (Kw/Rpm):
243/2100
Weight (Kg):
8000
Suitable:
4 Or 6 Conductors Stringing
Diameter Of Wire Rope Drum:
1600mm
Transport Package:
Industrial Packing
Specification:
1600mm
HS Code:
8502120000
Supply Ability:
30PCS/Month
After-sales Service:
1 Year
Warranty:
1 Year
Maximum Traction Force (Kn):
220
Continuous Tractive Effort (Kn):
180
Maximum Pulling Speed (Km/H):
5
Number Of Bullwheel Grooves:
10
Engine Power / Speed (Kw/Rpm):
243/2100
Weight (Kg):
8000
Suitable:
4 Or 6 Conductors Stringing
Diameter Of Wire Rope Drum:
1600mm
Transport Package:
Industrial Packing
Specification:
1600mm
HS Code:
8502120000
Supply Ability:
30PCS/Month
After-sales Service:
1 Year
Warranty:
1 Year
Maximum Traction Force (Kn):
220
Continuous Tractive Effort (Kn):
180
Maximum Pulling Speed (Km/H):
5
Number Of Bullwheel Grooves:
10
Product Description

Overhead Transmission Line Cable Stringing Equipments MAR-YQ220 Hydraulic Wire Rope Puller For Conductor Pulling and Tensioning


Our MAR-YQ220 Hydraulic Puller prioritizes safety, particularly in scenarios like hydraulic failures resulting from sudden motor shutdowns. Thanks to its automatic activation, the spring-applied hydraulically released brake ensures secure operation during such incidents.

Additionally, its hydraulic rope clamping device stands out for its convenience in replacing the steel wire rope reel. Alongside this feature, the inclusion of a steel wire rope automatically winding device streamlines rope arrangement and facilitates easy loading and unloading.

Furthermore, our MAR-YQ220 Hydraulic Puller is equipped with an overload automatic protection function. This enables users to preset the maximum traction force for conductor-stringing operations as needed. Both traction force and pulling speed are steplessly adjustable, with real-time display of rope tension provided on the line pull gauge.



Main Specifications

Model MAR-YQ220 Hydraulic Puller
Maximum Traction Force (kN) 220
Continuous Tractive Effort (kN) 180
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ760
Number of Bullwheel Grooves 10
Maximum Diameter of Suitable Steel Rope (mm) Φ30
Maximum Through Connector Diameter (mm) Φ75
Engine Power / Speed (kW/rpm) 243/2100
Dimensions (mm) 5700× 2300× 2600
Weight (kg) 8000
Main Components
Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer Rexroth (BOSCH)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
Suitable Drum Model GSP1600 (Item number: 07125D)
Characteristic
1. Enjoy precise control with steplessly adjustable traction force and speed, complemented by an intuitive display for easy monitoring.

2. Set your desired maximum traction force with the ability to preset, while automatic overload protection ensures safety during operations.

3. Ensure operational safety with the pressure loss automatic braking function, activated in the event of sudden engine shutdown or system pressure loss.

4. Simplify steel wire rope disc replacement with the convenient hydraulic traction rope clamping device.

5. Benefit from the automatic winding device for high-strength steel wire rope, facilitating automatic rope arrangement and convenient loading and unloading processes.
