Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YQ60
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Engine Power / Speed (Kw/Rpm): |
77/2800 |
Weight (Kg): |
3000 |
Transport Package: |
Carton Box |
Specification: |
60 |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
60 |
Continuous Tractive Effort (Kn): |
50 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
7 |
Engine Power / Speed (Kw/Rpm): |
77/2800 |
Weight (Kg): |
3000 |
Transport Package: |
Carton Box |
Specification: |
60 |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
60 |
Continuous Tractive Effort (Kn): |
50 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
7 |

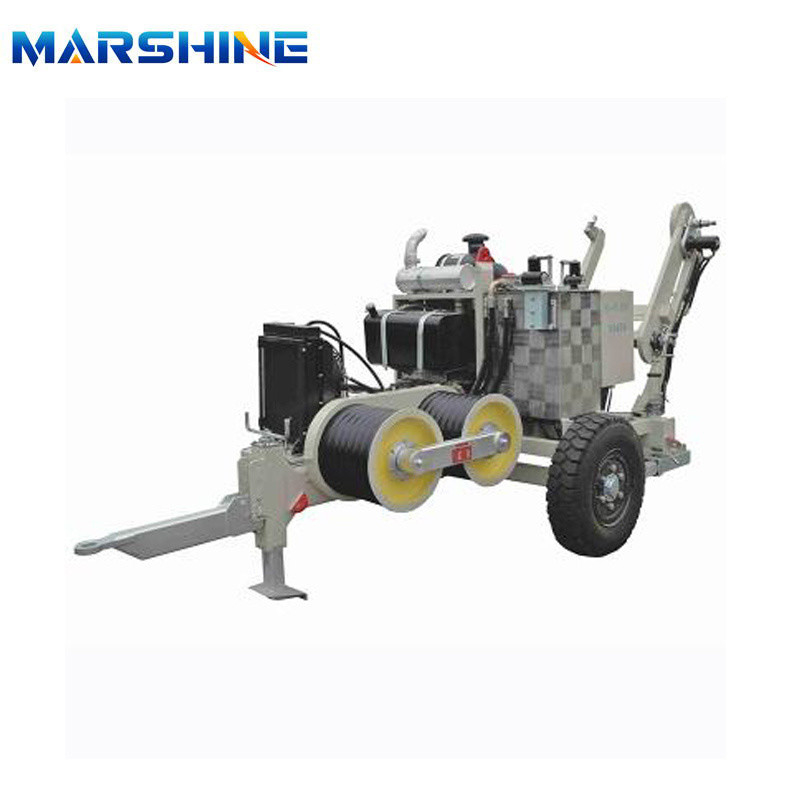

Hydraulic Puller with Commins Engine
The MAR-YQ60 Hydraulic Puller incorporates a spring-applied hydraulically released brake, ensuring automatic activation for safe operation even in the event of sudden motor shutdown or hydraulic failure.
Moreover, our MAR-YQ60 Hydraulic Puller features an overload automatic protection function, providing added safety during operations. Both pulling speed and traction force are fully adjustable, with real-time monitoring facilitated by the line pull gauge. Additionally, users have the flexibility to preset the maximum traction force for conductor stringing tasks.
Lastly, the puller is equipped with a steel wire rope automatically winding device, simplifying rope arrangement and facilitating convenient loading and unloading processes for enhanced efficiency.
Technical Parameters
Model | MAR-YQ60 Hydraulic Puller |
Maximum Traction Force (kN) | 60 |
Continuous Tractive Effort (kN) | 50 |
Maximum Pulling Speed (km/h) | 5 |
Bullwheel Bottom of Groove Diameter (mm) | Φ460 |
Number of Bullwheel Grooves | 7 |
Maximum Diameter of Suitable Steel Rope (mm) | Φ18 |
Maximum Through Connector Diameter (mm) | Φ60 |
Engine Power / Speed (kW/rpm) | 77/2800 |
Dimensions (mm) | 3800× 2100× 2300 |
Weight (kg) | 3000 |
Configurations
Engine | Cummins (DONGFENG ) water cooled engine |
Main Variable Pump and Main Motor | Rexroth (BOSCH) |
Reducer | RR (Italian) |
Main Hydraulic Valve | Rexroth (BOSCH) |
Radiator | AKG |
Hydraulic Instrument | WIKA |
Suitable Drum | GSP1400 (Item number: 07125C) |
Characteristic
1. Experience seamless control with steplessly adjustable traction force and speed, complemented by an intuitive display for easy monitoring.
2. Set your desired maximum traction force with the ability to preset, while automatic overload protection ensures safety during operations.
3. Ensure operational safety with the pressure loss automatic braking function, activated in the event of sudden engine shutdown or system pressure loss.
4. Simplify steel wire rope disc replacement with the convenient hydraulic traction rope clamping device.
5. Benefit from the automatic winding device for high-strength steel wire rope, facilitating automatic rope arrangement and convenient loading and unloading processes.
