Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YQ180
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Weight (Kg): |
8000 |
Transport Package: |
Industrial Packing |
Specification: |
180 |
HS Code: |
8502120000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
180 |
Continuous Tractive Effort (Kn): |
150 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
9 |
Weight (Kg): |
8000 |
Transport Package: |
Industrial Packing |
Specification: |
180 |
HS Code: |
8502120000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
180 |
Continuous Tractive Effort (Kn): |
150 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
9 |

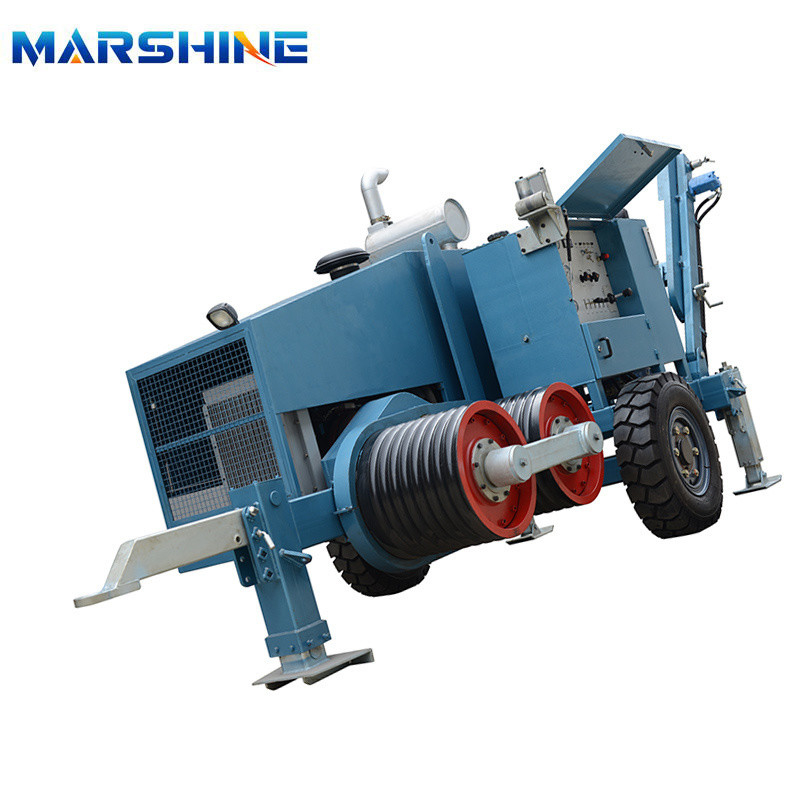

MAR-YQ180 Power Construction Hydraulic Wire Puller
Our MAR-YQ180 Hydraulic Puller boasts an advanced overload automatic protection system, allowing users to preset the maximum traction force for conductor-stringing tasks. This system ensures safety by preventing excessive force application. Furthermore, both traction force and pulling speed are fully adjustable, providing users with precise control over their operations.
To enhance safety further, the puller is equipped with an automatic braking function, activated in case of hydraulic failure due to motor shutdown or other unforeseen circumstances. This feature guarantees secure operation even in unexpected situations.
The hydraulic rope clamping device simplifies the process of replacing the steel wire rope reel, adding convenience to maintenance tasks. Additionally, the inclusion of a steel wire rope automatically winding device facilitates easy loading, unloading, and arrangement of the rope, streamlining workflow processes.
Technical Parameters
| Model | MAR-YQ180 Hydraulic Puller |
| Maximum Traction Force (kN) | 180 |
| Continuous Tractive Effort (kN) | 150 |
| Maximum Pulling Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ630 |
| Number of Bullwheel Grooves | 9 |
| Maximum Diameter of Suitable Steel Rope (mm) | Φ24 |
| Maximum Through Connector Diameter (mm) | Φ65 |
| Engine Power / Speed (kW/rpm) | 209/2100 |
| Dimensions (mm) | 5500× 2170× 2570 |
| Weight (kg) | 8000 |
| Engine | Cummins (USA) water-cooled diesel engine |
| Main Variable Displacement Pump, Main Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Main Hydraulic Valves | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitable Drum | Model GSP1600 (Item number: 07125D) |
Marshine Power is your trusted partner for transmission projects, offering a comprehensive range of OEM products manufactured to the highest standards in compliance with ISO 9001:2008 regulations. Our product lineup includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. Trusted by customers in over 50 countries worldwide, our equipment is renowned for its quality and reliability.
We specialize in custom solutions such as emergency restoration towers and crossing structures tailored to meet the unique requirements of your project. Additionally, our safety tools and accessories are available without any minimum order quantity requirements, ensuring you have access to the support you need without constraints.
Whether you require assistance with technical issues or have specific product requirements, our dedicated team is here to assist you. Please don't hesitate to reach out to us for any inquiries or support you may need. Thank you for considering Marshine Power as your partner in transmission work.
