Ningbo Marshine Power Technology Co.,Ltd sales@marshine.net 86-13777009159
Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: J55G
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd 10-65 pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
Brand New |
Feature: |
Insulation |
Usage: |
Industrial |
Conductor Material: |
Aluminum Clad Steel |
Material: |
Galvanized Steel |
Conductor Type: |
Solid |
Application: |
Electric Devices |
Package: |
Carton Box |
Specification(mm): |
450-850MM |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
20000PCS/Months |
Package Size: |
230.00cm * 130.00cm * 30.00cm |
Package Gross Weight(kg): |
10.000kg |
Type: |
ACSR Conductor |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
Brand New |
Feature: |
Insulation |
Usage: |
Industrial |
Conductor Material: |
Aluminum Clad Steel |
Material: |
Galvanized Steel |
Conductor Type: |
Solid |
Application: |
Electric Devices |
Package: |
Carton Box |
Specification(mm): |
450-850MM |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
20000PCS/Months |
Package Size: |
230.00cm * 130.00cm * 30.00cm |
Package Gross Weight(kg): |
10.000kg |
Type: |
ACSR Conductor |
Certification: |
CE, ISO |
Customized: |
Customized |
Aluminum Splicing Sleeve Protector for ACSR Electric Construction Earth Wire Splice Protection Sleeve
Our Marshine's joint protector is made up of two galvanized steel shells. And the cover joints are specifically designed to protect the mid span joint during conductor stringing operations, made at the "tensioner station" . The ends are shaped to host the rubber protections.The shells are coupled together by socket screws and the rubber noses are clipped together by belts. which means it is fit to limit the bending radius of the conductor during the passage in the running out blocks.
Notes: Other specification can be customized.

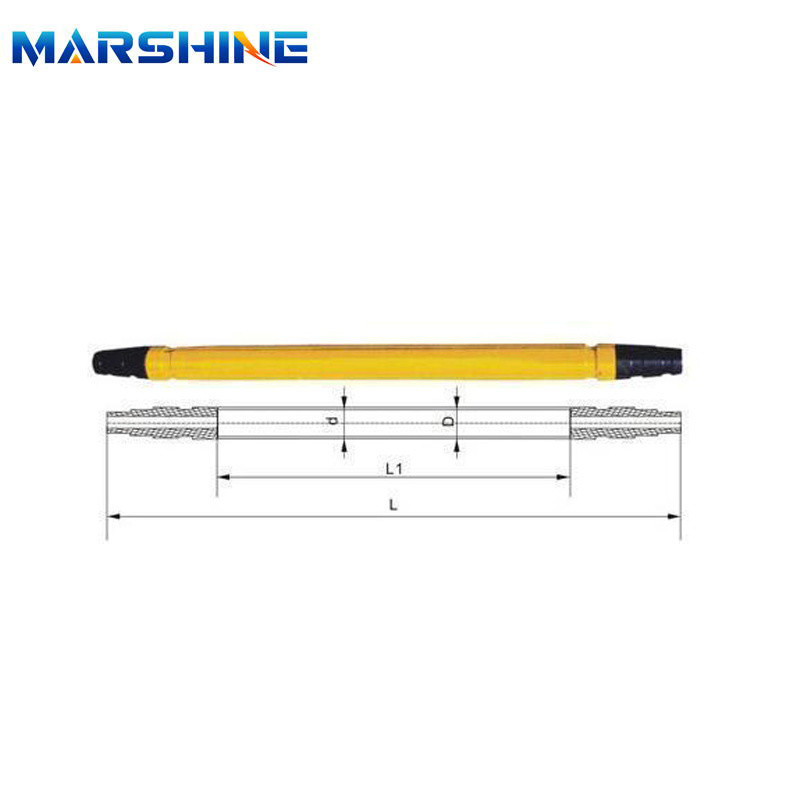

D = joint protector external diameter
L = total length
d = conductor diameter
L1 = length of the joint after pressing
Specifications
| Item Number | Model | Main Dimension (mm) | Applicable Earth Wire | |||
| D | L | d | L1 | |||
| 17213 | J55G | Φ30 | 450 | Φ24 | 280 | GJ50, GJ55 |
| 17214 | J70G | Φ30 | 510 | Φ24 | 340 | JLB65, GJ70 |
| 17215 | J80G | Φ34 | 510 | Φ27 | 340 | GJ80 |
| 17216 | J95G | Φ34 | 585 | Φ27 | 415 | JLB95 |
| 17217 | J100G | Φ38 | 590 | Φ28 | 390 | LGJ50/30, GJ100 |
| 17218 | J120G | Φ40 | 660 | Φ30 | 440 | GJ120, JLB120 |
| 17219 | J150G | Φ45 | 850 | Φ37 | 530 | GJ150, LGJ70/40, LGJ95/55 |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller, wire rope pulley block, Braided Steel Rope And Accessories, Wire rope gripper, Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
