Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SLU
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 60-260, pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: TT,LC,WESTERN UNION
Supply Ability: 200 CONTAINER/YEAR
Function: |
Connector |
Item Weight (Kg): |
0.2~3.9kg |
Rated Load (KN): |
10 ~ 320 Kn |
Dia. Of Suitable Cable (mm): |
12 ~ 120 Mm |
Main Dimension (mm): |
10 ~ 80 Mm |
Transport Package: |
Wooden Box Or Customized Required |
Item Specification: |
Aluminium , Alloy Steel |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
8467890000 |
Certification: |
ISO 9001 |
Terminal Material: |
Aluminum |
Function: |
Connector |
Item Weight (Kg): |
0.2~3.9kg |
Rated Load (KN): |
10 ~ 320 Kn |
Dia. Of Suitable Cable (mm): |
12 ~ 120 Mm |
Main Dimension (mm): |
10 ~ 80 Mm |
Transport Package: |
Wooden Box Or Customized Required |
Item Specification: |
Aluminium , Alloy Steel |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
8467890000 |
Certification: |
ISO 9001 |
Terminal Material: |
Aluminum |
Rigid Connector Cable Wire Rope Fixed Joint For Transmission Line

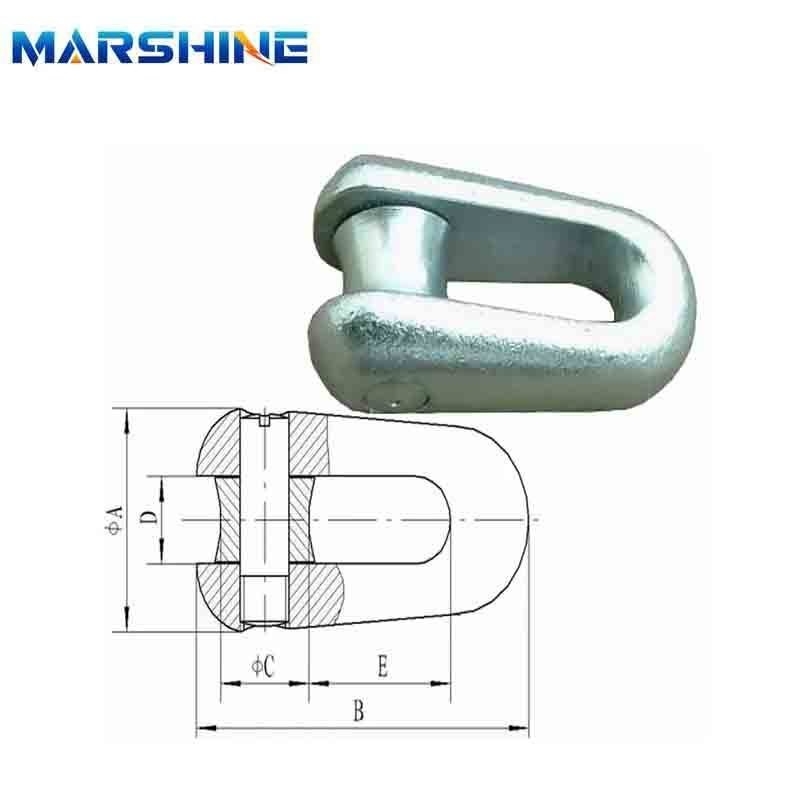

Our Marshine's U-shape bend resistance connector is made of the galvanized steel with high tensile strength. It is specially designed for connecting guide rope or pull rope and can be passed through the puller or puller tensioner large wheel. In addition, the unique shape enables this product to minimize the overload of the rope splicing eye during the passage.
Uses: To connect pilot rope lengths or pulling rope lengths and to pass over the puller or tensioner bull wheels.
Notes: "d" refers to the diameter of pin.
Product Parameters
| Item Number | Model | Main Dimension (mm) | Rated Load (kN) | Weight (kg) | |||||
| A | B | C | d | D | E | ||||
| 17111 | SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
| 17112 | SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
| 17113 | SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
| 17114 | SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
| 17115 | SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
| 17116 | SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
| 17117 | SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
| 17118 | SLU-25 | 80 | 178 | 44 | 32 | 35 | 72 | 250 | 3.0 |
| 17118A | SLU-28 | 80 | 178 | 44 | 32 | 35 | 72 | 280 | 3.0 |
| 17119 | SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
To support the Transmission work, Marshine Power has Cable Compression Cutting Machine, Hydraulic cable puller, Conductor Installation Devices, Cable Installation Machines And Tools, Cable Roller, Conductor Pulley- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
