Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: YJZ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 120-320, pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Product Name: |
Pipe Straightening Machine Crimp Pipe Straightener |
Product Feature: |
Flame Retardant |
Product Type: |
Strightener |
Dimension (L*W*H): |
300mm*260mm*507mm |
Applicable Industries: |
Construction Works |
Application: |
Construction Engineering |
Weight: |
12-15.5 Kg |
Maximum Straighten Force (kN): |
20 Kn |
Transport Package: |
Carton Box / Customized |
Product Specification: |
12 - 15.5 Kg |
Trademarks: |
MARSHINE |
Original Country: |
China |
HS Code: |
8467890000 |
Certifications: |
CE , ISO |
Product Name: |
Pipe Straightening Machine Crimp Pipe Straightener |
Product Feature: |
Flame Retardant |
Product Type: |
Strightener |
Dimension (L*W*H): |
300mm*260mm*507mm |
Applicable Industries: |
Construction Works |
Application: |
Construction Engineering |
Weight: |
12-15.5 Kg |
Maximum Straighten Force (kN): |
20 Kn |
Transport Package: |
Carton Box / Customized |
Product Specification: |
12 - 15.5 Kg |
Trademarks: |
MARSHINE |
Original Country: |
China |
HS Code: |
8467890000 |
Certifications: |
CE , ISO |

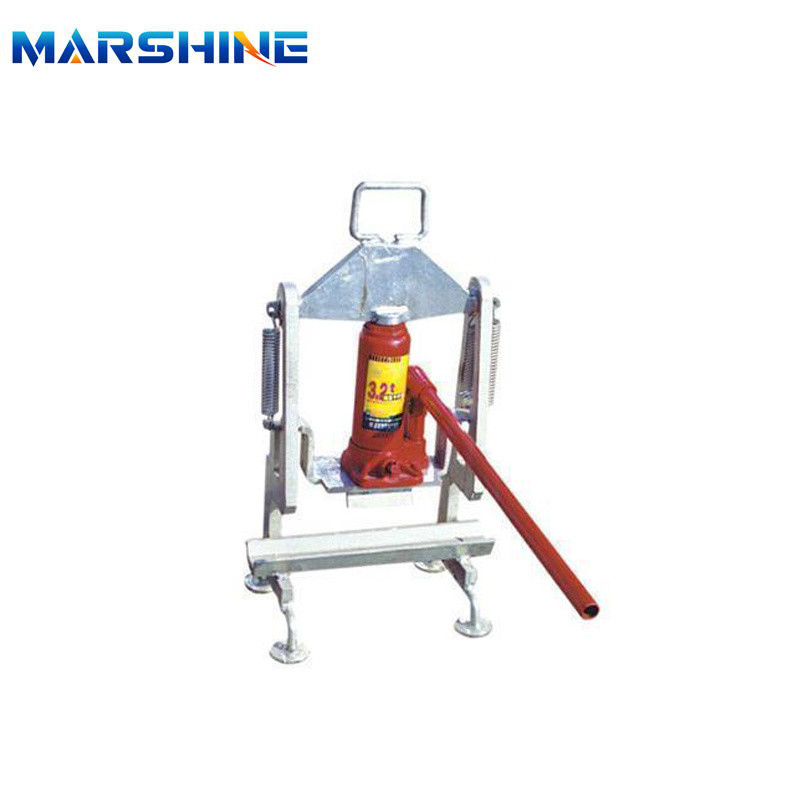

Splice Sleeve Straightener Pipe Straightening Machine Crimp Pipe Straightener Splicing Sleeves Straightener
Our Marshine's Splice Sleeve Straightener Pipe Straightening Machine Crimp Pipe Straightener Splicing Sleeves Straightener its maximum straightening force reaches 20kN. And our straightener serves to straighten the bent splice sleeve with its specification of LGJ720 or below after the crimping process. This product weighs 12kg.
Specifications
| Item number | 17211 | 17212 | 17212A |
| Model | YJZ2 | YJZ3 | YJZ4 |
| Maximum straighten force(kN) | 20 | 50 | 150 |
| Maximum applicable conductor | ACSR720 | ACSR900 | ACSR1250 |
| Maximum diameter of splicing sleeves(mm) | Φ60 | Φ68 | Φ80 |
| Dimension(mm) | 300×260×507 | 452×391×145 | 400×375×140 |
| Weight(kg) | 12 | 13.5 | 15.5 |
| Remark | Need to purchase mathched manual pump CSB63 |
