Ningbo Marshine Power Technology Co.,Ltd sales@marshine.net 86-13777009159
Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SZ
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 300-800, pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Model NO.: |
SZ |
Rated Load (Kn): |
130-320 |
Size(mm): |
100-125 |
Weight(Kg): |
82-150 |
Usage: |
Traction Conductor |
Transport Package: |
Carton Box |
Specification: |
130-320kn |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
2000PCS/Day |
Type: |
Running Board |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Product Name: |
Head Boards For Four Bundle Conductors |
Model NO.: |
SZ |
Rated Load (Kn): |
130-320 |
Size(mm): |
100-125 |
Weight(Kg): |
82-150 |
Usage: |
Traction Conductor |
Transport Package: |
Carton Box |
Specification: |
130-320kn |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
2000PCS/Day |
Type: |
Running Board |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Product Name: |
Head Boards For Four Bundle Conductors |

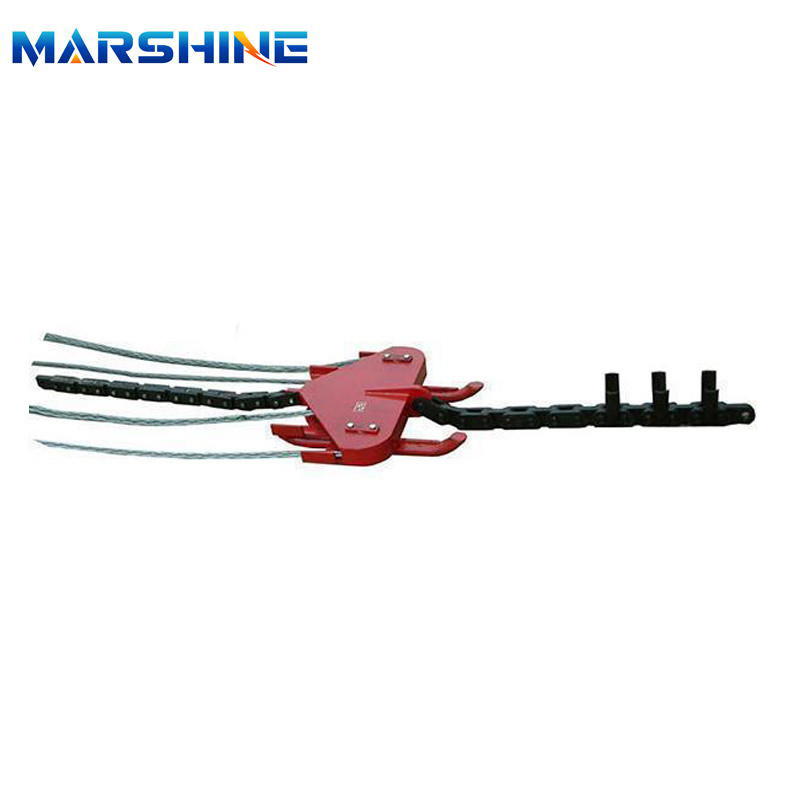

Overhead Line Bundle Conductor Running Board For Stringing Block
Technical Parameters
| Item Number | Model | Rated Load (kN) | Weight (kg) | Width of Applicable Sheave (mm) | Features |
| 17231 | SZ4A-13 | 130 | 96 | 100 | Balanced pulley type |
| 17232 | SZ4B-13 | 130 | 65 | 100 | Conductors are independent of each other. |
| 17233 | SZ4B-18 | 180 | 95 | 110 | Conductors are independent of each other. |
| 17234 | SZ4B-25 | 250 | 110 | 110 | Conductors are independent of each other. |
| 17238 | SZ4C-25 | 250 | 88 | 110 | Conductors are independent of each other. |
| 17239 | SZ4B-32 | 320 | 150 | 125 | Conductors are independent of each other. |
