Ningbo Marshine Power Technology Co.,Ltd sales@marshine.net 86-13777009159
Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SL
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 30-210, pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2500 pcs/month
Manufacturing Process: |
Casting |
Pulley Sizes: |
Type O |
Function Of The Product: |
Connector |
Weight (Kg): |
0.3 ~ 1.2 Kg |
Rated Load (Kn): |
5 ~ 80 Kn |
Diameter Of Suitable Cable (mm): |
12 ~ 120 Mm |
Transport Package: |
Wooden Box / Customized Required |
Specification: |
Aluminium / Alloy Steel |
Trademarks Of The Product: |
MARSHINE |
Place Of Origin: |
China |
HS Code: |
8467890000 |
Pin: |
2 Pins |
Certification: |
CE, ISO 9001 |
Materials: |
Aluminum |
Manufacturing Process: |
Casting |
Pulley Sizes: |
Type O |
Function Of The Product: |
Connector |
Weight (Kg): |
0.3 ~ 1.2 Kg |
Rated Load (Kn): |
5 ~ 80 Kn |
Diameter Of Suitable Cable (mm): |
12 ~ 120 Mm |
Transport Package: |
Wooden Box / Customized Required |
Specification: |
Aluminium / Alloy Steel |
Trademarks Of The Product: |
MARSHINE |
Place Of Origin: |
China |
HS Code: |
8467890000 |
Pin: |
2 Pins |
Certification: |
CE, ISO 9001 |
Materials: |
Aluminum |

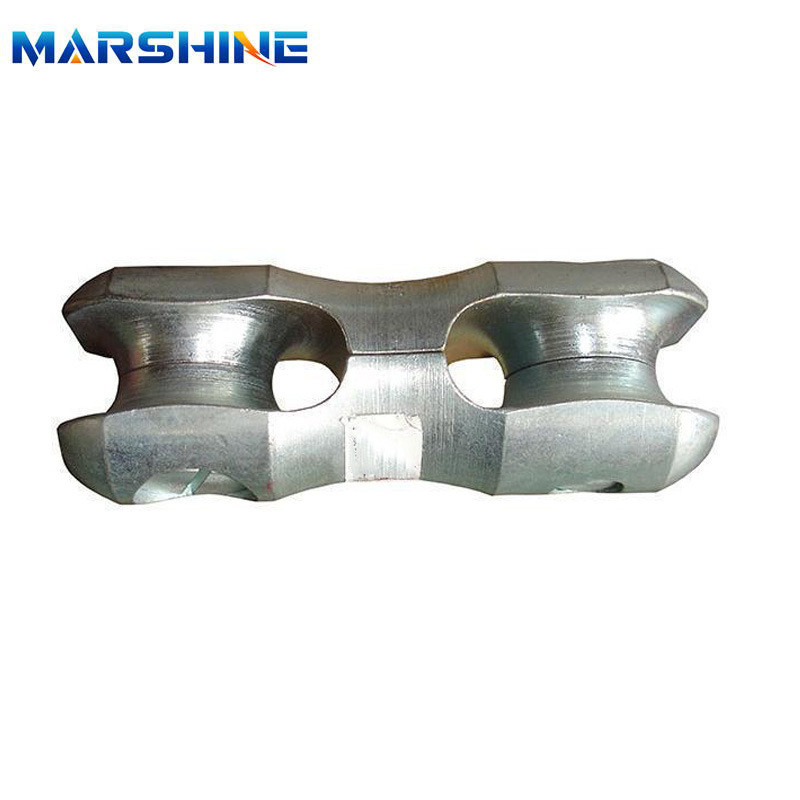

Heavy Duty 8-Shape Bend Resistant Connector
Our Marshine's Heavy-Duty 8-Shaped Anti Bending Connector is not only sturdy and durable, but also of excellent quality. With its strong tensile and torsional properties, this product will not deform during long-term use. In addition, we promise that all factory products will undergo strict quality control before being delivered to customers. At the same time, we also provide high-quality after-sales service. If there are any quality issues, you can contact us at any time for a return. With high quality and good manufacturing process, the service life can be long.
| Item Number | Model | Main Dimension (mm) | Rated Load (kN) | Weight (kg) | |||
| A | B | C | D | ||||
| 17101 | SL8-3 | 32 | 94 | 60 | 15 | 30 | 0.3 |
| 17102 | SL8-5 | 42 | 116 | 70 | 18 | 50 | 0.8 |
| 17103 | SL8-8 | 50 | 141 | 85 | 24 | 80 | 1.2 |
To support the Transmission work, Marshine Power has Braided Steel Rope And Accessories, Cable Tightening Device, Cable Reel Spool And Stand, Conductor Pulley, Cable Conveyor , Cable Compression Cutting Machine- all are OEM and with the professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
