80Kn Overhead Line Hydraulic Puller Tensioner Transmission Line Cable Stringing Equipment

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: MAR-YZ2 X 40B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: US$10000-US$100000

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:
Weight:
4850
Bottom Of Groove Diameter:
1500
Engine Power/Speed:
51/2500
Dimensions:
4.5X2.2X2.8
Continuous Tension:
2X35/1X70
Max Speed Back:
2X1.5
Transport Package:
Carton Box
Specification:
1500
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Condition:
New
Feature:
Fire/Flame Retardant
Max Tension:
2X40/1X80
Weight:
4850
Bottom Of Groove Diameter:
1500
Engine Power/Speed:
51/2500
Dimensions:
4.5X2.2X2.8
Continuous Tension:
2X35/1X70
Max Speed Back:
2X1.5
Transport Package:
Carton Box
Specification:
1500
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Condition:
New
Feature:
Fire/Flame Retardant
Max Tension:
2X40/1X80
Product Description

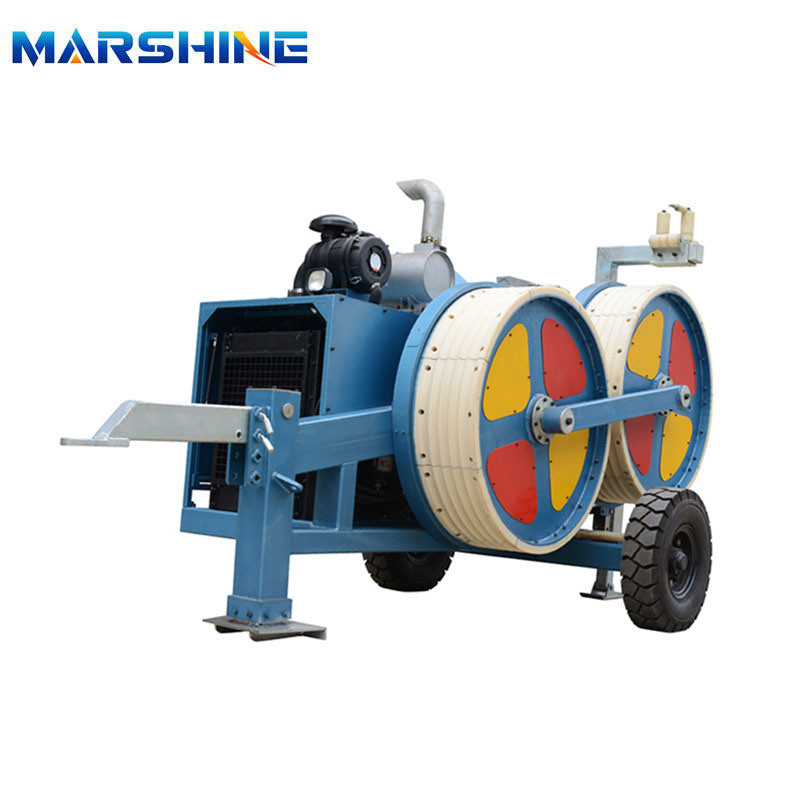

80KN Overhead Line Hydraulic Puller Tensioner Transmission Line Cable Stringing Equipment


Our MAR-YZ2×40B Hydraulic Tensioner is designed to facilitate the stringing of various types of conductors and earth wires, offering the flexibility of both one-pull-one and one-pull-two configurations.

Featuring an infinitely variable tension control system, the MAR-YZ2×40B enables constant-tension conductor stringing operations, ensuring precise and consistent performance. In the event of a hydraulic failure, the built-in spring-applied hydraulically released multi-plate brake engages automatically, enhancing operational safety.

Moreover, our product is equipped with two sets of hydraulic power output interfaces, allowing seamless connection to hydraulic conductor reel stands for enhanced efficiency. The bullwheel is specially lined with wear-resistant MC nylon material, ensuring durability and reliable performance in various conditions.



Usage:
Ideal for stringing various conductors and earth wires, suitable for both single conductor or two bundle conductor applications.

Features:

1. The bull wheel is fortified with wear-resistant MC nylon lining segments for extended durability.
2. Experience precise tension control with our infinitely variable tension system, ensuring consistent conductor stringing.
3. Prioritizing safety, our hydraulic release brake automatically engages in the event of hydraulic failure.
4. Seamlessly connect to hydraulic conductor reel stands via the two attached sets of hydraulic power output interfaces.



Essential Parameters

Model
MAR-YZ2*40B Hydraulic Tensioner
Maximum Tension (kN)
2× 40 or 1× 80
Continuous Tension (kN)
2× 35 or 1× 70
Maximum Speed (km/h)
5
Bullwheel Bottom of Groove Diameter (mm)
Φ1500
Number of Grooves
2× 5
Maximum Pullback (kN)
2× 40 or 1× 80
Maximum Speedback (km/h)
2× 1.5
Maximum Diameter of Suitable Conductor (mm)
Φ40
Engine Power / Speed (kW/rpm)
51/2500
Dimensions (mm)
4500 × 2200 × 2800
Weight (kg)
4850

Main Components
Engine
Beinei Deutz air cooled diesel engine
Main Pump/Motor Rexroth
Reducer
RR (Italian)
Main Hydraulic Valve Rexroth
Radiator
AKG
Hydraulic Instrument WIKA
Option
If use Deutz (Germany) diesel engine,the model is MAR-YZ2×40A,item number:07191
Others
As per customer specifications, our MAR-YZ2×40B Hydraulic Tensioner can be equipped with mobile control consoles upon request. This feature allows one operator to effortlessly control two machines simultaneously, streamlining the process for conducting 4-conductor stringing operations using two machines. The control consoles are identified by the item number 07193.
