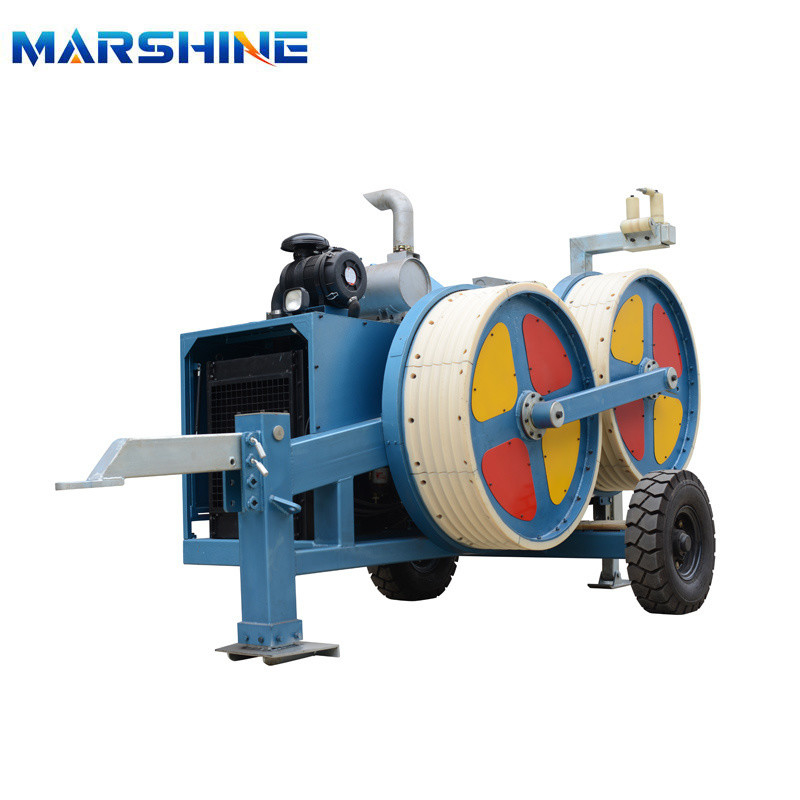

Flame Retardant Conductor Hydraulic Cable Tensioner Stringing Equipment

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: MAR-YZ40A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: US$10000-US$100000

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:

Hydraulic Cable Tensioner Stringing Equipment

,

Flame Retardant Hydraulic Cable Tensioner

,

Flame Retardant conductor tensioner

Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.4X1.8X2.4m
Continuous Tension:
35kn
Max Speed Back:
3
Max Tension:
40kn
Weight:
2800kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
37/2800
Transport Package:
Carton Box
Specification:
40kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Package Size:
340.00cm * 180.00cm * 240.00cm
Package Gross Weight:
2800.000kg
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.4X1.8X2.4m
Continuous Tension:
35kn
Max Speed Back:
3
Max Tension:
40kn
Weight:
2800kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
37/2800
Transport Package:
Carton Box
Specification:
40kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Package Size:
340.00cm * 180.00cm * 240.00cm
Package Gross Weight:
2800.000kg
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Product Description

Overhead Line Construction Cable Stringing Equipment Transmission Power Line Hydraulic Puller Tensioner


Our MAR-YZ40A Hydraulic Tensioner is designed to facilitate the tension stringing operation for various steel wire ropes, conductors, and earth wires. It features a bullwheel lined with durable and abrasion-resistant MC nylon material, with an ultra-wide groove spacing for enhanced versatility.

One of its standout features is its ability to achieve constant-tension conductor stringing, thanks to its infinitely variable tension control mechanism. This ensures precise control throughout the stringing process, maintaining the integrity of the installation.

Safety is paramount, and in the event of hydraulic failure, our tensioner is equipped with a spring-applied hydraulically released multi-plate brake. This safety mechanism engages automatically, guaranteeing safe operation and preventing accidents.

Furthermore, our MAR-YZ40A Hydraulic Tensioner includes a hydraulic-power output interface. This interface is specifically designed to seamlessly connect with the shaft bracket of hydraulic wire equipment, enhancing efficiency and compatibility in your operations.

For reliable and efficient tension stringing operations, trust in the performance and safety features of our MAR-YZ40A Hydraulic Tensioner.


Uses: It's used for stringing various steel wire ropes, conductors and earth wires.


Here's an alternative expression of the features:

1. Durable Bull Wheel: Equipped with wear-resistant MC nylon lining segments, the bull wheel ensures lasting performance under demanding conditions.

2. Flexible Tension Control: Enjoy precise tension adjustments with infinite variability, enabling consistent tension control for conductor stringing, maintaining optimal installation quality.

3. Automatic Safety Brake: In the event of hydraulic failure, the spring-applied hydraulic release brake engages automatically, swiftly halting operations to uphold safety standards.

4. Convenient Power Output Interface: Seamlessly connect to hydraulic conductor reel stands with the attached hydraulic power output interface, facilitating efficient workflow integration.



Main Components

Model
SA-YZ40 Hydraulic Tensioner
Maximum Tension (kN)
40
Continuous Tension (kN)
35
Maximum Speed (km/h)
5
Bullwheel Bottom of Groove Diameter (mm)
Φ1200
Number of Grooves
5
Maximum Pullback (kN)
40
Maximum Speedback (km/h)
3
Maximum Diameter of Suitable Conductor (mm)
Φ32
Engine Power / Speed (kW/rpm)
51/2500
Dimensions (mm)
3400× 1800× 2400
Weight (kg)
2800

Main Components
Engine
Beinei Deutz air cooled diesel engine
Main Pump/Motor
Rexroth
Reducer
RR (Italian)
Main hydraulic valve
Rexroth
Cable Stringing Equipment Transmission Power Line Hydraulic Puller Tensioner



Marshine Power offers a comprehensive range of transmission support equipment, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. Our products are OEM and manufactured to the highest standards in compliance with ISO 9001:2008. Trusted by customers in over 50 countries worldwide, we ensure reliability and performance in every product.

Customization is available for specialized items such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories have no minimum order quantity requirements, ensuring accessibility for all your needs.

Whether you require technical assistance or have specific product requirements, our team is dedicated to providing solutions tailored to your needs. Feel free to reach out to us for any inquiries or assistance. Thank you for considering Marshine Power as your transmission support partner.


Cable Stringing Equipment Transmission Power Line Hydraulic Puller TensionerCable Stringing Equipment Transmission Power Line Hydraulic Puller Tensioner
