Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ2X70
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X70/1X140, 2X800/1X160 |
Dimensions: |
5.3X2.3X2.9 |
Continuous Tension: |
2X65/1X130, 2X70/1X140 |
Max Pull Back: |
2X63/1X126kn |
Usage: |
Overhead Transmission Line Conductor |
Weight: |
8500 |
Bottom Of Groove Diameter: |
1700 |
Engine Power/Speed: |
82.5/2500 Kw/Rpm |
Transport Package: |
Carton Box |
Specification: |
1700 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
600.00cm * 500.00cm * 400.00cm |
Package Gross Weight: |
5.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Samples: |
US$ 50000/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X70/1X140, 2X800/1X160 |
Dimensions: |
5.3X2.3X2.9 |
Continuous Tension: |
2X65/1X130, 2X70/1X140 |
Max Pull Back: |
2X63/1X126kn |
Usage: |
Overhead Transmission Line Conductor |
Weight: |
8500 |
Bottom Of Groove Diameter: |
1700 |
Engine Power/Speed: |
82.5/2500 Kw/Rpm |
Transport Package: |
Carton Box |
Specification: |
1700 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
600.00cm * 500.00cm * 400.00cm |
Package Gross Weight: |
5.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Samples: |
US$ 50000/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

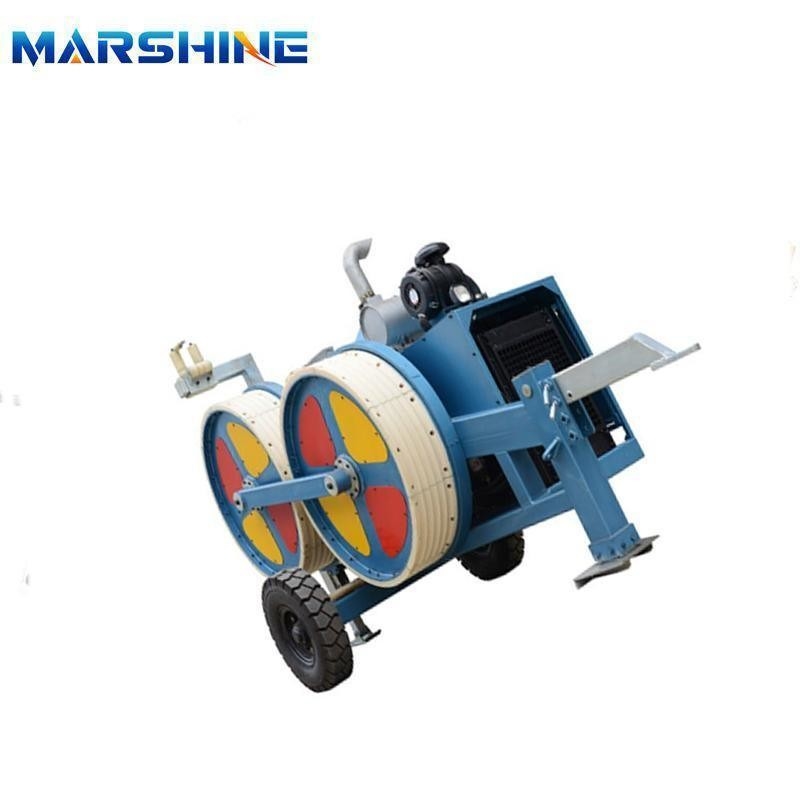

Hydraulic Conductor Tensioner 14 Ton Tension Stringing Equipment
Our MAR-YZ2×70 / MAR-YZ2×80 Hydraulic Tensioner is engineered with a spring-applied hydraulically released multi-plate brake, providing autonomous functionality to address hydraulic failure scenarios and enhance operational safety. Furthermore, our product features dual sets of hydraulic power output interfaces, facilitating seamless connection with hydraulic conductor reel stands.
The bullwheel of our hydraulic tensioner is equipped with wear-resistant MC nylon lining segments, ensuring durability and reliability. With an infinitely variable tension control system, our product enables consistent tension stringing operations, ensuring optimal performance.
Application:
Designed for stringing various conductors and earth wires, suitable for single conductor or two bundle conductor stringing.
Key Features:
1. Bull wheel features wear-resistant MC nylon lining segments.
2. Offers infinitely variable tension control for consistent tension stringing of conductors.
3. Equipped with a spring-applied hydraulic released brake for automatic engagement in case of hydraulic failure, ensuring safety.
4. Comes with two sets of hydraulic power output interfaces for seamless connection with hydraulic conductor reel stands.
Essential Parameters
| Item Number | 07198 |
07199 |
| Model Number | MAR-YZ2×70 |
MAR-YZ2×80 |
| Maximum Tension (kN) | 2×70 or 1×140 |
2×80 or 1×160 |
| Continuous Tension(kN) | 2×65 or 1×130 |
2×75 or 1×150 |
| Maximum Speed (km/h) | 5 |
|
| Bullwheel Bottom of Groove Diameter (mm) | Φ1700 |
|
| Number of Grooves | 2× 5 |
|
| Maximum Pullback (kN) | 2× 63 or 1× 126 |
|
| Maximum Speedback (km/h) | 2× 1.6 |
|
| Maximum Diameter of Suitable Conductor (mm) | Φ45 |
|
| Engine Power /Speed (kW/rpm) | 82.5/2500 |
|
| Dimensions (mm) | 5300× 2300 × 2900 |
|
| Weight (kg) | 8500 |
|
| Engine | Deutz (Germany) air-cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Main Hydraulic Valve | Rexroth |
| Reducer | RR (Italian) |
Marshine Power is committed to supporting transmission projects with a comprehensive range of equipment. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. All of our products are OEM and manufactured to the highest standards in accordance with ISO 9001:2008 regulations. Trusted by customers in over 50 countries worldwide, our equipment ensures reliable performance.
We understand the unique requirements of transmission projects, which is why we offer customization options for items such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories are available without minimum order quantities.
Whether you need assistance with technical issues or have specific product requirements, our team is here to help. Please feel free to reach out to us for support. Thank you for considering Marshine Power as your partner for transmission equipment needs.
