Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ2*35
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
4.4X2.1X2.6 |
Continuous Tension(Kn): |
2X30/1X60 |
Max Speed Back: |
2X2.1 |
Max Tension(Kn): |
2X35/1X70 |
Weight: |
4000kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
51/2500 |
Transport Package: |
Carton Box |
Specification: |
1200 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
440.00cm * 210.00cm * 260.00cm |
Package Gross Weight: |
4000.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
4.4X2.1X2.6 |
Continuous Tension(Kn): |
2X30/1X60 |
Max Speed Back: |
2X2.1 |
Max Tension(Kn): |
2X35/1X70 |
Weight: |
4000kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
51/2500 |
Transport Package: |
Carton Box |
Specification: |
1200 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
440.00cm * 210.00cm * 260.00cm |
Package Gross Weight: |
4000.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

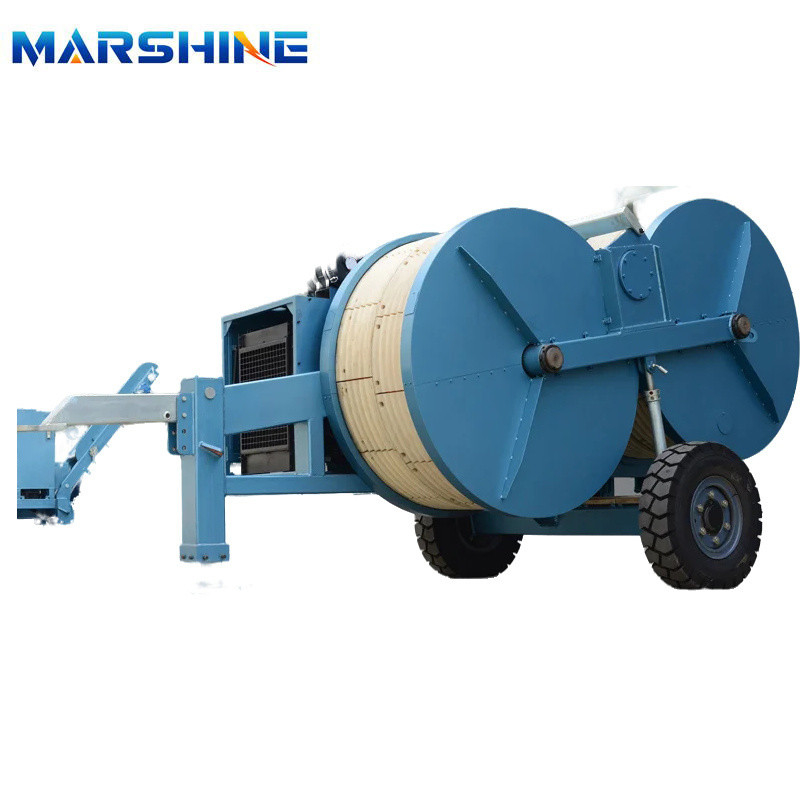

Hydraulic Cable Tensioner 70KN Overhead Transmission Conductor Stringing Equipment
The MAR-YZ2×35 Hydraulic Tensioner is designed to accommodate various types of conductors and ground wires. Its unique feature lies in its ability to achieve constant-tension conductor stringing through infinitely variable tension control.
Furthermore, our MAR-YZ2×35 Hydraulic Tensioner is equipped with two sets of hydraulic power output interfaces, allowing seamless connection to hydraulic conductor reel stands. In the event of hydraulic failure, a spring-applied, hydraulically released multi-plate brake automatically engages to ensure safety.
The bullwheel of this product is constructed with MC nylon lining segments, providing exceptional wear resistance and durability.
Applications:
The MAR-YZ2×35 Hydraulic Tensioner is designed for stringing a variety of conductors and ground wires, making it suitable for single conductor or double bundle conductor stringing tasks.
Key Features:
1. Durable bull wheel equipped with wear-resistant MC nylon lining segments.
2. Offers infinitely variable tension control for precise conductor stringing with constant tension.
3. Automatic engagement of the spring-applied, hydraulically released brake ensures safety in the event of hydraulic failure.
4. Includes attached hydraulic power output interfaces for seamless connection to hydraulic conductor reel stands.
Main Components
| Model | MAR-YZ70 Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 35 or 1× 70 |
| Continuous Tension (kN) | 2× 30 or 1× 60 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 30 or 1× 60 |
| Maximum Speedback (km/h) | 2× 2.1 |
| Maximum Diameter of Suitable Conductor (mm) | Φ32 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4400 × 2100× 2600 |
| Weight (kg) | 4000 |
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Reducer | Rexroth |
| Main hydraulic valve | Rexroth |
Marshine Power is your trusted partner for transmission work, offering a wide range of high-quality equipment including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. All our products are OEM and manufactured to the highest standards, adhering to ISO 9001:2008 certification. Trusted by customers in over 50 countries worldwide, we provide reliable solutions for your transmission needs.
We understand the importance of customization, which is why we offer tailored solutions such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories are available without minimum order quantities (MOQ), ensuring flexibility for your requirements.
Whether you need assistance with technical issues or have specific product requirements, our team is here to help. Feel free to reach out to us for any inquiries or support. Thank you for choosing Marshine Power.
