Hydraulic Puller Tensioner Within Bottom Of Groove

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: MAR-YZ30A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: US$10000-US$100000

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:
Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.6X1.8X2.4m
Continuous Tension:
25kn
Number Of Groove:
20
Max Tension:
30kn
Weight:
1700kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
11/2200
Transport Package:
Carton Box
Specification:
25kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Package Size:
360.00cm * 160.00cm * 230.00cm
Package Gross Weight:
1700.000kg
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.6X1.8X2.4m
Continuous Tension:
25kn
Number Of Groove:
20
Max Tension:
30kn
Weight:
1700kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
11/2200
Transport Package:
Carton Box
Specification:
25kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Package Size:
360.00cm * 160.00cm * 230.00cm
Package Gross Weight:
1700.000kg
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Product Description

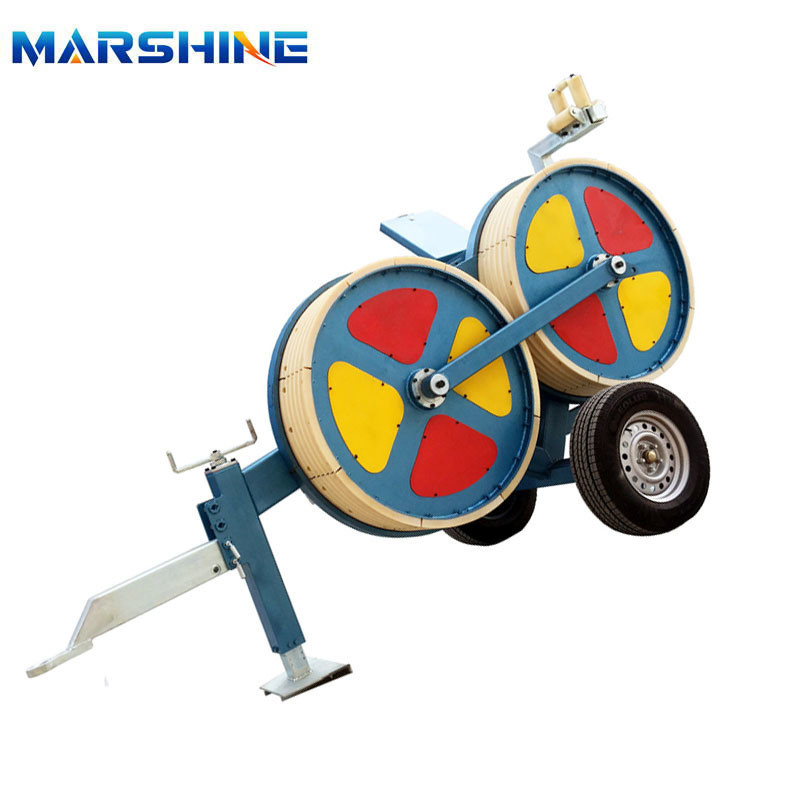

3 Ton Hydraulic Puller Tensioner


Product Description



Our MAR-YZ30A Hydraulic Tensioner is designed as an optimal solution for releasing a diverse range of electric conductors and ground. It is well-suited for the tension stringing operations of both Optical Fiber Composite Overhead Ground Wire (OPGW) and All-Dielectric Self-Supporting Optic Fiber Cable (ADSS).

Featuring a bullwheel lined with wear-resistant MC nylon lining segments, the MAR-YZ30A ensures durability and reliable performance. Its infinitely variable pay-off tension capability enables consistent tension stringing operations. Additionally, in the event of hydraulic failure, the spring-applied hydraulically released multi-plate brake engages automatically, ensuring safe operation.

This versatile tensioner is utilized for stringing various conductors and earth wires, including OPGW, ADSS, and more, making it an indispensable tool for transmission projects.



Features:
1. The bull wheel is equipped with MC nylon lining segments known for their wear-resistant properties.
2. Enjoy precise tension control with our infinitely variable tension system, allowing for constant tension conductor stringing.
3. Safety is paramount with our spring-applied hydraulic release brake, which automatically engages in the event of hydraulic failure to ensure safe operations.

Product Parameters



Main Components

Model
MAR-YZ30 Hydraulic Tensioner
Maximum Tension (kN)
30
Continuous Tension (kN)
25
Maximum Speed (km/h)
5
Bullwheel Bottom of Groove Diameter (mm)
Φ1200
Number of Grooves
5
Maximum Pullback (kN)
20
Maximum Diameter of Suitable Conductor (mm)
Φ32
Engine Power / Speed (kW/rpm)
11/2200
Dimensions (mm)
3560 × 1600 × 2220
Weight (kg)
1700


Main Components
Engine
Chinese famous water-cooled diesel engine
Main Pump/Motor
Chinese famous branded pump and motor
Reducer
EUROPAIR (Italian)
Option
If use Honda gasoline engine (Product Model: MAR-YZ30B, Item number: 07156)
3 Ton Hydraulic Puller Tensioner
