Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ30A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
3.6X1.8X2.4m |
Continuous Tension: |
25kn |
Number Of Groove: |
20 |
Max Tension: |
30kn |
Weight: |
1700kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
11/2200 |
Transport Package: |
Carton Box |
Specification: |
30kn |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
360.00cm * 160.00cm * 230.00cm |
Package Gross Weight: |
1700.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
3.6X1.8X2.4m |
Continuous Tension: |
25kn |
Number Of Groove: |
20 |
Max Tension: |
30kn |
Weight: |
1700kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
11/2200 |
Transport Package: |
Carton Box |
Specification: |
30kn |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
360.00cm * 160.00cm * 230.00cm |
Package Gross Weight: |
1700.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

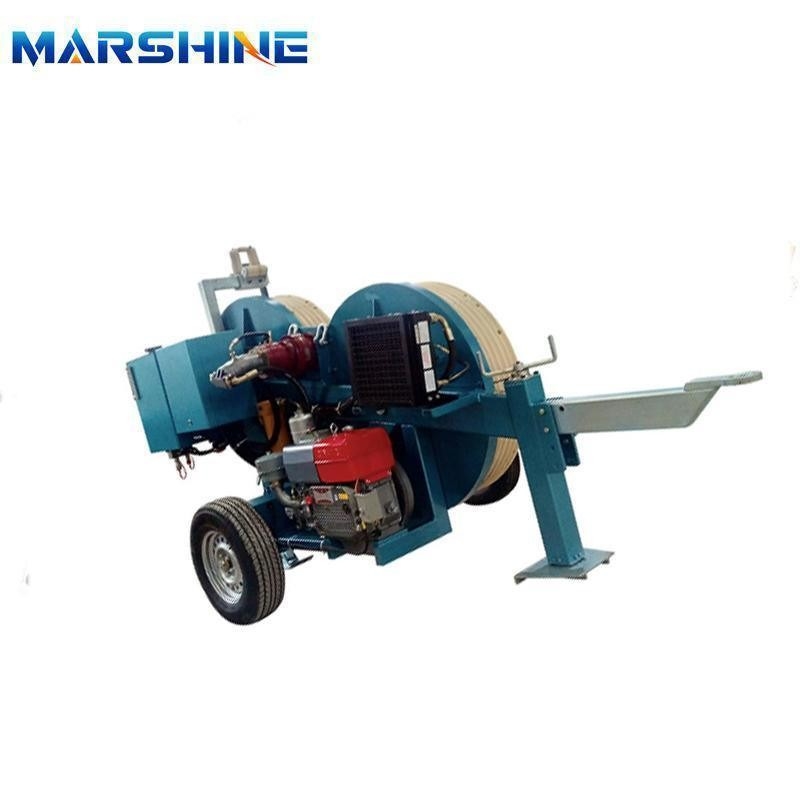

Overhead Line Construction Tools Tension Stringing Equipment 30kn Hydraulic Tensioner
Applications: Our equipment is designed for the installation of various types of conductors and earth wires, including OPGW and ADSS.
Key Features:
- The bull wheel is equipped with durable MC nylon lining segments to resist wear.
- It offers infinitely adjustable tension control, ensuring consistent tension throughout conductor stringing operations.
- In the event of hydraulic failure, a spring-applied hydraulic brake engages automatically, prioritizing safety.
Main Components
| Model | MAR-YZ30 Hydraulic Tensioner |
| Maximum Tension (kN) | 30 |
| Continuous Tension (kN) | 25 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
| Number of Grooves | 5 |
| Maximum Pullback (kN) | 20 |
| Maximum Diameter of Suitable Conductor (mm) | Φ32 |
| Engine Power / Speed (kW/rpm) | 11/2200 |
| Dimensions (mm) | 3560 × 1600 × 2220 |
| Weight (kg) | 1700 |
| Engine | Chinese famous water-cooled diesel engine |
| Main Pump/Motor | Chinese famous branded pump and motor |
| Reducer | EUROPAIR (Italian) |
| Option | If use Honda gasoline engine (Product Model: MAR-YZ30B, Item number: 07156) |
To support transmission operations effectively, Marshine Power offers a comprehensive range of equipment including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools and Stands. All of these products are OEM and manufactured to the highest standards in compliance with ISO 9001:2008. They are distributed to over 50 countries worldwide. Customization options are available for certain items such as emergency restoration towers and crossing structures. Safety tools and accessories have no minimum order quantity requirement. Our team is ready to assist you with technical inquiries or product needs. Feel free to reach out to us for support. Thank you.
1. Training and Support:
Marshine specializes in the development, design, and manufacturing of electrical construction equipment and tools. In addition to offering a wide range of international standard products, OEM, and custom solutions, we provide comprehensive services including quality tracking and service monitoring.
2. Product Quality Assurance:
Our products are meticulously manufactured to meet strict national and international standards. Each item undergoes rigorous testing before delivery. For access to our quality certification and various test reports, please feel free to reach out to us.
3. Why Choose Us?
Choosing Marshine means gaining access to excellent service, top-notch quality, and competitive pricing. We prioritize customer satisfaction and offer smooth delivery of goods along with effective customer solutions tailored to your needs.
4. Customer Inquiry:
In case of emergencies or general inquiries, customers can utilize various online communication channels such as online chat, Skype, WhatsApp, or WeChat for faster and more efficient communication. We guarantee a response to any inquiry within 12 working hours.
5. Sample Acquisition:
We offer free samples to buyers for testing purposes, with the freight charges borne by the buyer. Existing samples typically ship within 2-3 days. In case of items out of stock, we will provide an estimated delivery date.
6. Packing and Shipping:
All goods are securely packed in plywood boxes to ensure safe transportation over long distances. We support various shipment terms including EXW, FOB, CIF, and CFR, and provide all required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., for smooth shipping processes.
