Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ2 X 40B
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X40/1X80 |
Weight: |
4850 |
Bottom Of Groove Diameter: |
1500 |
Engine Power/Speed: |
51/2500 |
Dimensions: |
4.5X2.2X2.8 |
Continuous Tension: |
2X35/1X70 |
Max Speed Back: |
2X1.5 |
Transport Package: |
Carton Box |
Specification: |
2X40/1X80 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
450.00cm * 220.00cm * 280.00cm |
Package Gross Weight: |
4850.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X40/1X80 |
Weight: |
4850 |
Bottom Of Groove Diameter: |
1500 |
Engine Power/Speed: |
51/2500 |
Dimensions: |
4.5X2.2X2.8 |
Continuous Tension: |
2X35/1X70 |
Max Speed Back: |
2X1.5 |
Transport Package: |
Carton Box |
Specification: |
2X40/1X80 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
450.00cm * 220.00cm * 280.00cm |
Package Gross Weight: |
4850.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

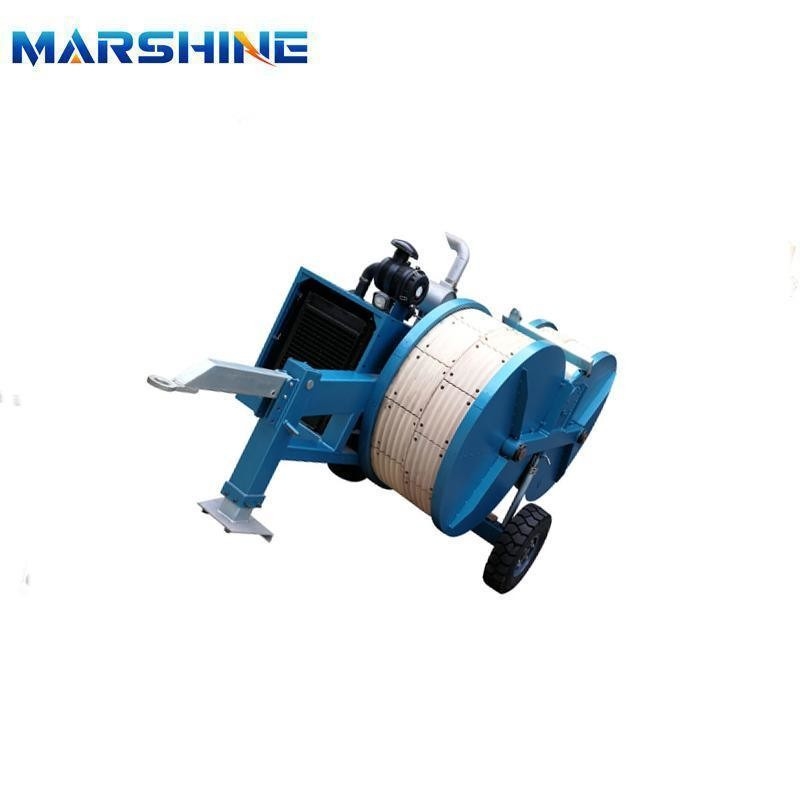

Wire Tension Device Cable Stringing Equipment 2X40kn Hydraulic Tensioner
Our MAR-YZ2×40B Hydraulic Tensioner is engineered for stringing a wide range of conductors and earth wires, offering versatility for both single-pull and double-pull operations.
With its infinitely variable tension control system, the MAR-YZ2×40B ensures consistent tension throughout conductor stringing tasks, guaranteeing precise and efficient operations. In the event of hydraulic failure, the spring-applied, hydraulically released multi-plate brake engages automatically, prioritizing safety.
Moreover, the design includes two sets of hydraulic power output interfaces, facilitating seamless connection with hydraulic conductor reel stands. The bullwheel is specifically lined with durable MC nylon material, ensuring longevity and reliability even in demanding conditions.
Application: Ideal for stringing various conductors and earth wires, suitable for both single conductor and double bundle conductor applications.
Feature:
1. The bull wheel features wear-resistant MC nylon lining segments for enhanced durability.
2. Enjoy precise control with an infinitely variable tension system, ensuring consistent tension for conductor stringing.
3. Safety is paramount with the automatic engagement of the spring-applied hydraulic release brake in the event of hydraulic failure.
4. Easily connect to hydraulic conductor reel stands via two sets of attached hydraulic power output interfaces, ensuring seamless operation.
Essential Parameters
| Model | MAR-YZ2*40B Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 40 or 1× 80 |
| Continuous Tension (kN) | 2× 35 or 1× 70 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1500 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 40 or 1× 80 |
| Maximum Speedback (km/h) | 2× 1.5 |
| Maximum Diameter of Suitable Conductor (mm) | Φ40 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4500 × 2200 × 2800 |
| Weight (kg) | 4850 |
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Reducer | RR (Italian) |
| Main Hydraulic Valve | Rexroth |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Option | If use Deutz (Germany) diesel engine,the model is MAR-YZ2×40A,item number:07191 |
| Others | Responding to customer demand, our MAR-YZ2×40B Hydraulic Tensioner can be customized with mobile control consoles. This configuration allows a single operator to effortlessly manage two machines simultaneously, streamlining the process for conducting four-string conductor operations using a pair of machines. The control consoles are identified by the item number 07193. |
