Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YQZ40
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
4t/6t |
Dimensions: |
4.2X1.8X2.4m |
Continuous Tension: |
35kn And 55kn |
Max Pull Back: |
40kn, 60kn |
Usage: |
Transmision Line |
Weight: |
3600kg And 4800kg |
Bottom Of Groove Diameter: |
1200 |
Transport Package: |
Carton Box |
Specification: |
35kn And 55kn |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
560.00cm * 190.00cm * 240.00cm |
Package Gross Weight: |
480.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
4t/6t |
Dimensions: |
4.2X1.8X2.4m |
Continuous Tension: |
35kn And 55kn |
Max Pull Back: |
40kn, 60kn |
Usage: |
Transmision Line |
Weight: |
3600kg And 4800kg |
Bottom Of Groove Diameter: |
1200 |
Transport Package: |
Carton Box |
Specification: |
35kn And 55kn |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
560.00cm * 190.00cm * 240.00cm |
Package Gross Weight: |
480.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

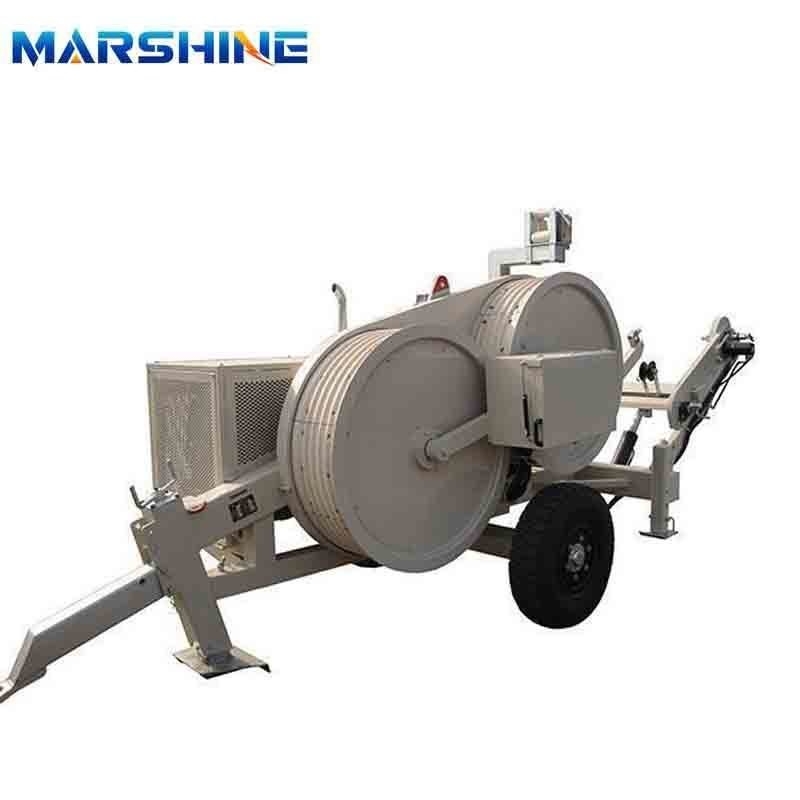

Overhead Line Construction Cable Stringing Equipment 40kn Hydraulic Puller Tensioner for Transmision Line
Our MAR-YQZ40/MAR-YQZ60 Hydraulic Puller Tensioner offers a versatile solution, capable of both pulling and tensioning conductors, making it ideal for power line replacements. The bullwheel is lined with wear-proof MC nylon segments for enhanced durability.
This product features a unique closed-type hydraulic circuit and bi-directional variable plunger pump, allowing for precise control of tension force. Key components include the Rexroth pump and motor, Italian RR reducer, and the model C attached reel winder.
Equipped with a spring-applied hydraulically released brake, our MAR-YQZ40/MAR-YQZ60 ensures high reliability and ease of operation. With a hydraulic power output interface, it can be seamlessly integrated with the model DW2240A hydraulic conductor reel stand or other compatible equipment.
Feature:
1. Our bull wheel features wear-resistant MC nylon lining segments for enhanced durability.
2. Benefit from a closed hydraulic circuit and bi-directional variable plunger pump for infinitely variable pull/tension control.
3. Equipped with top-notch components including Rexroth pump and motor, Italian RR reducer, and model C attached reel winder.
4. Ensuring safety and ease of operation, our product includes a spring-applied hydraulic release brake with overload protection.
5. Integrated with a dedicated hydraulic circuit for driving, perfectly complemented by the DW2240A matched reel stand.
Product Table
| Order Number | 07223 | 07224 | 07228 |
|
| Model | MAR-YQZ40C | MAR-YQZ40D | MAR-YQZ60 |
|
| Maximum Traction Force / Tension (kN) | 40/40 | 40/40 | 60/60 |
|
| Continuous Traction Force / Tension (kN) | 35/35 | 35/35 | 55/55 |
|
| Max. Pulling / Releasing Linespeed (km/h) | 5/5 | 5/5 | 5/5 |
|
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 | Φ1200 | φ1500 | |
| Number of Bullwheel Grooves | 5 | 5 | 6 |
|
| Max. Diameter of Suitable Rope (mm) | Φ32 | Φ32 | Φ40 |
|
| Engine | Model | Deutz F4L912(Germany ) | Cummins 4BT3.9 (DongFeng) | Deutz BF4L91 4 (Germany ) |
| Power (kW) | 51 | 60 | 82.5 |
|
| Speed (rpm) | 2500 | 2000 | 2500 |
|
| Weight (kg) | 3600 | 3200 | 4800 |
|
| Dimensions (mm) | 4170×1850×2400 | 3600×1850×2400 | 5520 × 1890 × 2400 |
|
Main Components
| Main Hydraulic Valve | Rexroth |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitable Reel | GSP1400 (Item Number: 07125C) |
Marshine Power provides a comprehensive range of OEM products tailored to support transmission work worldwide. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. All products adhere to ISO 9001:2008 standards and are distributed to over 50 countries.
We offer customization options for specialized items such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories have no minimum order quantity requirements. Whether you require assistance with technical issues or have specific product requirements, please feel free to contact us. We are dedicated to providing tailored solutions to meet your transmission needs effectively. Thank you for considering Marshine Power as your partner in transmission projects.
