Ningbo Marshine Power Technology Co.,Ltd sales@marshine.net 86-13777009159
Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ2X70
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X70/1X140, 2X800/1X160 |
Dimensions: |
5.3X2.3X2.9 |
Continuous Tension: |
2X65/1X130, 2X70/1X140 |
Max Pull Back: |
2X63/1X126kn |
Usage: |
Overhead Transmission Line Conductor |
Weight: |
8500 |
Bottom Of Groove Diameter: |
1700 |
Engine Power/Speed: |
82.5/2500 Kw/Rpm |
Transport Package: |
Carton Box |
Specification: |
1700 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
530.00cm * 230.00cm * 290.00cm |
Package Gross Weight: |
8500.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X70/1X140, 2X800/1X160 |
Dimensions: |
5.3X2.3X2.9 |
Continuous Tension: |
2X65/1X130, 2X70/1X140 |
Max Pull Back: |
2X63/1X126kn |
Usage: |
Overhead Transmission Line Conductor |
Weight: |
8500 |
Bottom Of Groove Diameter: |
1700 |
Engine Power/Speed: |
82.5/2500 Kw/Rpm |
Transport Package: |
Carton Box |
Specification: |
1700 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
530.00cm * 230.00cm * 290.00cm |
Package Gross Weight: |
8500.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

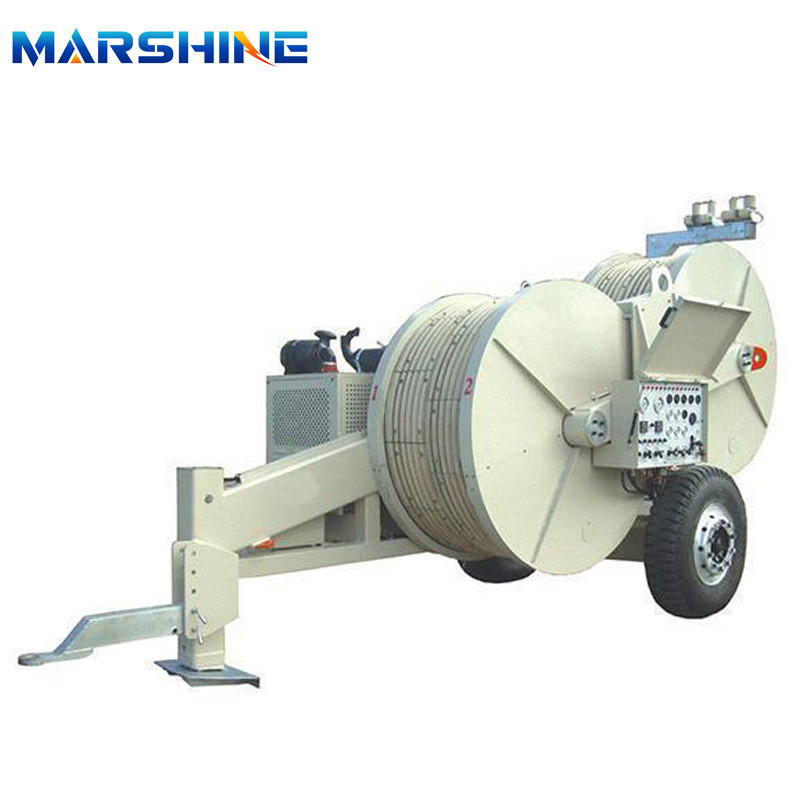

Overhead Line Cable Stringing Equipment 2X80kn Hydraulic Cable Tensioner Wire Tension Device
Our MAR-YZ2×70 / MAR-YZ2×80 Hydraulic Tensioner is equipped with a spring-applied hydraulically released multi-plate brake, ensuring automatic engagement in the event of hydraulic failure, thus enhancing operational safety. Moreover, our product features two sets of hydraulic power output interfaces for convenient connection to hydraulic conductor reel stands.
The bullwheel of our hydraulic tensioner is lined with wear-proof MC nylon segments, ensuring durability. With an infinitely variable tension control system, our product achieves constant-tension stringing, providing reliable performance during operations.
Uses: It's used for stringing various conductors and earth wires, suitable for stringing one conductor or two bundle conductors.
Feature:
1, Bull wheel with wearproof MC nylon lining segments.
2, Infinitely variable tension control and constant tension conductor stringing.
3, Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
4, Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.
Essential Parameters
| Item Number | 07198 |
07199 |
| Model Number | MAR-YZ2×70 | MAR-YZ2×80 |
| Maximum Tension (kN) | 2×70 or 1×140 | 2×80 or 1×160 |
| Continuous Tension(kN) | 2×65 or 1×130 | 2×75 or 1×150 |
| Maximum Speed (km/h) | 5 |
|
| Bullwheel Bottom of Groove Diameter (mm) | Φ1700 |
|
| Number of Grooves | 2× 5 |
|
| Maximum Pullback (kN) | 2× 63 or 1× 126 |
|
| Maximum Speedback (km/h) | 2× 1.6 |
|
| Maximum Diameter of Suitable Conductor (mm) | Φ45 |
|
| Engine Power /Speed (kW/rpm) | 82.5/2500 |
|
| Dimensions (mm) | 5300× 2300 × 2900 |
|
| Weight (kg) | 8500 |
|
| Engine | Deutz (Germany) air-cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Main Hydraulic Valve | Rexroth |
| Reducer | RR (Italian) |
Marshine Power offers a comprehensive range of transmission equipment to support your projects. Our products, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, and Cable Reel Spools and Stands, are all OEM and manufactured to meet ISO 9001:2008 standards.
With a global presence in over 50 countries, Marshine Power is trusted by customers worldwide. We provide customization options for items such as emergency restoration towers and crossing structures to meet specific project requirements. Additionally, our safety tools and accessories are available without a minimum order quantity requirement.
Whether you require assistance with technical issues or have specific product requirements, our team is ready to assist you. Please feel free to approach us for any inquiries or assistance. Thank you for considering Marshine Power as your partner in transmission work.
