Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ2X55
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: TT,LC,WESTERN UNION
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X55/1X110 |
Dimensions: |
5.0X2.3X2.7 |
Continuous Tension: |
2X50/1X100 |
Max Speed Back: |
2X2.1 |
Usage: |
Overhead Transmission |
Weight: |
7500 |
Bottom Of Groove Diameter: |
1600 |
Engine Power/Speed: |
54/2500 |
Transport Package: |
Carton Box |
Specification: |
2X2.1 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
500.00cm * 225.00cm * 380.00cm |
Package Gross Weight: |
750.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X55/1X110 |
Dimensions: |
5.0X2.3X2.7 |
Continuous Tension: |
2X50/1X100 |
Max Speed Back: |
2X2.1 |
Usage: |
Overhead Transmission |
Weight: |
7500 |
Bottom Of Groove Diameter: |
1600 |
Engine Power/Speed: |
54/2500 |
Transport Package: |
Carton Box |
Specification: |
2X2.1 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
500.00cm * 225.00cm * 380.00cm |
Package Gross Weight: |
750.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

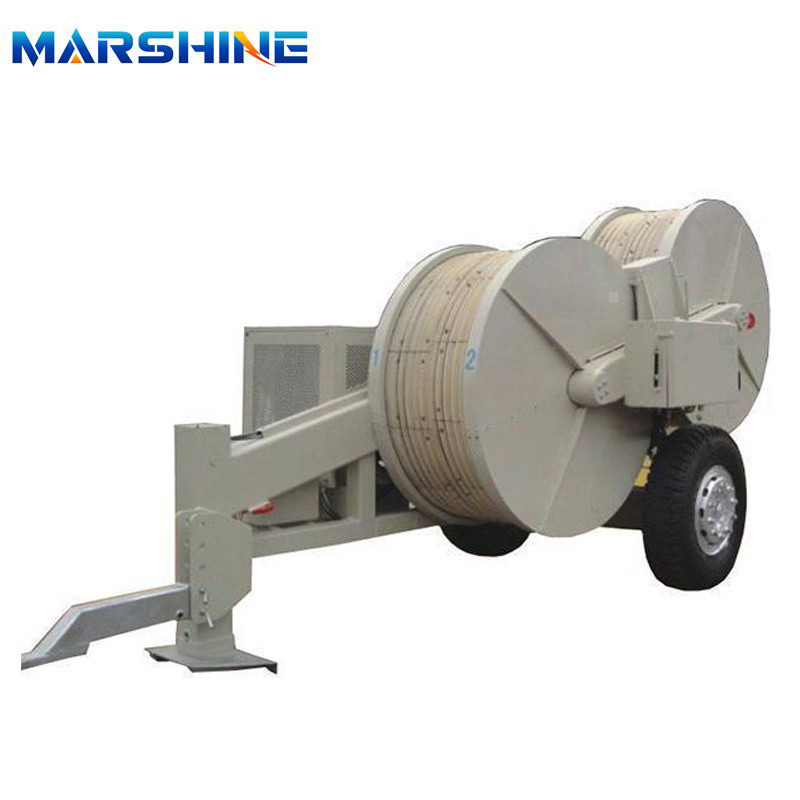

Hydraulic Cable Tensioner Stringing Equipment With MC Nylon Bullwheel
Our MAR-YZ2×55 Hydraulic Tensioner stands out for its exceptional reliability, ensuring safe and high-quality operation. Featuring a bullwheel lined with abrasion-resistant MC nylon material, it ensures durability in demanding conditions.
Equipped with an infinitely variable tension control system, this tensioner achieves consistent tension during stringing operations, facilitating efficient performance. Additionally, it offers two sets of hydraulic power output interfaces, allowing seamless connection to hydraulic conductor reel stands.
In the event of hydraulic failure, the tensioner is equipped with a spring-applied, hydraulically released brake that engages automatically, ensuring safety and preventing accidents.
Uses: It's used for stringing various conductors and earth wires, suitable for stringing one conductor or two bundle conductors.
Feature:
1. The bull wheel features MC nylon lining segments for enhanced durability.
2. Enjoy precise tension control with an infinitely variable system, ensuring constant tension conductor stringing.
3. Safety is ensured with the automatic engagement of the spring-applied hydraulic release brake in case of hydraulic failure.
4. Easily connect hydraulic conductor reel stands with the attached two sets of hydraulic power output interfaces, enhancing operational flexibility.
Essential Parameters
| Model | MAR-YZ110 Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 55 or 1× 110 |
| Continuous Tension (kN) | 2× 50 or 1× 100 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1600 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 50 or 1× 100 |
| Maximum Speedback (km/h) | 2× 2.1 |
| Maximum Diameter of Suitable Conductor (mm) | Φ42.5 |
| Engine Power / Speed (kW/rpm) | 54/2500 |
| Dimensions (mm) | 5000× 2240 × 2730 |
| Weight (kg) | 7500 |
| Engine | Deutz (Germany) air cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Main Hydraulic Valve | Rexroth |
| Reducer | RR (Italian) |
Marshine Power offers a comprehensive range of transmission equipment to support your projects, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, and Cable Reel Spools and Stands. All our products are OEM and manufactured to the highest standards, complying with ISO 9001:2008 regulations.
Our products are trusted by customers in over 50 countries worldwide. We specialize in customized solutions such as emergency restoration towers and crossing structures to meet specific project requirements. Additionally, our safety tools and accessories have no minimum order quantity requirement.
Whether you need assistance with technical issues or have specific product requirements, our team is here to help. Please feel free to approach us for any inquiries or assistance. Thank you for considering Marshine Power as your partner in transmission work.
