Hydraulic Puller Tensioner For Speed Transmission Line Stringing

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: MAR-YZ2×40B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: US$10000-US$100000

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: TT,LC,WESTERN UNION

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:
Weight:
4850
Bottom Of Groove Diameter:
1500
Engine Power/Speed:
51/2500
Dimensions:
4.5X2.2X2.8
Continuous Tension:
2X35/1X70
Max Speed Back:
2X1.5
Transport Package:
Carton Box
Specification:
1500
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Condition:
New
Feature:
Fire/Flame Retardant
Max Tension:
2X40/1X80
Weight:
4850
Bottom Of Groove Diameter:
1500
Engine Power/Speed:
51/2500
Dimensions:
4.5X2.2X2.8
Continuous Tension:
2X35/1X70
Max Speed Back:
2X1.5
Transport Package:
Carton Box
Specification:
1500
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Condition:
New
Feature:
Fire/Flame Retardant
Max Tension:
2X40/1X80
Product Description

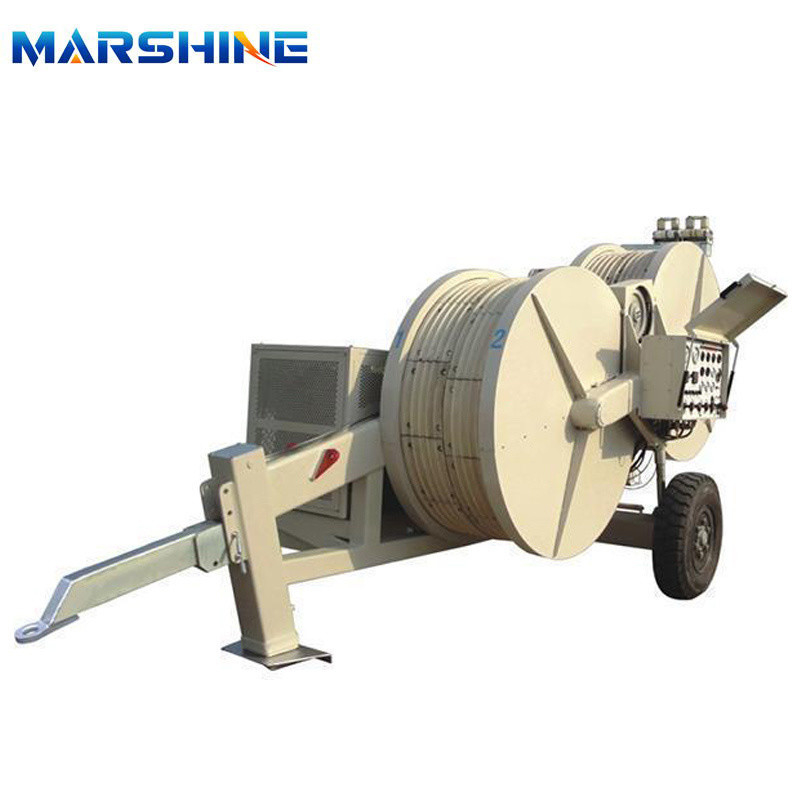

MAR-YZ2X40B Hydraulic Puller Tensioner Transmission Line Stringing Equipment

Our MAR-YZ2×40B Hydraulic Tensioner is designed for stringing various types of conductors and earth wires, offering versatility with options for both one-pull-one and one-pull-two configurations.

Thanks to its infinitely variable tension control system, the MAR-YZ2×40B ensures consistent tension during conductor stringing operations. In the event of hydraulic failure, the spring-applied hydraulically released multi-plate brake automatically engages, ensuring safety throughout the operation.

Additionally, the MAR-YZ2×40B features two sets of hydraulic power output interfaces, facilitating seamless connection to hydraulic conductor reel stands. Its bullwheel is lined with durable and wear-resistant MC nylon material, ensuring long-lasting performance.

Uses: It's used for stringing various conductors and earth wires, suitable for stringing one conductor or two bundle conductors.

Feature:

1. The bull wheel features MC nylon lining segments for enhanced durability.
2. Enjoy precise tension control with an infinitely variable system, ensuring constant tension during conductor stringing.
3. Safety is prioritized with the automatic engagement of the spring-applied hydraulic release brake in the event of hydraulic failure.
4. Seamlessly connect hydraulic conductor reel stands with the attached two sets of hydraulic power output interfaces, enhancing operational efficiency.



Essential Parameters

Model
MAR-YZ2*40B Hydraulic Tensioner
Maximum Tension (kN)
2× 40 or 1× 80
Continuous Tension (kN)
2× 35 or 1× 70
Maximum Speed (km/h)
5
Bullwheel Bottom of Groove Diameter (mm)
Φ1500
Number of Grooves
2× 5
Maximum Pullback (kN)
2× 40 or 1× 80
Maximum Speedback (km/h)
2× 1.5
Maximum Diameter of Suitable Conductor (mm)
Φ40
Engine Power / Speed (kW/rpm)
51/2500
Dimensions (mm)
4500 × 2200 × 2800
Weight (kg)
4850

Main Components
Engine
Beinei Deutz air cooled diesel engine
Main Pump/Motor Rexroth
Reducer
RR (Italian)
Main Hydraulic Valve Rexroth
Radiator
AKG
Hydraulic Instrument WIKA
Option
If use Deutz (Germany) diesel engine,the model is MAR-YZ2×40A,item number:07191
Others
As per customer specifications, our MAR-YZ2×40B Hydraulic Tensioner can be equipped with mobile control consoles. These consoles enable a single operator to conveniently control two machines simultaneously, facilitating the efficient stringing of four conductors using two machines. The control consoles are identified by item number 07193.

Marshine Power offers a comprehensive range of transmission equipment to support your needs. Our products, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, and Cable Reel Spools and Stands, are all OEM and manufactured to meet ISO 9001:2008 standards.

With a global presence in over 50 countries, Marshine Power is trusted by customers worldwide. We specialize in customizing items such as emergency restoration towers and crossing structures to meet specific project requirements. Additionally, our safety tools and accessories have no minimum order quantity requirement.

Whether you require assistance with technical issues or have specific product requirements, our team is here to help. Please feel free to reach out to us for any inquiries or assistance. Thank you for considering Marshine Power as your partner in transmission work.


SA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing Equipment
SA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing EquipmentSA-Yz2X40b Hydraulic Puller Tensioner Transmission Line Stringing Equipment
