Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ2*35
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
4.4X2.1X2.6 |
Continuous Tension(Kn): |
2X30/1X60 |
Max Speed Back: |
2X2.1 |
Max Tension(Kn): |
2X35/1X70 |
Weight: |
4000kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
51/2500 |
Transport Package: |
Carton Box |
Specification: |
4000kg |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
600.00cm * 500.00cm * 400.00cm |
Package Gross Weight: |
5.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Samples: |
US$ 50000/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
4.4X2.1X2.6 |
Continuous Tension(Kn): |
2X30/1X60 |
Max Speed Back: |
2X2.1 |
Max Tension(Kn): |
2X35/1X70 |
Weight: |
4000kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
51/2500 |
Transport Package: |
Carton Box |
Specification: |
4000kg |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
600.00cm * 500.00cm * 400.00cm |
Package Gross Weight: |
5.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Samples: |
US$ 50000/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

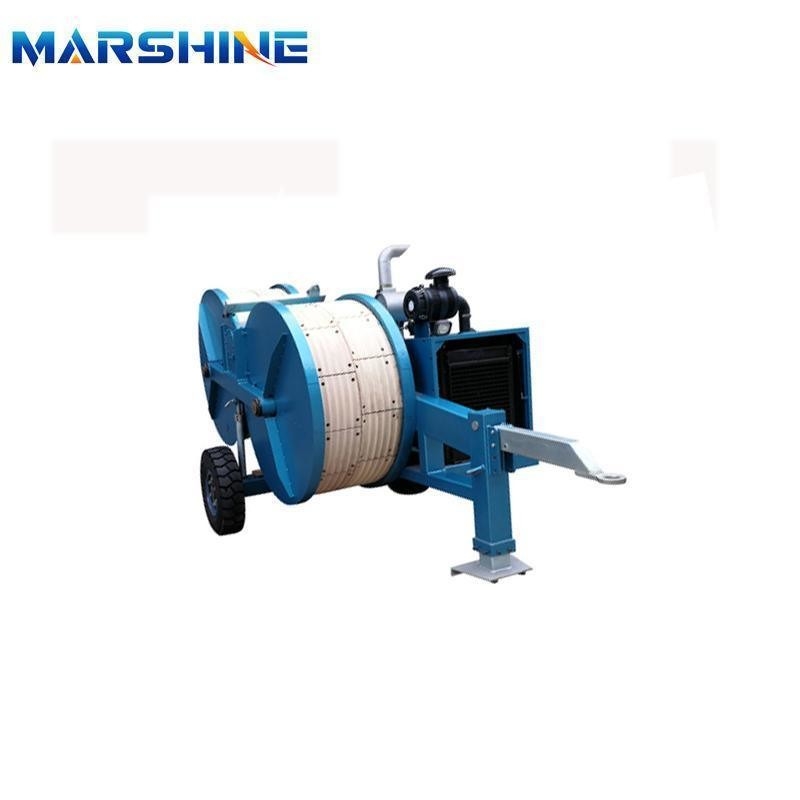

70KN Cable Stringing Equipment Puller Tensioner for Sale
The MAR-YZ2×35 Hydraulic Tensioner is designed for stringing various conductors and ground wires, maintaining constant tension through its infinitely variable tension control system.
Additionally, it features two sets of hydraulic power output interfaces for easy connection to hydraulic conductor reel stands. In the event of hydraulic failure, the spring-applied hydraulically released multi-plate brake engages automatically, enhancing safety during operations.
Moreover, the bullwheel of this product is equipped with MC nylon lining segments, known for their wear resistance and durability.
Uses: It's used for stringing various conductors and earth wires, suitable for stringing one conductor or two bundle conductors.
Features:
1. Bull wheel featuring wear-resistant MC nylon lining segments.
2. Precise tension control for seamless adjustment and consistent tension during conductor stringing.
3. Automatic engagement of spring-applied hydraulic release brake in the event of hydraulic failure, ensuring safety.
4. Equipped with a hydraulic power output interface for seamless connection to hydraulic conductor reel stands.
Main Components
| Model | MAR-YZ70 Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 35 or 1× 70 |
| Continuous Tension (kN) | 2× 30 or 1× 60 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 30 or 1× 60 |
| Maximum Speedback (km/h) | 2× 2.1 |
| Maximum Diameter of Suitable Conductor (mm) | Φ32 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4400 × 2100× 2600 |
| Weight (kg) | 4000 |
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Reducer | Rexroth |
| Main hydraulic valve | Rexroth |
Marshine Power offers a comprehensive range of transmission equipment including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools and Stands. Our products are OEM and manufactured to the highest standards, compliant with ISO 9001:2008. Trusted by customers in over 50 countries worldwide, we ensure top-notch quality and reliability.
Additionally, we specialize in customized solutions such as Emergency Restoration Towers and Crossing Structures. With no minimum order quantity (MOQ) required for safety tools and accessories, we are committed to meeting your specific technical and product requirements. Feel free to reach out to us for any technical issues or product inquiries. We're here to assist you. Thank you.
