Hydraulic Puller-Tensioner For Underground Cables Equipment

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: MAR-YZ30A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: US$10000-US$100000

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:
Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.6X1.8X2.4m
Continuous Tension:
25kn
Number Of Groove:
20
Max Tension:
30kn
Weight:
1700kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
11/2200
Transport Package:
Carton Box
Specification:
25kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Package Size:
360.00cm * 160.00cm * 230.00cm
Package Gross Weight:
1700.000kg
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.6X1.8X2.4m
Continuous Tension:
25kn
Number Of Groove:
20
Max Tension:
30kn
Weight:
1700kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
11/2200
Transport Package:
Carton Box
Specification:
25kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Package Size:
360.00cm * 160.00cm * 230.00cm
Package Gross Weight:
1700.000kg
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Product Description

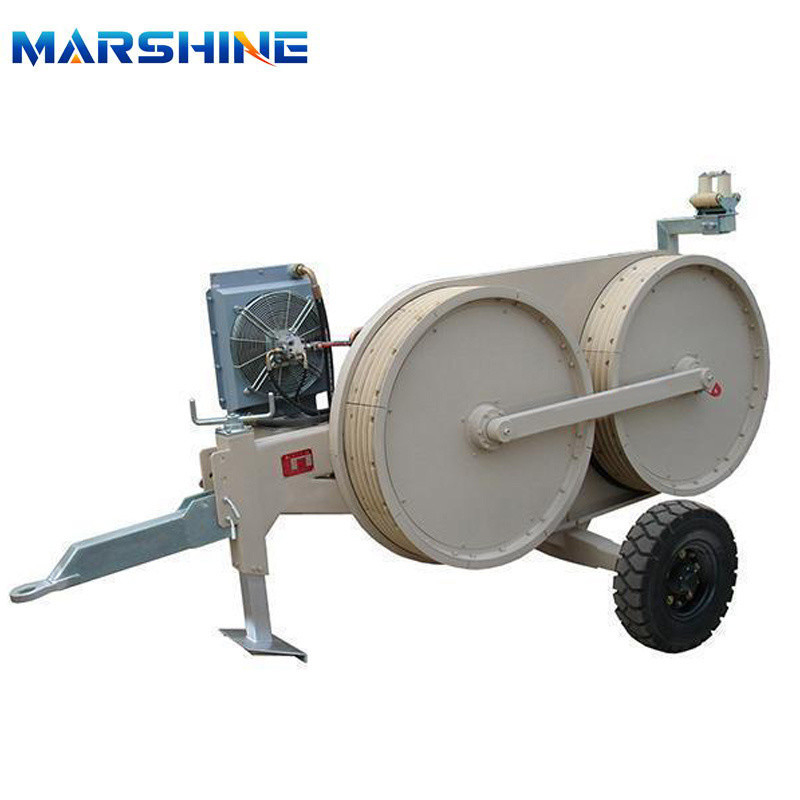

Underground Cables Equipment MAR-YZ30A Hydraulic Puller-Tensioner

Our MAR-YZ30A Hydraulic Tensioner is the perfect solution for releasing various electric conductors and ground, catering to a wide range of applications. It's designed to handle tension stringing operations for both optical fiber composite overhead ground wire (OPGW) and all-dielectric self-supporting optic fiber cable (ADSS) with ease.

Featuring a bullwheel lined with wear-resistant MC nylon segments, our tensioner ensures durability and reliability even in rugged conditions. With infinitely variable pay-off tension control, it facilitates consistent tension stringing, enhancing efficiency during operations.

For added safety, the tensioner is equipped with a spring-applied hydraulically released multi-plate brake, which automatically engages in case of hydraulic failure, ensuring smooth and secure operation at all times.


Application:
This equipment is utilized for the installation of diverse conductors and earth wires, encompassing OPGW, ADSS, and more.

Key Attributes:
1. Durable bull wheel, furnished with wear-resistant MC nylon lining segments.
2. Infinitely adjustable tension control mechanism facilitates consistent tension stringing for conductors.
3. Automatic engagement of a spring-applied hydraulic release brake ensures operational safety, activating in the event of hydraulic failure.



Main Components

Model
MAR-YZ30 Hydraulic Tensioner
Maximum Tension (kN)
30
Continuous Tension (kN)
25
Maximum Speed (km/h)
5
Bullwheel Bottom of Groove Diameter (mm)
Φ1200
Number of Grooves
5
Maximum Pullback (kN)
20
Maximum Diameter of Suitable Conductor (mm)
Φ32
Engine Power / Speed (kW/rpm)
11/2200
Dimensions (mm)
3560 × 1600 × 2220
Weight (kg)
1700


Main Components
Engine
Chinese famous water-cooled diesel engine
Main Pump/Motor
Chinese famous branded pump and motor
Reducer
EUROPAIR (Italian)
Option
If use Honda gasoline engine (Product Model: MAR-YZ30B, Item number: 07156)



Marshine Power offers a comprehensive range of transmission equipment, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. All our products are OEM and manufactured to the highest standards, compliant with ISO 9001:2008. With a global presence in over 50 countries, we ensure top-quality products for your transmission needs.

Customization options are available for items like Emergency Restoration Towers and Crossing Structures. Moreover, our safety tools and accessories have no minimum order quantity (MOQ), providing flexibility for your requirements.

Whether you need assistance with technical issues or have specific product requirements, please don't hesitate to contact us. We are here to support you. Thank you for considering Marshine Power.




Underground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-Tensioner
Underground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-TensionerUnderground Cables Equipment SA-Yz30A Hydraulic Puller-Tensioner

1. Training and services.
Marshine is a company specializing in the development, design and manufacture of electrical construction equipment and tools. We not only manufacture and sell international standard products, OEM and custom products, but also provide quality tracking and service monitoring.

2. How about the quality of your products?
Our products are manufactured in strict accordance with national and international standards, and each product is tested before delivery. If you would like to view our quality certification and various test reports, please consult us.

3. Why do you choose us?
Because we can provide you with excellent service, quality and reasonable price. In addition, we can also provide smooth delivery of goods, excellent customer solutions.

4. Customer inquiry.
If there is an emergency, customers can also use online contact methods (online Chat, Skype, WhatsApp, wechat) for faster and better communication. Any enquiry will be answered within 12 working hours.

5. How to obtain samples?
We can provide free samples to the buyer for testing, but the buyer needs to pay the freight. Existing samples take 2-3 days. If there is no stock, we will advise the delivery date.

6. How about packing and shipping?
All goods will be packed in plywood boxes for safe, long haul transport. Support EXW, FOB, CIF, CFR terms.
Required documents such as packing list, commercial invoice, bill of lading, air waybill, CO, Form E, Form F etc will be provided.


Note: If you do not find the product you need, please feel free to contact us. We will provide the best quotation as soon as we verify your requirements.
