Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ30A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
3.6X1.8X2.4m |
Continuous Tension: |
25kn |
Number Of Groove: |
20 |
Max Tension: |
30kn |
Weight: |
1700kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
11/2200 |
Transport Package: |
Carton Box |
Specification: |
25kn |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
360.00cm * 160.00cm * 220.00cm |
Package Gross Weight: |
1700.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Dimensions: |
3.6X1.8X2.4m |
Continuous Tension: |
25kn |
Number Of Groove: |
20 |
Max Tension: |
30kn |
Weight: |
1700kg |
Bottom Of Groove Diameter: |
1200 |
Engine Power/Speed: |
11/2200 |
Transport Package: |
Carton Box |
Specification: |
25kn |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
360.00cm * 160.00cm * 220.00cm |
Package Gross Weight: |
1700.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

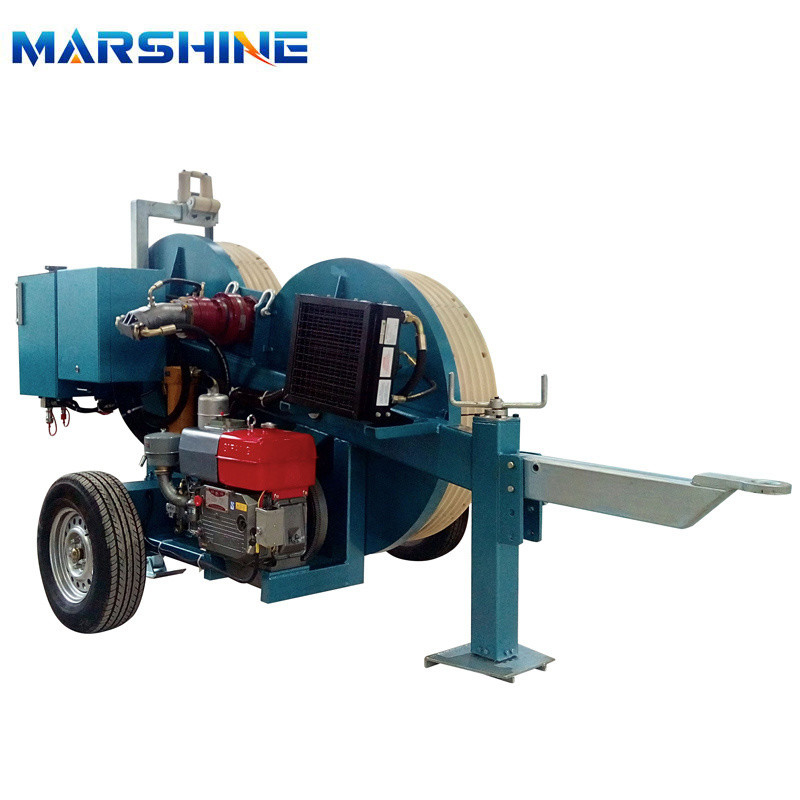

Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
Our MAR-YZ30A Hydraulic Tensioner is engineered for the precise handling of various electric conductors and ground materials. It is specifically designed to facilitate tension stringing operations for optical fiber composite overhead ground wire (OPGW) and all-dielectric self-supporting optic fiber cable (ADSS).
Featuring a bullwheel with durable MC nylon lining segments, our tensioner ensures robust performance and longevity. Its innovative design allows for infinitely variable pay-off tension control, enabling seamless constant tension stringing.
For enhanced safety, our tensioner is equipped with a spring-applied hydraulically released multi-plate brake mechanism. In the event of hydraulic failure, this system automatically engages to maintain safe and reliable operation.
Application:
This equipment is utilized for the stringing of a wide array of conductors and earth wires, encompassing OPGW, ADSS, and similar materials.
Key Features:
1. Robust bull wheel equipped with wear-resistant MC nylon lining segments.
2. Enables precise tension control with infinite variability, facilitating consistent tension stringing for conductors.
3. Safety is ensured through the automatic activation of a spring-applied hydraulic release brake in the event of hydraulic failure.
Main Components
| Model | MAR-YZ30 Hydraulic Tensioner |
| Maximum Tension (kN) | 30 |
| Continuous Tension (kN) | 25 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
| Number of Grooves | 5 |
| Maximum Pullback (kN) | 20 |
| Maximum Diameter of Suitable Conductor (mm) | Φ32 |
| Engine Power / Speed (kW/rpm) | 11/2200 |
| Dimensions (mm) | 3560 × 1600 × 2220 |
| Weight (kg) | 1700 |
| Engine | Chinese famous water-cooled diesel engine |
| Main Pump/Motor | Chinese famous branded pump and motor |
| Reducer | EUROPAIR (Italian) |
| Option | If use Honda gasoline engine (Product Model: MAR-YZ30B, Item number: 07156) |
Marshine Power provides a comprehensive range of transmission equipment, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. All our products are OEM and manufactured to the highest standards, meeting ISO 9001:2008 requirements. Trusted by customers in over 50 countries worldwide, we ensure top-quality products for transmission work.
Customization options are available for items like Emergency Restoration Towers and Crossing Structures. Additionally, our safety tools and accessories have no minimum order quantity (MOQ), providing flexibility for your needs.
Whether you require assistance with technical issues or have specific product requirements, feel free to reach out to us. We are here to assist you. Thank you for considering Marshine Power.
