30Kn Power Overhead Stringing Hydraulic Puller Tensioner For Tensioning Applications

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: MAR-YZ30A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: US$10000-US$100000

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:
Continuous Tension:
25kn
Number Of Groove:
20
Max Tension:
30kn
Weight:
1700kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
11/2200
Transport Package:
Carton Box
Specification:
30kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.6X1.8X2.4m
Continuous Tension:
25kn
Number Of Groove:
20
Max Tension:
30kn
Weight:
1700kg
Bottom Of Groove Diameter:
1200
Engine Power/Speed:
11/2200
Transport Package:
Carton Box
Specification:
30kn
HS Code:
8467890000
Supply Ability:
100 Sets Per Month
Type:
Hydraulic Tensioner
Certification:
CE, ISO
Customized:
Customized
Condition:
New
Feature:
Fire/Flame Retardant
Dimensions:
3.6X1.8X2.4m
Product Description

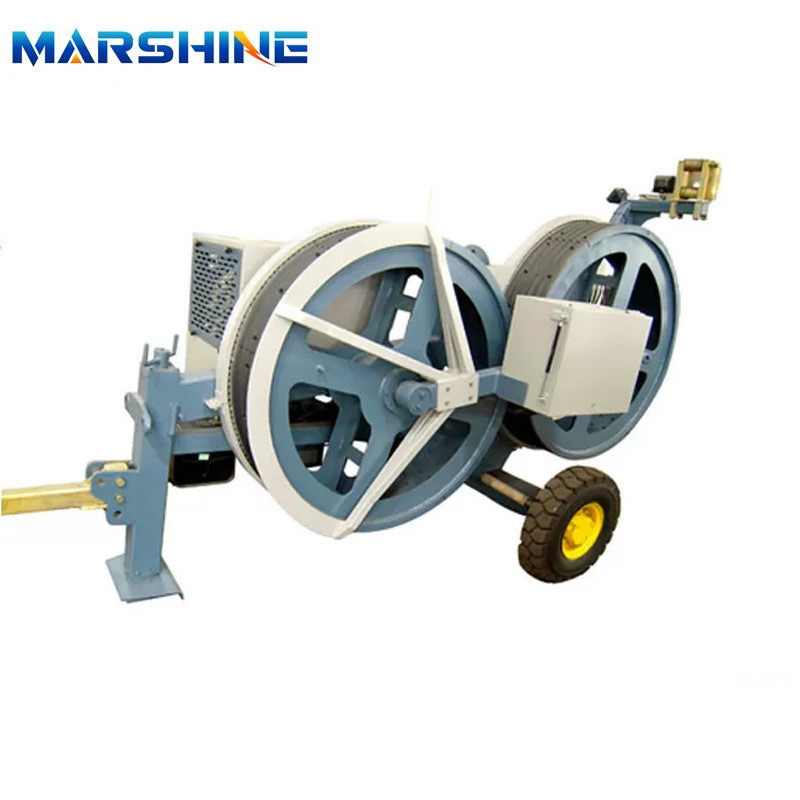

3T Power Overhead Stringing Hydraulic Puller Tensioner

Our MAR-YZ30A Hydraulic Tensioner is perfect for releasing various electric conductors and grounding operations. It's versatile, suitable for tension stringing with both optical fiber composite overhead ground wire (OPGW) and all-dielectric self-supporting optic fiber cable (ADSS).

The bullwheel of our MAR-YZ30A Hydraulic Tensioner is designed with wear-resistant MC nylon lining segments. Plus, its infinitely variable pay-off tension feature enables consistent tension stringing. Should there be a hydraulic failure, the spring-applied hydraulically released multi-plate brake kicks in automatically, ensuring safe operation.



Applications: Suitable for stringing a variety of conductors and ground wires, such as OPGW, ADSS, and more.

Key Features:
1. Bull wheel equipped with durable MC nylon lining segments for enhanced wear resistance.
2. Offers infinitely variable tension control, enabling consistent tension stringing of conductors.
3. Automatic activation of the spring-applied hydraulic release brake in the event of hydraulic failure ensures operational safety.



Main Components

Model
MAR-YZ30 Hydraulic Tensioner
Maximum Tension (kN)
30
Continuous Tension (kN)
25
Maximum Speed (km/h)
5
Bullwheel Bottom of Groove Diameter (mm)
Φ1200
Number of Grooves
5
Maximum Pullback (kN)
20
Maximum Diameter of Suitable Conductor (mm)
Φ32
Engine Power / Speed (kW/rpm)
11/2200
Dimensions (mm)
3560 × 1600 × 2220
Weight (kg)
1700


Main Components
Engine
Chinese famous water-cooled diesel engine
Main Pump/Motor
Chinese famous branded pump and motor
Reducer
EUROPAIR (Italian)
Option
If use Honda gasoline engine (Product Model: MAR-YZ30B, Item number: 07156)
3t Power Overhead Stringing Hydraulic Puller Tensioner

Marshine Power provides essential equipment to support transmission work worldwide. Our range includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools and Stands, all manufactured to OEM standards and rigorously produced in accordance with ISO 9001:2008. Our products are trusted in over 50 countries.

We also offer customized solutions for items such as emergency restoration towers and crossing structures. Additionally, safety tools and accessories are available without minimum order quantity restrictions. Whether you need assistance with technical issues or have specific product requirements, we're here to help. Reach out to us anytime. Thank you for considering Marshine Power.

3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner
3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner3t Power Overhead Stringing Hydraulic Puller Tensioner
