Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MB506
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Max Speed: |
3.1 Mph (5 Km/H) |
Net Weight: |
17, 000 Lbs (7, 710 Kg) |
Overall Length: |
212 In (5, 385 Mm) |
Overall Width: |
102 In (2, 590 Mm) |
Highth: |
110 In (2, 795 Mm) |
Transport Package: |
Industrial Packing |
Specification: |
212 In (5, 385 Mm) |
HS Code: |
8425399000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Certificate: |
ISO |
Transportation: |
Ocean, Land, Air |
Max Pull: |
2 X 10, 100 Lbf (2 X 45 Kn) |
Speed At Max Pull: |
1.5 Mph (2.4 Km/H) |
Max Speed: |
3.1 Mph (5 Km/H) |
Net Weight: |
17, 000 Lbs (7, 710 Kg) |
Overall Length: |
212 In (5, 385 Mm) |
Overall Width: |
102 In (2, 590 Mm) |
Highth: |
110 In (2, 795 Mm) |
Transport Package: |
Industrial Packing |
Specification: |
212 In (5, 385 Mm) |
HS Code: |
8425399000 |
Supply Ability: |
30PCS/Month |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Certificate: |
ISO |
Transportation: |
Ocean, Land, Air |
Max Pull: |
2 X 10, 100 Lbf (2 X 45 Kn) |
Speed At Max Pull: |
1.5 Mph (2.4 Km/H) |

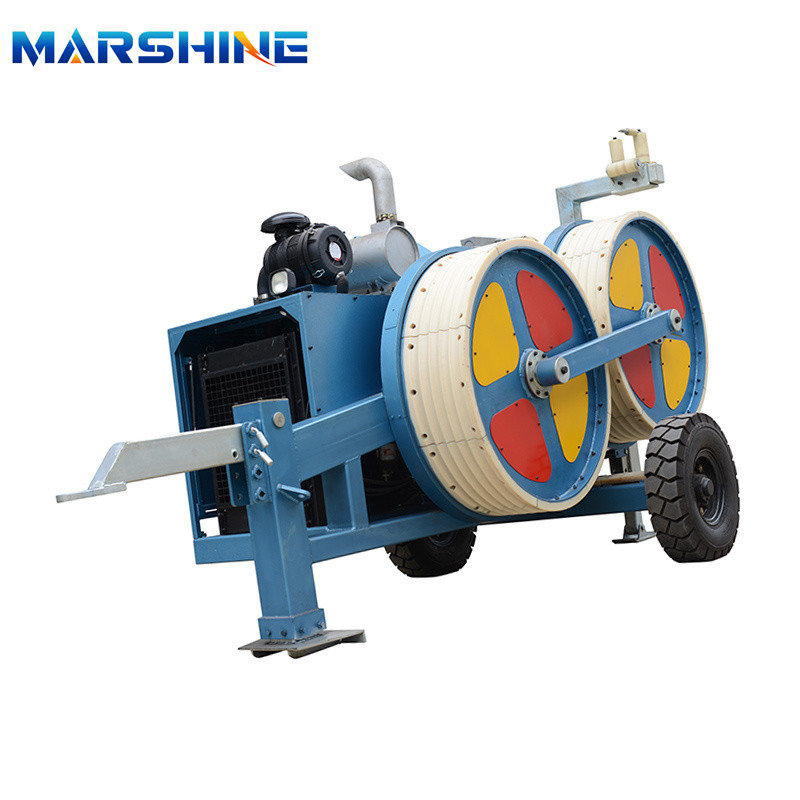

90Kn of Pulling Capacity Hydraulic Puller Tensioner
The MB506 is equipped with two pairs of bull-wheels, each with completely independent controls, providing either 2 x 10,100 lbf (45 KN) or 1 x 20,200 lbf (90 KN) of pulling or tensioning capacity. It is specifically designed to accommodate the stringing of one or two ropes or bundled conductors.
The bull-wheel grooves on the MB506 are constructed from high-resistance interchangeable nylon sectors, ensuring durability and reliability during operations. Additionally, wear-proof thermally and chemically treated steel bull-wheel grooves are also available for enhanced performance.
Main Components
| Max pull | 2 x 10,100 lbf (2 x 45 kN) or 1 x 20,200 lbf (1 x 90 kN) |
| Speed at max pull | 1.5 mph (2.4 km/h) |
| Max speed | 3.1 mph (5 km/h) |
| Pull at max speed | 2 x 4,950 lbf (2 x 22 kN) or 1 x 9,900 lbf (1 x 44 kN) |
| Puller Performance |
|---|
| Note: the basic machine performance is calculated at 68°F (20°C) and at sea level | |
| Max tension | 2 x 10,100 lbf (2 x 45 kN or 1 x 20,200 lbf (1 x 90 kN) |
| Max speed | 3.1 mph (5 km/h) |
| Tensioner Performance | |
|---|---|
| Bull-wheel diameter | 59 1/16 in (1,500 mm) |
| Max conductor diameter | 1 9/16 in (40 mm) |
| Max rope diameter | 11/16 in (18 mm) |
| Weight | 13,669 lbs (6,200 kg) |
| Characteristics |
|---|
| Diesel | 140 hp (104 kW) |
| Cooling system | water |
| Electrical system | 12 V |
| Engine |
|---|
| 2 closed hydraulic circuits for stepless speed variation in both rotating directions. This machine is provided with 2 pull pre-setting systems that maintain the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. | |
| Hydraulic Transmission | |
|---|---|
| Net Weight | 17,000 lbs (7,710 kg) |
| Overall Length | 212 in (5,385 mm) |
| Overall Width | 102 in (2,590 mm) |
| Height | 110 in (2,795 mm) |
| General Specifications - DOT |
|---|
Marshine Power is your trusted partner in transmission projects, offering a comprehensive range of OEM products designed and manufactured to the highest standards under ISO 9001:2008 certification. Our product portfolio includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands.
With a global presence spanning over 50 countries, we are committed to providing top-quality solutions for transmission work. We specialize in customization, offering tailored solutions for items such as emergency restoration towers and crossing structures to meet specific project requirements.
Moreover, our safety tools and accessories come with the flexibility of no minimum order quantity, ensuring accessibility for all your safety needs. Whether you require assistance with technical issues or have specific product requirements, our team is here to assist you. Feel free to reach out to us for any inquiries or support. Thank you for considering Marshine Power as your reliable partner in transmission projects.
