Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: DQ40
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Hauling Speed (M/Min): |
0~12 |
Length Of Steel Rope (M): |
650 |
Motor Power (HP): |
24 |
Motor Rotational Speed (Rpm): |
2000 |
Weight (Kg): |
2000 |
Transport Package: |
Industrial Packing |
Specification: |
650 |
HS Code: |
8502120000 |
Supply Ability: |
30PCS/Month |
Package Size: |
300.00cm * 160.00cm * 170.00cm |
Package Gross Weight: |
2000.000kg |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Continuous Pulling Force (Kn): |
40 |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Hauling Speed (M/Min): |
0~12 |
Length Of Steel Rope (M): |
650 |
Motor Power (HP): |
24 |
Motor Rotational Speed (Rpm): |
2000 |
Weight (Kg): |
2000 |
Transport Package: |
Industrial Packing |
Specification: |
650 |
HS Code: |
8502120000 |
Supply Ability: |
30PCS/Month |
Package Size: |
300.00cm * 160.00cm * 170.00cm |
Package Gross Weight: |
2000.000kg |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Continuous Pulling Force (Kn): |
40 |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

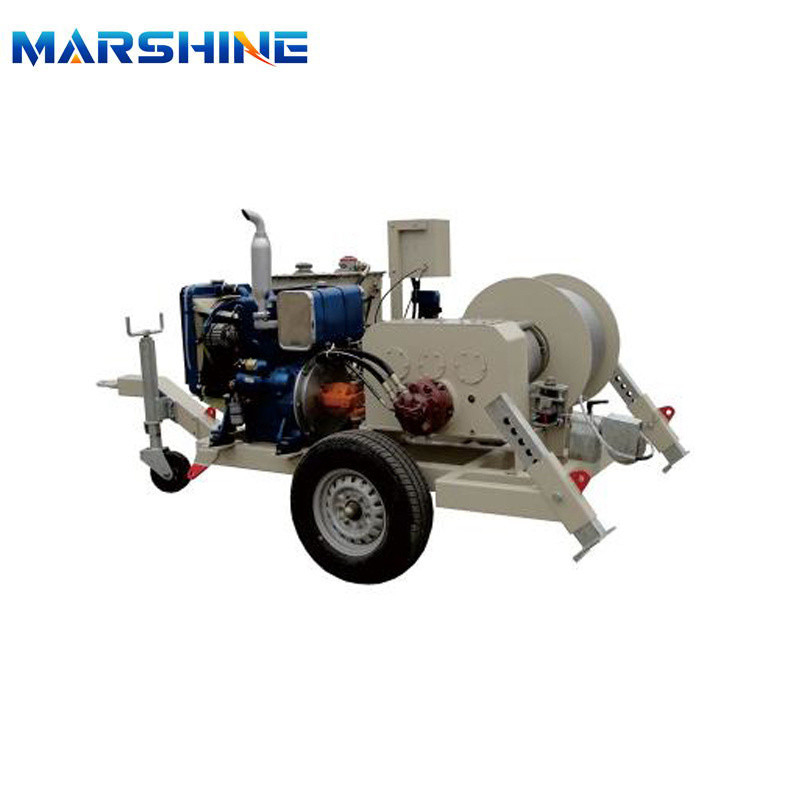

Underground Cable Pulling Machine DQ40 Hydraulic Cable Puller
Our DQ40 cable puller is specifically designed for underground cable stringing operations. Utilizing a hydraulic transmission system, it offers infinitely variable speed control and over-pull protection for enhanced safety. Additionally, this product boasts automatic rope winding functionality, streamlining the cable installation process. Moreover, it is equipped with a measuring device to accurately set the pulling length, ensuring precise and efficient cable installations.
Main Components
| Engine | Cum mins(USA) water-cooled diesel engine |
| Main Variable Displacement Pump,Main motor | Rexroth(BOSC H) |
| Reducer | Rexroth(BOSC H) |
| Main Hydraulic Valve | Rexroth(BOSC H) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitbale Drum | Model GSP1400 |
| Option | Cum mins water-cooled diesel motor |
|
Item Number |
21131 |
21135 |
|
|
Model |
DQ20 |
DQ40 |
|
|
Maximum Continuous Pulling Force (kN) |
20 |
40 |
|
|
Hauling Speed (m/min) |
0~14 |
0~12 |
|
|
Diameter of Steel Rope (mm) |
Φ9.3 |
Φ11 |
|
|
Length of Steel Rope (m) |
600 |
650 |
|
|
Motor |
Power (hp) |
13 |
24 |
|
Rotational Speed (rpm) |
1800 |
2000 |
|
|
Overall Dimensions (m) |
3.27×1.13×1.65 |
3.67×1.60×1.65 |
|
|
Weight (kg) |
650 |
2000 |
|
1. Our hydraulic puller offers steplessly adjustable pulling speed and traction force for precise control during operations.
2. The line pull gauge provides visual display of the pull in the rope, allowing for accurate monitoring of the tension.
3. Equipped with an overload automatic protection system, ensuring safety by preventing excessive strain on the equipment.
4. Users can preset the maximum traction force for conductor stringing operations, optimizing efficiency and safety.
5. Featuring a spring applied hydraulically released brake, our hydraulic puller ensures secure operation even in the event of sudden motor shutdown or hydraulic failure.
6. With the steel wire rope automatically winding device, the rope is arranged automatically for convenience during loading and unloading operations.
Marshine Power is dedicated to supporting transmission projects worldwide with our extensive range of OEM products. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. Each of these products is professionally manufactured to meet ISO 9001:2008 standards, ensuring high quality and reliability.
Our products are trusted by professionals in over 50 countries around the globe. We also offer customization options for specialized items such as emergency restoration towers and crossing structures, tailored to meet the unique requirements of your projects. Furthermore, our safety tools and accessories have no minimum order quantity requirement, providing flexibility for your procurement needs.
Whether you require assistance with technical issues or have specific product requirements, our team is here to help. Please feel free to reach out to us for any inquiries or assistance you may need. Thank you for considering Marshine Power as your partner in transmission work.
