Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YQ30
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Continuous Tractive Effort (Kn): |
25 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
7 |
Engine Power / Speed (Kw/Rpm): |
31/2200 |
Weight (Kg): |
1500 |
Transport Package: |
Industrial Packing |
Specification: |
1500 |
HS Code: |
8502120000 |
Supply Ability: |
30PCS/Month |
Package Size: |
6000.00cm * 5000.00cm * 4000.00cm |
Package Gross Weight: |
45000.000kg |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
30 |
Samples: |
US$ 30000/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Continuous Tractive Effort (Kn): |
25 |
Maximum Pulling Speed (Km/H): |
5 |
Number Of Bullwheel Grooves: |
7 |
Engine Power / Speed (Kw/Rpm): |
31/2200 |
Weight (Kg): |
1500 |
Transport Package: |
Industrial Packing |
Specification: |
1500 |
HS Code: |
8502120000 |
Supply Ability: |
30PCS/Month |
Package Size: |
6000.00cm * 5000.00cm * 4000.00cm |
Package Gross Weight: |
45000.000kg |
After-sales Service: |
1 Year |
Warranty: |
1 Year |
Maximum Traction Force (Kn): |
30 |
Samples: |
US$ 30000/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

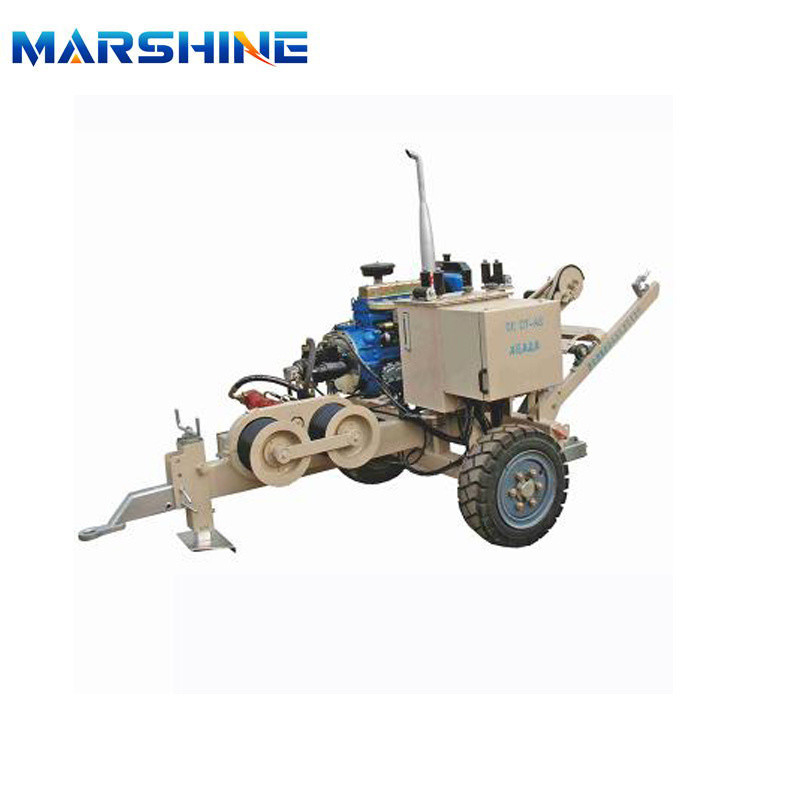

Stringing Equipment Hydraulic Puller For High Tension Line
Our MAR-YQ30 Hydraulic Puller offers steplessly adjustable pulling speed and traction force, with the pull in the rope visually displayed on the line pull gauge for easy monitoring. It is equipped with an overload automatic protection system, allowing users to preset the maximum traction force for conductor stringing operations.
In addition, the hydraulic puller features a spring-applied hydraulically released brake that automatically engages to ensure secure operation, even in the event of motor shutdown or hydraulic failure.
Moreover, our MAR-YQ30 Hydraulic Puller is fitted with a steel wire rope automatically winding device, simplifying rope arrangement and facilitating convenient loading and unloading processes.
Main Components
| Engine | Cummins(USA) water-cooled diesel engine |
| Main Variable Displacement Pump,Main motor | Rexroth(BOSCH) |
| Reducer | Rexroth(BOSCH) |
| Main Hydraulic Valve | Rexroth(BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitbale Drum | Model GSP1400 |
| Option | Cummins water-cooled diesel motor |
|
Model |
MAR-YQ30 Hydraulic Puller |
|
Maximum Traction Force (kN) |
30 |
|
Continuous Tractive Effort (kN) |
25 |
|
Maximum Pulling Speed (km/h) |
5 |
|
Bullwheel Bottom of Groove Diameter (mm) |
Φ300 |
|
Number of Bullwheel Grooves |
7 |
|
Maximum Diameter of Suitable Steel Rope (mm) |
Φ13 |
|
Maximum Through Connector Diameter (mm) |
Φ40 |
|
Engine Power / Speed (kW/rpm) |
31/2200 |
|
Dimensions (mm) |
3200× 1600× 2000 |
|
Weight (kg) |
1500 |
1. Our system offers stepless and adjustable traction force and speed, with an intuitive display for easy monitoring.
2. Users can preset the maximum traction force, and automatic overload protection is included for added safety.
3. We've integrated a pressure loss automatic braking function to ensure safe operation in the event of engine stall or system pressure loss.
4. With the automatic winding device for high steel wire rope, our system provides automatic rope arrangement and convenient loading and unloading, further streamlining operations.
Marshine Power is dedicated to facilitating transmission work worldwide with our comprehensive range of OEM products, all professionally manufactured to meet ISO 9001:2008 standards. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands.
With distribution in over 50 countries, our products are trusted by professionals in the industry. We offer customization options for specialized items such as emergency restoration towers and crossing structures, tailored to meet the unique requirements of each project. Additionally, our safety tools and accessories are available without minimum order quantity requirements, providing flexibility in procurement.
Whether you require assistance with technical issues or have specific product requirements, our team is ready to help. Please don't hesitate to reach out to us for any inquiries or assistance you may need. Thank you for considering Marshine Power as your partner in transmission work.
