Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: LBGS
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10-US$500
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: TT,LC,WESTERN UNION
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Explosion-Proof |
Material: |
High Strength Aluminum Alloy |
Weight: |
10-75kg |
Usage: |
Power Transformer |
Product Name: |
Tripod Gin Pole |
Cross Section (mm): |
120 |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Day |
Package Size: |
40.00cm * 30.00cm * 20.00cm |
Package Gross Weight: |
10.000kg |
Type: |
Gin Poles |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Explosion-Proof |
Material: |
High Strength Aluminum Alloy |
Weight: |
10-75kg |
Usage: |
Power Transformer |
Product Name: |
Tripod Gin Pole |
Cross Section (mm): |
120 |
Transport Package: |
Carton Box |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Day |
Package Size: |
40.00cm * 30.00cm * 20.00cm |
Package Gross Weight: |
10.000kg |
Type: |
Gin Poles |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

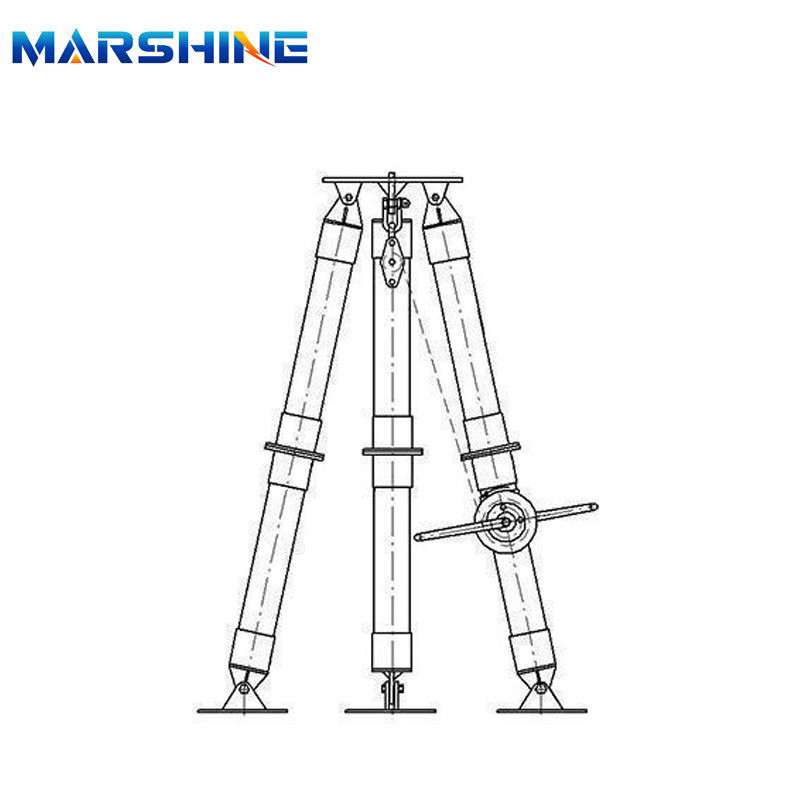

Electric Power Stringing Equipment Aluminum Tripod Gin Pole with Manual Winch
Uses: For small pole erection in line construction
Notes:
1. The maximum output force of the manual winch is 5 kN
2. Use high strength aluminum alloy tube as main materials, steel parts are galvanized.
3. The safety factor is 2.5
Technical Parameters
| Item number | Model | Length (m) | Base stroke (m) | Allowable vertical load (kN) | Cross section (mm) | Weight (kg/m) |
| 03451 | LBGS120-7 | 7 | 4 | 30 | φ120 | 8 |
| 03452 | LBGS120-9 | 9 | 4.8 | 22 | φ120 | 8 |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller, wire rope pulley block, hoisting tackle, Wire rope gripper, Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
