Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: LBNX
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$1000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: TT,LC,WESTERN UNION
Supply Ability: 200 CONTAINER/YEAR
Usage Of The Item: |
Power Transformer |
Shape Of The Item: |
Square |
Color: |
Customer Requirement |
Applicatiable Situation: |
Transmission And Distribution Line Engineering |
Safety Factor: |
2.4K |
Transport Package: |
Carton Box Or Customized |
Specification: |
10-80kg |
HS Code: |
8467890000 |
Supply Ability: |
40PCS/Day |
Type: |
Gin Pole |
Certification: |
CE, ISO |
Customized: |
Customer Requirement |
Condition: |
Brand New |
Feature Of The Item: |
Explosion-Proof |
Usage Of The Item: |
Power Transformer |
Shape Of The Item: |
Square |
Color: |
Customer Requirement |
Applicatiable Situation: |
Transmission And Distribution Line Engineering |
Safety Factor: |
2.4K |
Transport Package: |
Carton Box Or Customized |
Specification: |
10-80kg |
HS Code: |
8467890000 |
Supply Ability: |
40PCS/Day |
Type: |
Gin Pole |
Certification: |
CE, ISO |
Customized: |
Customer Requirement |
Condition: |
Brand New |
Feature Of The Item: |
Explosion-Proof |

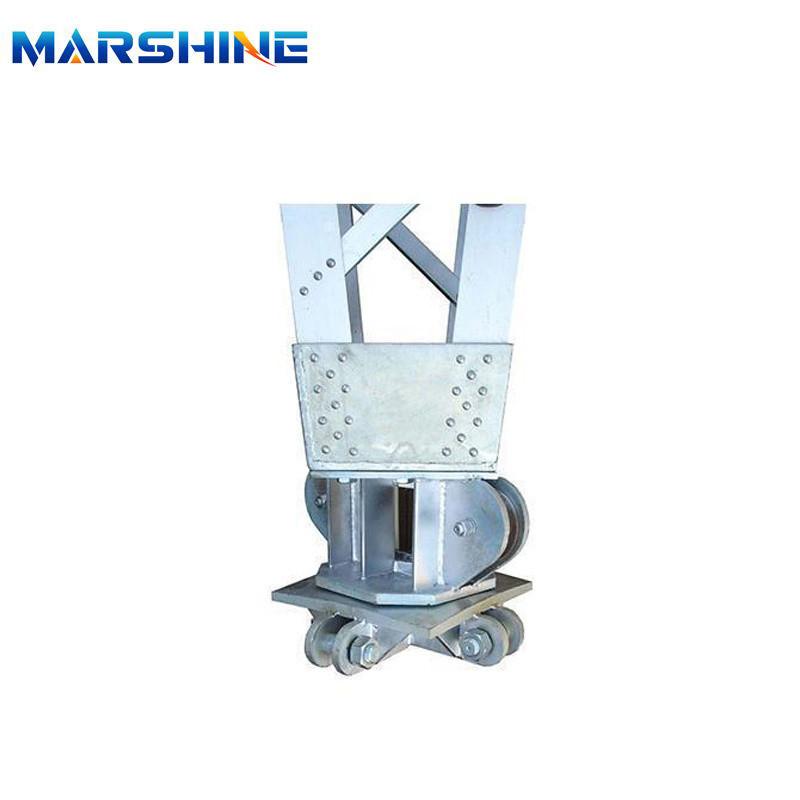

High Strength Stringing Equipment Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Uses:To construct and install towers and poles for transmission and distribution construction.
Notes:
1. Our equipment is primarily made from high-strength angle aluminum alloy, with galvanized steel parts.
2. We maintain a safety factor of 2.5 for all our products.
3. Models labeled with "A" are universal, while those marked with "B" indicate reinforced versions.
Detailed Data
| Item number | Model | Length | Allowable axial load | Cross section | Weight | Remarks |
| (m) | (kN) | (mm) | (kg/m) | |||
| 03511 | LBNX500-14A | 14 | 75 | 500 | 18 | Double pulley, 2sets waist loop |
| 03512 | LBNX500-15A | 15 | 70 | |||
| 03513 | LBNX500-16A | 16 | 64 | |||
| 03514 | LBNX500-17A | 17 | 57 | |||
| 03515 | LBNX500-18A | 18 | 50 | |||
| 03516 | LBNX500-19A | 19 | 45 | |||
| 03517 | LBNX500-20A | 20 | 41 | |||
| 03518 | LBNX500-21A | 21 | 37 | |||
| 03519 | LBNX500-22A | 22 | 34 | |||
| 03521 | LBNX500-17B | 17 | 88 | 500 | 22 | Double pulley, 2sets waist loop Strengthened type |
| 03522 | LBNX500-18B | 18 | 77 | |||
| 03523 | LBNX500-19B | 19 | 70 | |||
| 03524 | LBNX500-20B | 20 | 65 | |||
| 03525 | LBNX500-21B | 21 | 60 | |||
| 03526 | LBNX500-22B | 22 | 56 | |||
| 03527 | LBNX500-23B | 23 | 52 | |||
| 03528 | LBNX500-24B | 24 | 47 | |||
| 03529 | LBNX500-25B | 25 | 42 | |||
| 03531 | LBNX600-17A | 17 | 75 | 600 | 20 | Double pulley, 2sets waist loop |
| 03532 | LBNX600-18A | 18 | 70 | |||
| 03533 | LBNX600-19A | 19 | 65 | |||
| 03534 | LBNX600-20A | 20 | 60 | |||
| 03535 | LBNX600-21A | 21 | 55 | |||
| 03536 | LBNX600-22A | 22 | 49 | |||
| 03537 | LBNX600-23A | 23 | 45 | |||
| 03538 | LBNX600-24A | 24 | 41 | |||
| 03539 | LBNX600-25A | 25 | 38 | |||
| 03541 | LBNX600-17B | 17 | 119 | 600 | 24 | Double pulley, 2sets waist loop Strengthened type |
| 03542 | LBNX600-18B | 18 | 111 | |||
| 03543 | LBNX600-19B | 19 | 104 | |||
| 03544 | LBNX600-20B | 20 | 94 | |||
| 03545 | LBNX600-21B | 21 | 85 | |||
| 03546 | LBNX600-22B | 22 | 76 | |||
| 03547 | LBNX600-23B | 23 | 70 | |||
| 03548 | LBNX600-24B | 24 | 64 | |||
| 03549 | LBNX600-25B | 25 | 58 |
For transmission support needs, Marshine Power offers a comprehensive range of OEM equipment, including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks and Hoisting Tackles, Wire Rope Grippers, and Cable Reel Spools and Stands. All products are manufactured to meet ISO 9001:2008 standards and are distributed globally to over 50 countries. We provide customization options for items like the emergency restoration towers and crossing structures, and our safety tools and accessories have no minimum order quantity requirement. Whether you require assistance with technical issues or product specifications, feel free to contact us. Thank you for considering Marshine Power.
