Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: LBNX
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$500-US$2000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Usage: |
Power Transformer |
Shape: |
Square |
Color: |
Sliver |
Application: |
Transmission And Distribution Line Engineering |
Safety Factor: |
2.5K |
Material: |
Aluminum Allory |
Function: |
Tower Erection |
Transport Package: |
Carton Box |
Specification: |
10.5-75kg |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Day |
Type: |
Gin Poles |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Explosion-Proof |
Usage: |
Power Transformer |
Shape: |
Square |
Color: |
Sliver |
Application: |
Transmission And Distribution Line Engineering |
Safety Factor: |
2.5K |
Material: |
Aluminum Allory |
Function: |
Tower Erection |
Transport Package: |
Carton Box |
Specification: |
10.5-75kg |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Day |
Type: |
Gin Poles |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Explosion-Proof |

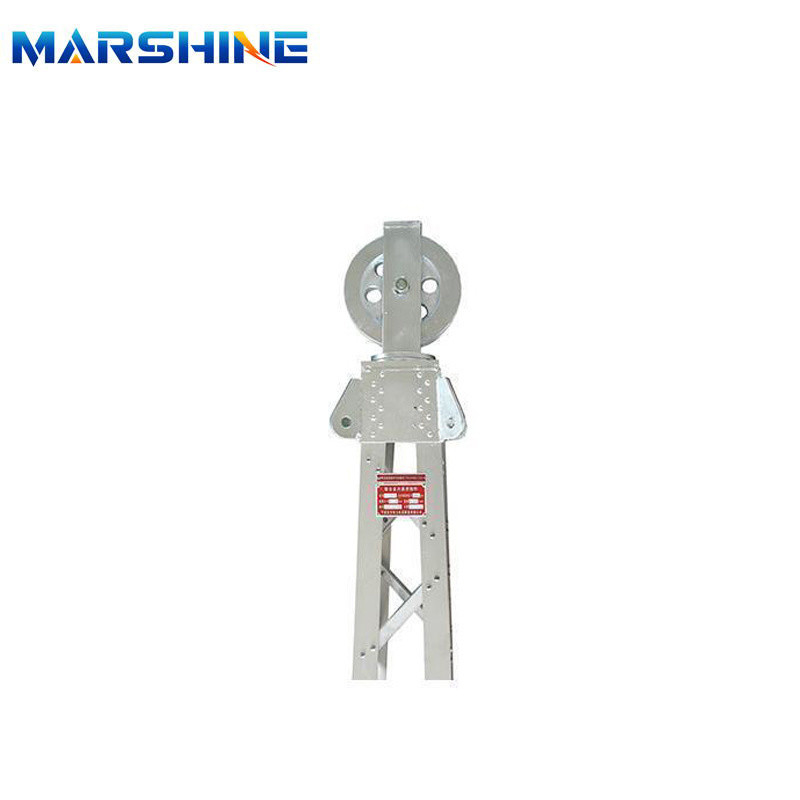

Aluminum Gin Pole Erection Tool for Transmission Line Construction
Uses: For the assembly and erection of towers and poles in transmission and distribution construction projects.
Notes:
1. Constructed primarily from high-strength angle aluminum alloy, with galvanized steel components.
2. Maintains a safety factor of 2.5.
3. Comes equipped with two sets of waist loops for added safety.
Detailed Data
| Item number | Model | Length | Allowable axial load | Cross section | Weight | Remarks |
| (m) | (kN) | (mm) | (kg/m) | |||
| 03119 | LBNX250-8 | 8 | 37 | 250 | 10.5 | Single pulley, 2sets waist loop |
| 03120 | LBNX250-9 | 9 | 29 | |||
| 03121 | LBNX250-10 | 10 | 23 | |||
| 03122 | LBNX250-11 | 11 | 19 | |||
| 03123 | LBNX250-12 | 12 | 16 | |||
| 03124 | LBNX250-13 | 13 | 13 | |||
| 03125 | LBNX250-14 | 14 | 11 | |||
| 03126 | LBNX250-15 | 15 | 10 | |||
| 03131 | LBNX300-11 | 11 | 29 | 300 | 11 | Double pulley, 2sets waist loop |
| 03132 | LBNX300-12 | 12 | 24 | |||
| 03133 | LBNX300-13 | 13 | 22 | |||
| 03134 | LBNX300-14 | 14 | 18 | |||
| 03135 | LBNX300-15 | 15 | 16 | |||
| 03136 | LBNX300-16 | 16 | 13 | |||
| 03137 | LBNX300-17 | 17 | 12 | |||
| 03138 | LBNX300-18 | 18 | 11 | |||
| 03141 | LBNX350-11 | 11 | 40 | 350 | 13.5 | Double pulley, 2sets waist loop |
| 03142 | LBNX350-12 | 12 | 33 | |||
| 03143 | LBNX350-13 | 13 | 30 | |||
| 03144 | LBNX350-14 | 14 | 24 | |||
| 03145 | LBNX350-15 | 15 | 21 | |||
| 03146 | LBNX350-16 | 16 | 19 | |||
| 03147 | LBNX350-17 | 17 | 17 | |||
| 03148 | LBNX350-18 | 18 | 15 | |||
| 03151 | LBNX400-12 | 12 | 43 | 400 | 14.6 | Double pulley, 2sets waist loop |
| 03152 | LBNX400-13 | 13 | 38 | |||
| 03153 | LBNX400-14 | 14 | 32 | |||
| 03154 | LBNX400-15 | 15 | 28 | |||
| 03155 | LBNX400-16 | 16 | 25 | |||
| 03156 | LBNX400-17 | 17 | 22 | |||
| 03157 | LBNX400-18 | 18 | 19 | |||
| 03158 | LBNX400-19 | 19 | 16 | |||
| 03159 | LBNX400-20 | 20 | 14 |
Marshine Power specializes in providing essential equipment for transmission projects. Our range includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. All our products are OEM and manufactured to the highest standards under ISO 9001:2008 certification. Distributed in over 50 countries worldwide, our reputation for reliability precedes us.
We offer customizable solutions for specialized needs such as emergency restoration towers and crossing structures. Additionally, our safety tools and accessories have no minimum order quantity requirement, ensuring you have access to essential equipment when needed. Whether you require technical support or product recommendations, feel free to reach out to us. We're here to assist you. Thank you.
