Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: MAR-YZ2 X 40B
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10000-US$100000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X40/1X80 |
Weight: |
4850 |
Bottom Of Groove Diameter: |
1500 |
Engine Power/Speed: |
51/2500 |
Dimensions: |
4.5X2.2X2.8 |
Continuous Tension: |
2X35/1X70 |
Max Speed Back: |
2X1.5 |
Transport Package: |
Carton Box |
Specification: |
1500 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
450.00cm * 220.00cm * 280.00cm |
Package Gross Weight: |
4850.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Fire/Flame Retardant |
Max Tension: |
2X40/1X80 |
Weight: |
4850 |
Bottom Of Groove Diameter: |
1500 |
Engine Power/Speed: |
51/2500 |
Dimensions: |
4.5X2.2X2.8 |
Continuous Tension: |
2X35/1X70 |
Max Speed Back: |
2X1.5 |
Transport Package: |
Carton Box |
Specification: |
1500 |
HS Code: |
8467890000 |
Supply Ability: |
100 Sets Per Month |
Package Size: |
450.00cm * 220.00cm * 280.00cm |
Package Gross Weight: |
4850.000kg |
Type: |
Hydraulic Tensioner |
Certification: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Currency: |
US$ |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Overhead Line Construction Tools Hydraulic Puller Tensioner Transmission Line Stringing Equipment For Pulling Tensioning Conductor

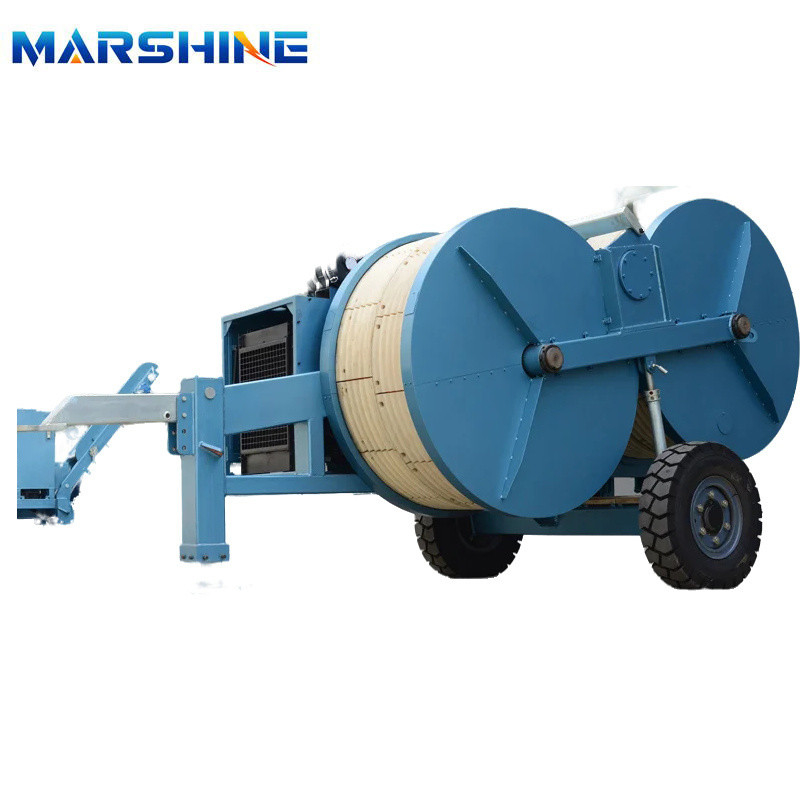

Our MAR-YZ2×40B Hydraulic Tensioner is engineered to facilitate the stringing of diverse conductors and earth wires. It offers the flexibility of either one-pull-one or one-pull-two configurations.
Featuring an infinitely variable tension control system, the MAR-YZ2×40B ensures precise tension adjustment, enabling constant-tension conductor stringing operations. In the event of hydraulic failure, the built-in spring-applied hydraulically released multi-plate brake engages automatically, enhancing operational safety.
Moreover, our product is designed with two sets of hydraulic power output interfaces, allowing seamless connection to hydraulic conductor reel stands. The bullwheel is specially lined with wear-resistant MC nylon material, ensuring durability and reliable performance.
Applications: Ideal for stringing various conductors and earth wires, the MAR-YZ2×40B is suitable for stringing either one conductor or two bundle conductors.
Feature:
1. The bull wheel is equipped with wear-resistant MC nylon lining segments for enhanced durability.
2. Enjoy precise tension control with our infinitely variable tension system, enabling consistent conductor stringing.
3. Safety is paramount with our spring-applied hydraulic release brake, automatically engaging in the event of hydraulic failure.
4. Easily connect to hydraulic conductor reel stands via the two sets of attached hydraulic power output interfaces.
Essential Parameters
| Model | MAR-YZ2*40B Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 40 or 1× 80 |
| Continuous Tension (kN) | 2× 35 or 1× 70 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1500 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 40 or 1× 80 |
| Maximum Speedback (km/h) | 2× 1.5 |
| Maximum Diameter of Suitable Conductor (mm) | Φ40 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4500 × 2200 × 2800 |
| Weight (kg) | 4850 |
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth |
| Reducer | RR (Italian) |
| Main Hydraulic Valve | Rexroth |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Option | If use Deutz (Germany) diesel engine,the model is SA-YZ2×40A,item number:07191 |
| Others | According to customer requirement, our SA-YZ2×40B Hydraulic Tensioner can configure mobile control consoles. It is easy for one operator to control 2 machines simultaneously, which facilitates 4-conductor-stringing operation using two machines. The item number of control consoles is 07193. |
Marshine Power is dedicated to providing essential equipment for transmission work. Our range includes Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. These products are OEM and manufactured to the highest standards, complying with ISO 9001:2008 regulations.
With a global presence spanning over 50 countries, we ensure reliable solutions for transmission projects. Customization options are available for items like emergency restoration towers and crossing structures. Additionally, our safety tools and accessories have no minimum order quantity requirements.
Whether you need technical support or have specific product requirements, feel free to reach out to us. We are here to assist you with any tech issues or product needs. Thank you for considering Marshine Power as your partner in transmission projects.
