Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: JHW-1000
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10-US$200
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: TT,LC,WESTERN UNION
Supply Ability: 200 CONTAINER/YEAR
Rated Load: |
1~3t |
Material: |
Steel |
Max Length(mm): |
1210-2000 |
Min Length(mm): |
410-510 |
Transport Package: |
Carton Box, Or As Your Requirement |
Specification: |
3.4, 4.5, 6.5KG |
HS Code: |
8467890000 |
Supply Ability: |
2000PCS/Day |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Apply: |
Tightening |
Rated Load: |
1~3t |
Material: |
Steel |
Max Length(mm): |
1210-2000 |
Min Length(mm): |
410-510 |
Transport Package: |
Carton Box, Or As Your Requirement |
Specification: |
3.4, 4.5, 6.5KG |
HS Code: |
8467890000 |
Supply Ability: |
2000PCS/Day |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Apply: |
Tightening |

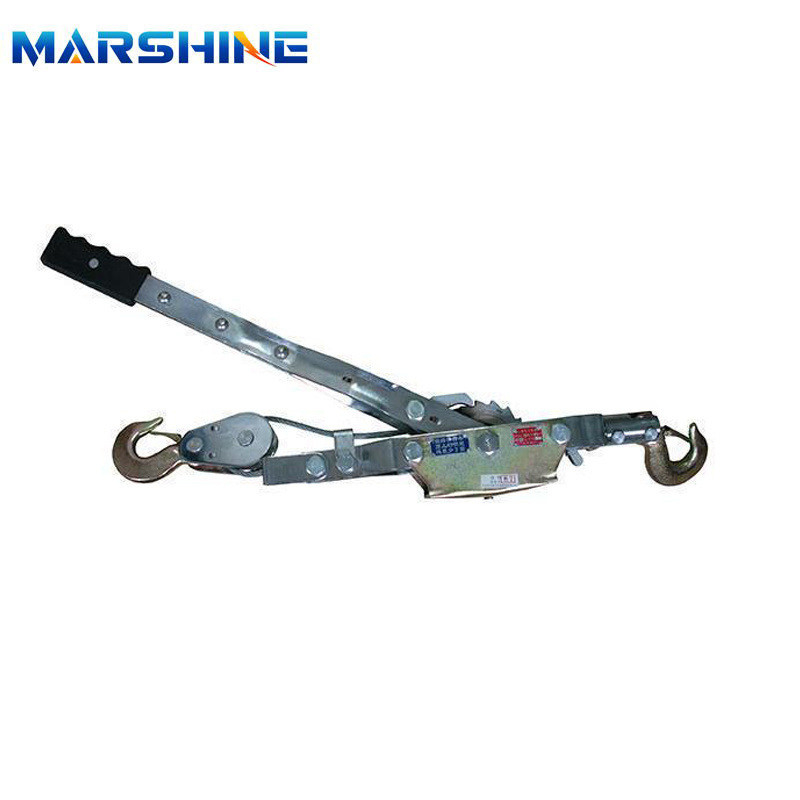

Ratchet Puller Basic Construction Tools Hand Cable Puller For Tightening Wire
Features:
1. It has small size and light weight and convenient collection and easily carried. Its ability on operate can play its role even in a narrow place.
2. The ratchet puller is made by high quality of Taiwan galvanized wire rope and aluminum alloy pressure head. It's strong and wearable, not fall off.
3. It is made by high tensile steel plate and the structure is used in high quality integral structure of carbon steel, then matching with the high density gear, which can rotate 360 degrees direction. The controlling keying can forward or backward turn. It is attached automatic braking device to save effort. It is suitable for electric power, telecom high homework. It is powerful and not easy to break.
4. With high tensile steel hook with latch, the strength gets greatly improved.
5. Material: High Tensile Carbon Steel
6. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
7. Finish: color zinc plated.
Main Specification
| Model Type | Rated Load(KN) | Max Length(mm) | Min Length(mm) | Weight(kg) |
| JHW-1000 | 10 | 1210 | 410 | 3.2 |
| JHW-1500 | 15 | 1500 | 480 | 4.2 |
| JHW-1500A | 15 | 2000 | 480 | 4.7 |
| JHW-2000 | 20 | 1500 | 480 | 4.8 |
| JHW-3000 | 30 | 1500 | 510 | 5.2 |
