Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: HS-3A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$1000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Minimum Distance Between Hooks(mm): |
280-410 |
Number Of Load Chain: |
1 |
Product Weight With Standard Chain (Kg): |
10-20 |
Weight Of 1m Chain(Kg): |
1.7 |
Transport Package: |
Industry Packing |
Specification: |
27kg Etc. |
HS Code: |
8467890000 |
Supply Ability: |
1000PCS/Day |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Rated Load (Kn): |
5-20 |
Minimum Distance Between Hooks(mm): |
280-410 |
Number Of Load Chain: |
1 |
Product Weight With Standard Chain (Kg): |
10-20 |
Weight Of 1m Chain(Kg): |
1.7 |
Transport Package: |
Industry Packing |
Specification: |
27kg Etc. |
HS Code: |
8467890000 |
Supply Ability: |
1000PCS/Day |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Non-Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Rated Load (Kn): |
5-20 |

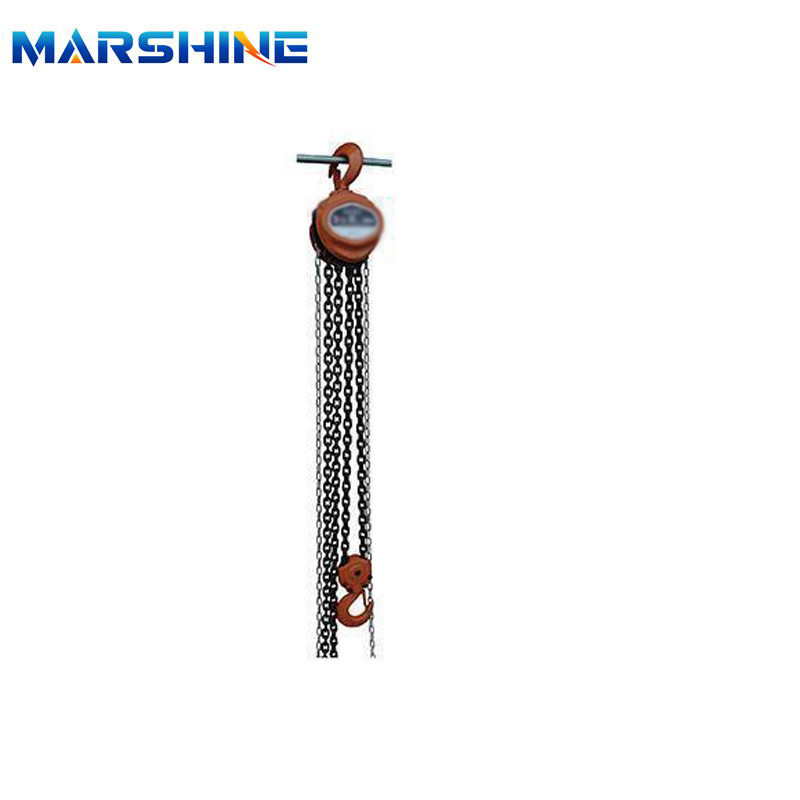

Chain Pulley Block Manual Chain Hoist Lifting Hoist Hand Chain Winch
Applications: Ideal for lifting operations and traction tasks, as well as tightening steel-stranded wire, aluminum-stranded wire, and various other types of wires.
Features: Offers substantial expansion capability, effectively reducing the amount of effort required for operation.
Technical Parameters
| Item number | Length of chain 2.5m(standard) | 14281 | 14291 | 14301 | 14311 |
| Length of chain 3m | 14282 | 14292 | 14302 | 14312 | |
| Length of chain 4m | 14283 | 14293 | 14303 | 14313 | |
| Length of chain5m | 14284 | 14294 | 14304 | 14314 | |
| Length of chain 6m | 14285 | 14295 | 14305 | 14315 | |
| Length of chain 8m | 14286 | 14296 | 14306 | 14316 | |
| Length of chain 10m | 14287 | 14297 | 14307 | 14317 | |
| Length of chain 12m | 14288 | 14298 | 14308 | 14318 | |
| Rated load (kN) | 5 | 10 | 15 | 20 | |
| Minimum distance between hooks(mm) | 280 | 320 | 390 | 410 | |
| Number of load chain | 1 | 1 | 1 | 1 | |
| Product weight with standard chain (kg) | 10 | 12 | 19 | 20 | |
| Weight of 1m chain(kg) | 1.7 | 1.7 | 2.3 | 2.3 | |
| Item number | Length of chain 3m(standard) | 14321 | 14331 | 14341 | 14351 |
| Length of chain 4m | 14322 | 14332 | 14342 | 14352 | |
| Length of chain5m | 14323 | 14333 | 14343 | 14353 | |
| Length of chain 6m | 14324 | 14334 | 14344 | 14354 | |
| Length of chain 8m | 14325 | 14335 | 14345 | 15345 | |
| Length of chain 10m | 14326 | 14336 | 14346 | 14356 | |
| Length of chain 12m | 14327 | 14337 | 14347 | 14357 | |
| Model | HS-3A | HS-5A | HS-10A | HS-20A | |
| Rated load (kN) | 30 | 50 | 100 | 200 | |
| Minimum distance between hooks (mm) | 485 | 600 | 820 | 1040 | |
| Number of load chain | 2 | 2 | 4 | 8 | |
| Product weight with standard chain (kg) | 27 | 45.5 | 83 | 193 | |
| Weight of 1m chain(kg) | 3.7 | 5.6 | 9.7 | 19.4 | |
Marshine Power is dedicated to supporting transmission work with a wide range of OEM products, all professionally manufactured to meet ISO 9001:2008 standards. Our offerings include Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools, and Stands. Trusted by customers in over 50 countries, our products ensure reliability and efficiency.
We understand the diverse needs of our clients, offering customization options for items like emergency restoration towers and crossing structures. Additionally, our safety tools and accessories are available without minimum order quantities, providing flexibility to our customers.
Whether you require technical assistance or have specific product requirements, our team is here to help. Please feel free to reach out to us for any inquiries or support needs. Thank you for considering Marshine Power as your partner in transmission solutions.
