Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: HSS432
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$5000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Standard Length Of Steel Wire Rope (M): |
20 |
Net Weight (Kg): |
6.8-25 |
Packing Size (mm): |
420X106X250 |
Product Name: |
Portable Tightening Tool |
Transport Package: |
Industry Packing |
Specification: |
6.8, 13, 25KG |
HS Code: |
8467890000 |
Supply Ability: |
1000PCS/Day |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Rated Lifting Weight (Kn): |
8-32 |
Application: |
Pulling And Tensioning |
Standard Length Of Steel Wire Rope (M): |
20 |
Net Weight (Kg): |
6.8-25 |
Packing Size (mm): |
420X106X250 |
Product Name: |
Portable Tightening Tool |
Transport Package: |
Industry Packing |
Specification: |
6.8, 13, 25KG |
HS Code: |
8467890000 |
Supply Ability: |
1000PCS/Day |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Antimagnetic |
Rated Lifting Weight (Kn): |
8-32 |
Application: |
Pulling And Tensioning |

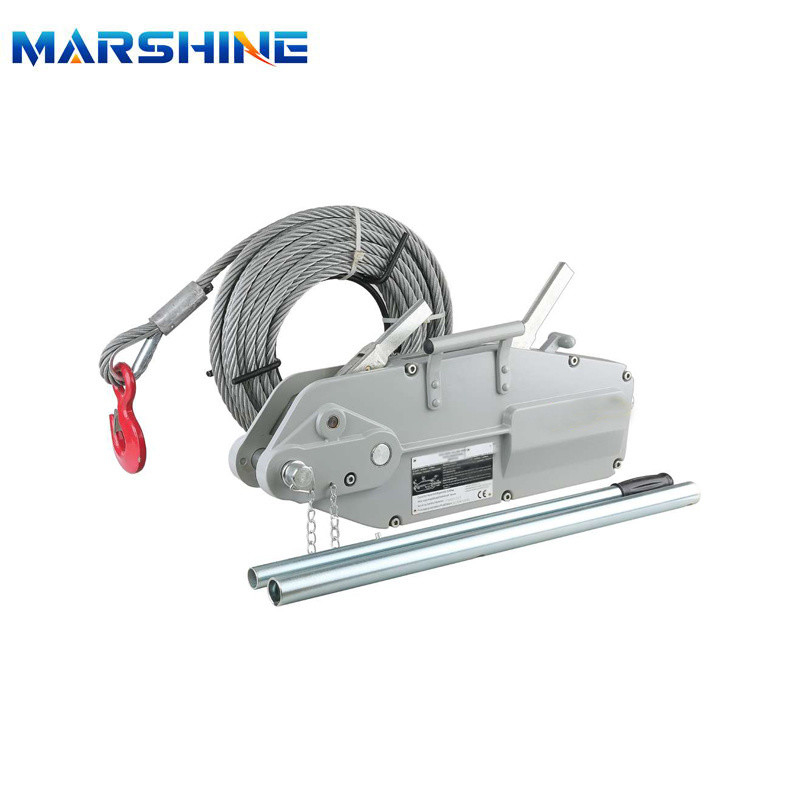

Introducing our newly produced wire rope pulling hoist, a cutting-edge innovation designed for optimal efficiency, safety, and durability in operation. This state-of-the-art hoist excels in three key functions: lifting, pulling, and tensioning, making it a versatile solution for various applications. Unlike traditional chain-type pulling hoists, it offers broader utility and superior performance.
Tailored to accommodate different rope lengths, this hoist facilitates both linear and nonlinear operations for lifting, pulling, and tensioning tasks. By incorporating specialized attachments such as fixed or movable pulley blocks, it not only enhances operational flexibility by enabling convenient load movement and position adjustments but also boosts machine capacity exponentially.
For heavy-duty operations, the hoist's capabilities can be further amplified by deploying multiple units in parallel. This ensures seamless handling of substantial loads while maintaining operational efficiency and safety standards.
Main Specifications
| Item Number | 14183 | 14184 | 14185 |
| Model | HSS408 | HSS416 | HSS432 |
| Rated Lifting Weight (kN) | 8 | 16 | 32 |
| One Stroke (mm) | ≥40 | ≥40 | ≥16 |
| Diameter of Steel Wire Rope (mm) | Φ8 | Φ11.6 | Φ16 |
| Standard Length of Steel Wire Rope (m) | 20 | 20 | 20 |
| Net Weight (kg) | 6.8 | 13 | 25 |
| Pull Force to Lift Rated Load (N) | ≤343 | ≤400 | ≤441 |
| Packing Size (mm) | 420×106×250 | 530×126×315 | 660×160×360 |
